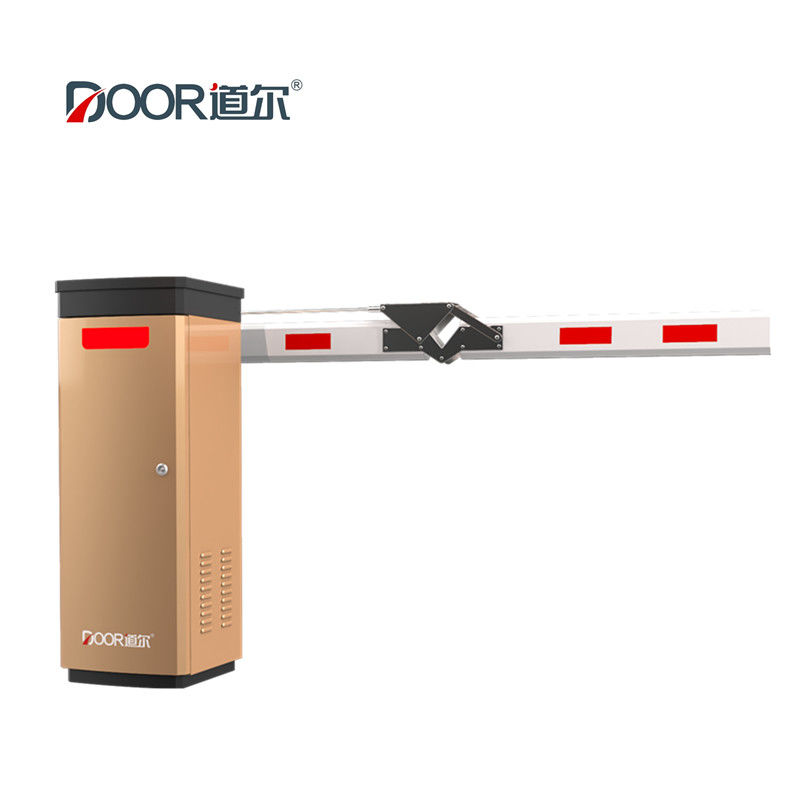

Boom Barrier Gate

Basic Information

Place of Origin:	China
Brand Name:	DOOR
Certification:	CE / IS09001
Model Number:	DR.DZ.02

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Cartons
Delivery Time:	5-7 working days
Payment Terms:	T/T
Supply Ability:	3000 sets per month

Get Best Price Contact Now

Boom Length::	Max 6M (Customized)	Level:	IP55
Color:	Silver-black(other Colors Can Be Customized)	Warranty:	1 Year
Application:	Parking Lot / Entry&Exit	UP/Down Speed::	1s,3s,6s
Voltage:	AC110V/AC220V	Length Type:	Straight / Folding / Fence
Dimensions:	L340W305H1050mm	Motor Wattage:	120W
Arm To Ground:	0.85M	Arm Opening Time:	6s, 3s, 1s Optional
Straight Arm Length:	Straight Arm:＜6m	Folding Arm Length:	≤ 4.5m
Two-fence Arm Length:	≤ 4.5m	Three-fence Arm Length:	＜ 4m
Working Temperature:	-20℃-+65℃
Highlight:	6M boom barrier gate , IP55 rated parking lot barrier , car barrier gate with warranty

Optimized Description:

Manual Release & Reset: Features an advanced manual release mechanism for quick arm operation during power failure. Automatically resets to standard operation upon power restoration.
Smooth Boom Operation: Boom movement is powered by a motor-driven crankshaft transmission system, ensuring exceptionally smooth and reliable operation.
Remote Control: Supports remote control operation for raising and lowering the barrier arm.
Safety Features:
- Auto-Reverse: The boom automatically reverses direction if it encounters an obstruction during descent.
- Auto-Stop (Optional): Offers an optional mode where the boom stops immediately upon detecting an obstruction.
Obstruction Detection Interfaces:
- Infrared Photocells Interface: Ready for integration with infrared safety beams (photocell device required).
- Loop Detector Interface: Ready for integration with vehicle detection loops (loop detector required). Enables:
  - Obstruction avoidance (prevents boom from hitting vehicles).
  - Automatic lowering of the boom after a vehicle passes through.
Communication & Control:
- Integrated RS485: Provides an industrial-standard RS485 communication interface for computer-controlled operation (raise, lower, stop).
- Traffic Light Interface: Includes a dedicated interface for connecting and synchronizing with traffic signal lights.
Advanced Counter & Auto-Closing Logic:
- Integrated Counter: Tracks and stores the number of valid opening signals received.
- Auto-Deduct & Lower: Automatically deducts a count upon confirmed vehicle passage (via loop detector) and lowers the boom afterward, significantly improving traffic flow efficiency.
- Auto-Closing Function: Works in coordination with the counter:
  - If the number of vehicles passed is less than the stored opening signal count, the boom initiates a countdown to automatic lowering.
  - The countdown timer is reset upon receiving a new "raise" signal or a vehicle detection signal from the loop detector.
