SUS304 Stainless Steel Facial Recognition Turnstile IP65

Basic Information

Place of Origin:	China
Brand Name:	DOOR or OEM
Certification:	CE / IS09001
Model Number:	DRTD6653

Minimum Order Quantity:	2 sets
Price:	Negotiable
Packaging Details:	wooden carton
Delivery Time:	5-7 working days
Payment Terms:	T/T
Supply Ability:	2500 sets per month

Get Best Price Contact Now

Material:	SUS304 Brushed Stainless Steel, Top Cover 2.0mm, Whole Body 1.5mm	Suitable For:	Access Control, Entrance And Exit Control
Turnstile Material:	SUS304 Stainless	Top Cover Material:	SUS304 Stainless
Communication Interface:	RS485, TCP/IP Interface	Power Input:	AC100-240V; 50/60HZ
Swing Arm Available:	Acrylic/Stainless Steel	Driving Motor:	Servo Motor
Working Environment:	-25℃-+70℃	Pass Speed:	30-50p/m
Support System:	Face Recognition,ic/id Card,fingerprint	Motor:	Servo Motor
IR Sensor:	6 Pairs	IP Rating:	IP65
Voltage:	AC110V/AC220V±10% 50-60Hz	Operating Power:	Single Core 100w, Dual Core 200w
Mtbf:	5 Million Times	Size:	L1600W160H990mm
Method Of Position:	Use The Encoder To Make Sure The Swing Gate Position
Highlight:	SUS304 stainless steel turnstile , IP65 facial recognition turnstile , stainless steel access control turnstile

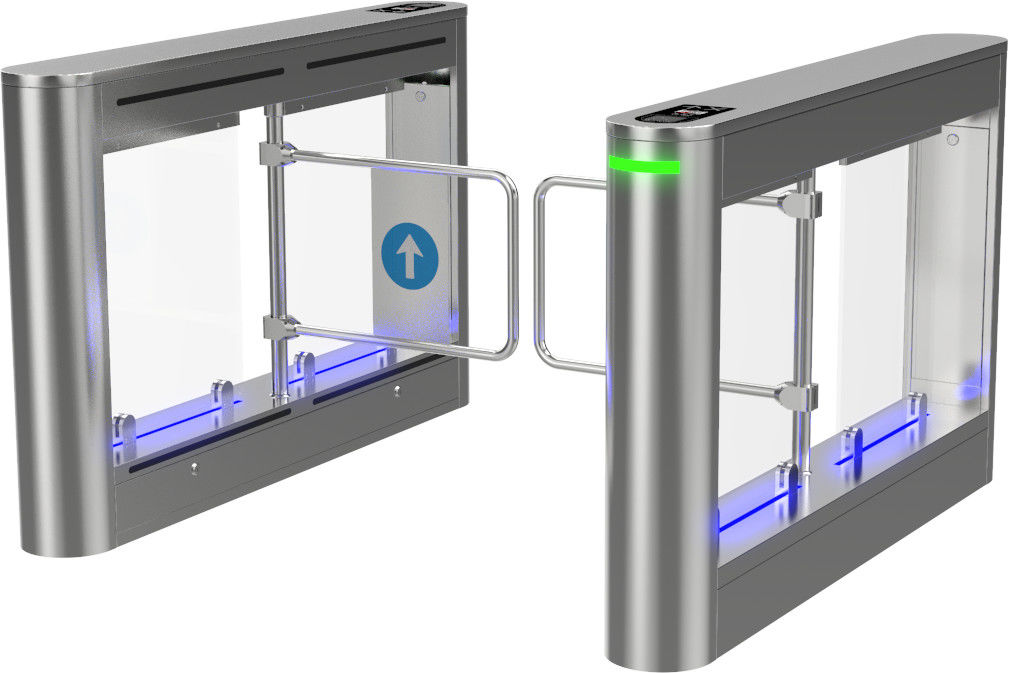

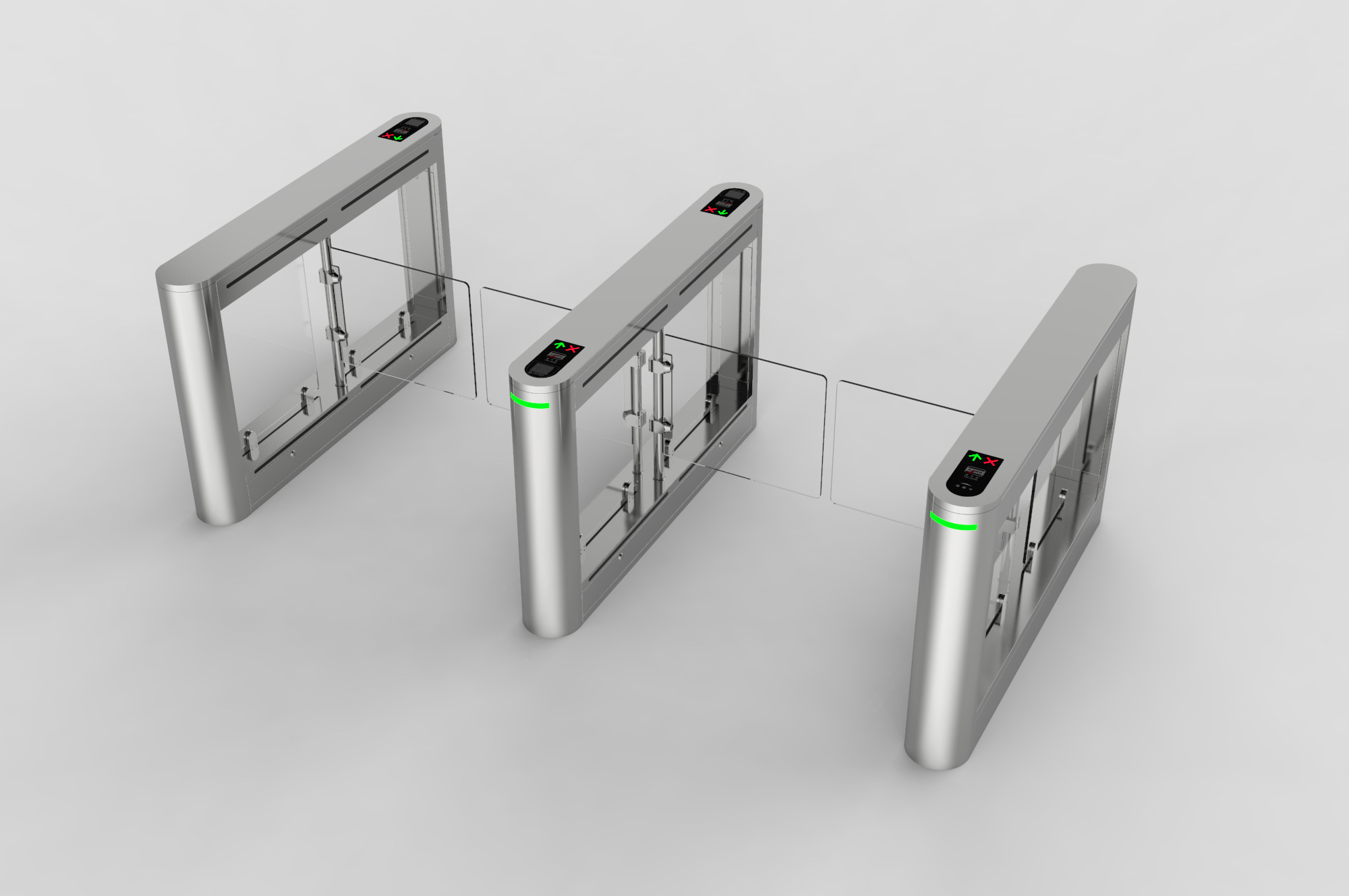

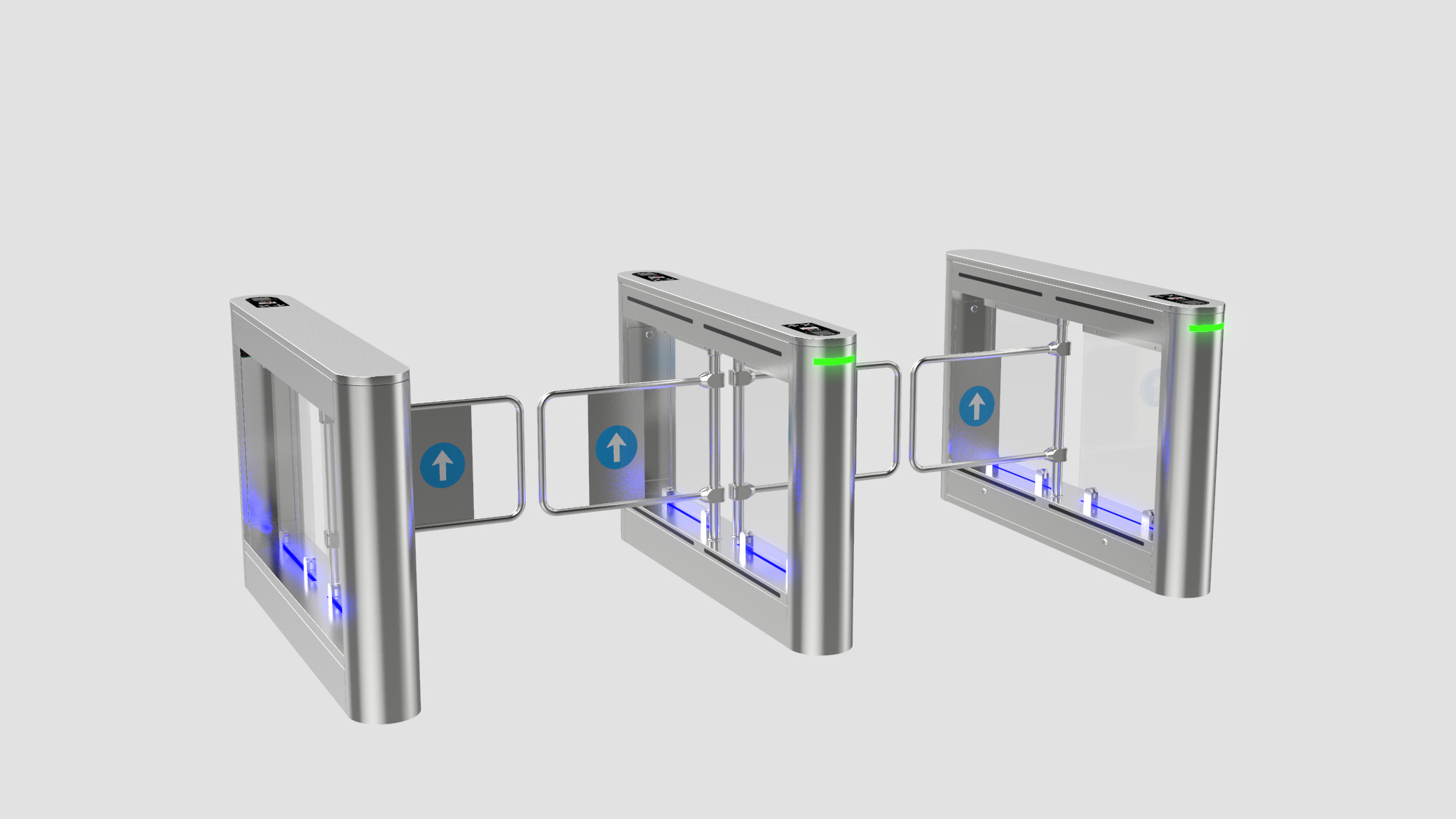

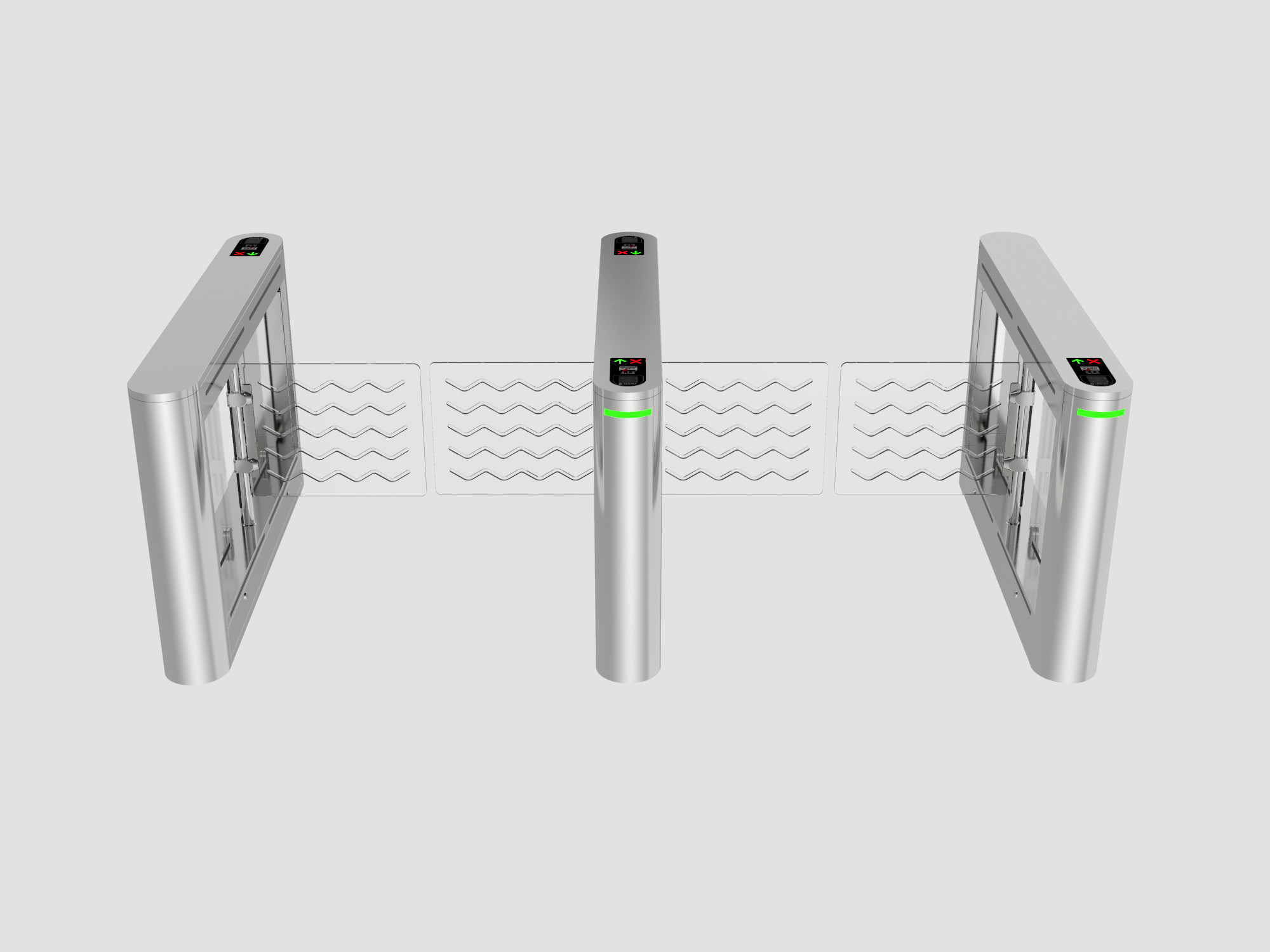

SUS304 Stainless Steel Facial Recognition Turnstile with IP65 Rating

Product Overview

Waist Height Facial Recognition Turnstile with waterproof swing arm and brushless motor technology.

Technical Specifications

Attribute	Value
Material	SUS304 brushed stainless steel, top cover 2.0mm, whole body 1.5mm
Suitable For	Access Control, Entrance And Exit Control
Communication Interface	RS485, TCP/IP interface
Power Input	AC100-240V; 50/60HZ
Swing arm available	Acrylic/Stainless steel
Driving Motor	Servo Motor
Working environment	-25℃-+70℃
Pass speed	30-50p/m
Support System	Face Recognition, IC/ID Card, Fingerprint
IR Sensor	6 pairs
IP Rating	IP65
Voltage	AC110V/AC220V±10% 50-60Hz
Operating Power	Single Core 100w, dual core 200w
MTBF	5 million times
Size	L1600W160H990mm
Method of position	Use the encoder to make sure the swing gate position

Key Features

Modern design with fast pass speed (30-50 persons per minute)
Slim machine structure saves installation space
6 pairs of military-grade infrared sensors with advanced algorithms for accurate detection
Multiple anti-clamping designs for maximum passenger safety
Optional widened lane for luggage and wheelchair access
Compatible with RS485, TCP/IP interfaces and all major access control systems

Advanced Functionality

Multiple passing modes: Controlled/Free/Forbidden
Automatic reset and self-recovery functions
Automatic adjustment for mechanical wear compensation
Built-in memory for person counting and passage tracking
Clear visual indicators for direction and passage status
Emergency fire button interfaces for automatic gate release

Integration Capabilities

Seamless third-party integration with industry-standard access control devices including IC/ID card readers, QR code scanners, and facial recognition terminals (recognition systems not included).

Customization Options

Minor customization
Drawing-based customization
Sample-based customization
Full customization available

Shipping fee and delivery date to be negotiated. Contact supplier for more details.
