40W 550mm Width Cards Reader Glass Sliding Turnstile

Basic Information

Place of Origin:	China
Brand Name:	DOOR or OEM
Certification:	CE / IS09001
Model Number:	DR.TD.6991

Minimum Order Quantity:	1 lane
Price:	Negotiable
Packaging Details:	wood carton
Delivery Time:	5-7 working days
Payment Terms:	T/T
Supply Ability:	2000 sets per month

Get Best Price Contact Now

Material:	Electroplating On Stainless SteelElectroplating On Stainless Steel	Suitable For:	Access Control, Entrance And Exit Control
Turnstile Material:	SUS304 Stainless	Communication Interface:	RS485
Power Supply:	AC110/AC220+/-10%	Swing Arm Available:	Acrylics Or Tempered Glass
Driving Motor:	Servo Motor	Opening Signal Input::	Dry Contact
Working Environment:	-20℃+60℃	Pass Speed:	30-50 Personal/min
Support System:	Face Recognition,ic/id Card,fingerprint	Motor:	Servo Motor MBCF 8million Times
Passage Width:	550mm-1100mm	IP Rating:	IP42
Mean Cycles Between Failure:	20 Million Times	Voltage:	AC110V/AC220V±10% 50-60Hz
Method Of Position:	Motor Driving	Mtbf:	≥8 Million Times
Size:	L1600×W140×H1000mm	Input Signal:	Dry Contact
Warranty:	1 Years
Highlight:	40W glass sliding turnstile , 550mm servo motor turnstile , 8M cycles speed gate turnstile

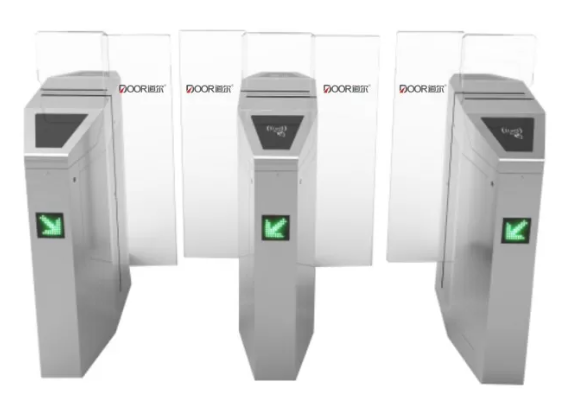

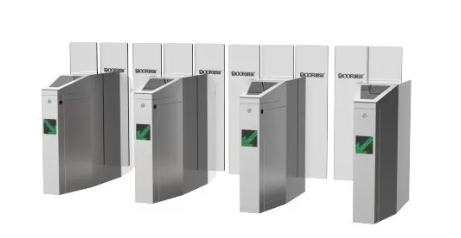

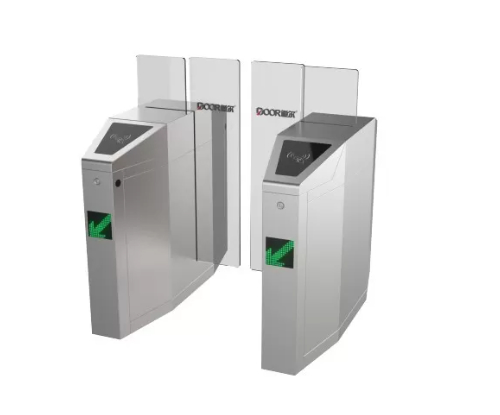

40W 550mm Width Cards Reader Glass Sliding Turnstile

Features:

Self-Diagnosis & Alarms: Automatically detects faults and provides alerts for easier maintenance and operation.
Unauthorized Entry Alert: Triggers an alarm when invalid access is attempted.
Anti-Collision Mechanism: The swing arm remains locked without a valid open signal.
Dual Anti-Pinch Protection (Infrared + Mechanical): Stops or reverses upon detecting obstacles with minimal force, accompanied by audible and visual warnings.
Auto-Reset Function: Cancels access permission if the user does not pass through within the preset time.
Universal Electrical Interface: Compatible with most card readers and supports remote management via computer software.
Smooth & Quiet Operation: Ensures low-noise performance and reliable motion.

Shenzhen Door Intelligent Control Technology Co., Ltd. is a leading Chinese manufacturer of pedestrian turnstiles and parking systems, with in-house hardware and software development capabilities. Established in 2005, the company was restructured in 2011 and went public in 2015.

DOOR takes pride in its pioneering role in developing China’s first successful License Plate Recognition (LPR) system. With a team of approximately 400 employees, including 160 R&D specialists and a 20-person customization unit, the company holds over 100 patents and software copyrights.

Guided by a customer-centric philosophy, DOOR is committed to delivering professional, responsible, and innovative solutions. The brand continues to expand its global distribution network, strengthening its presence worldwide.

Applications

Widely used for official or corporate buildings, university lab access points, industrial buildings, and hospital radiology departments.

Customization Options

Customized logo (Min. order: 2 pieces)
Customized packaging (Min. order: 2 pieces)
Graphic customization (Min. order: 2 pieces)

Supplier's Customization Ability

Minor customization
Drawing-based customization
Sample-based customization
Full customization

Shipping Information

Shipping fee and delivery date to be negotiated. Contact supplier for more details.
