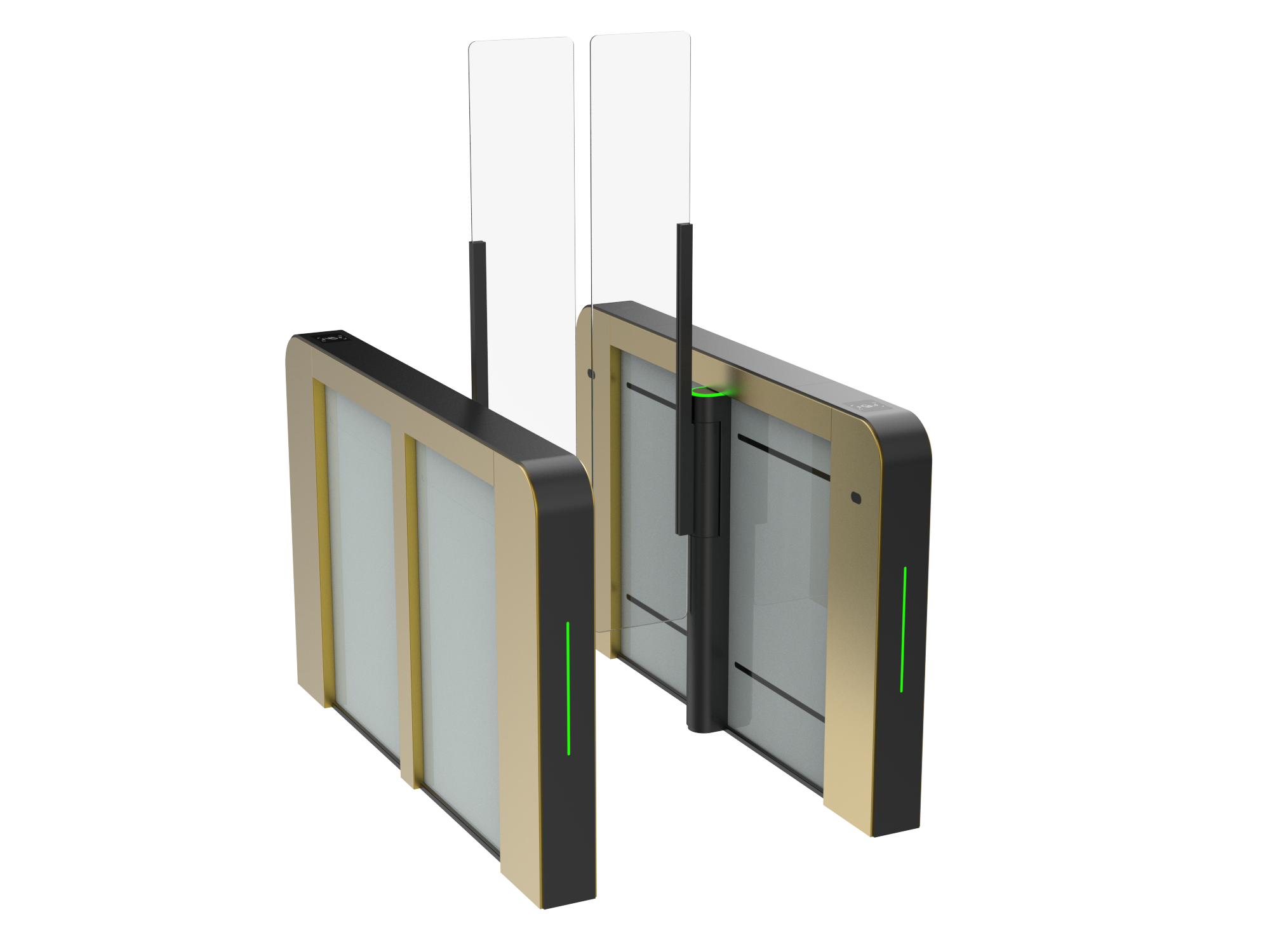

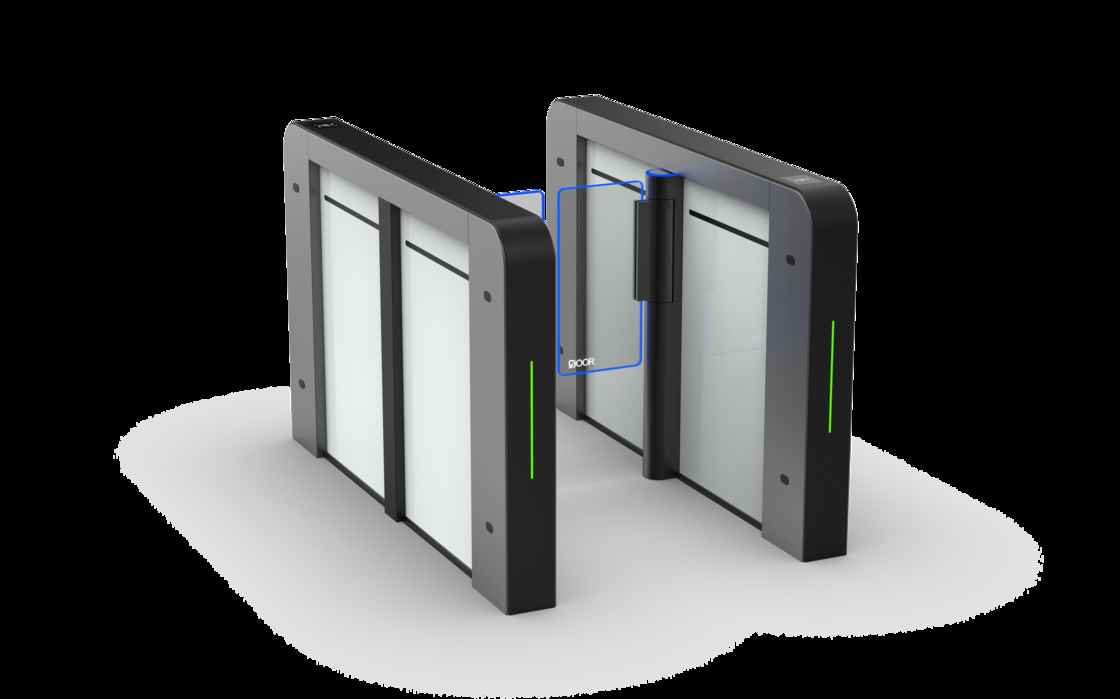

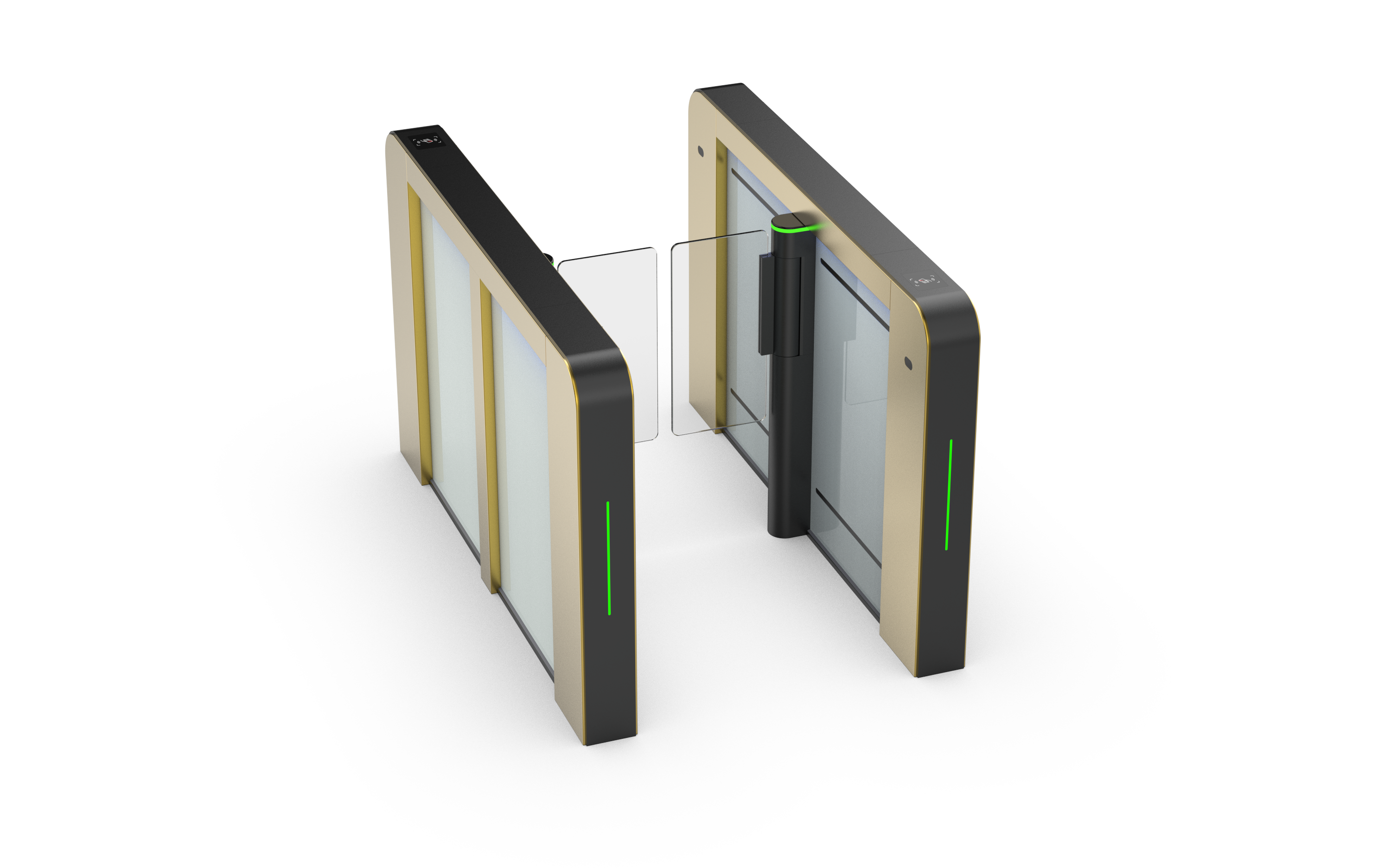

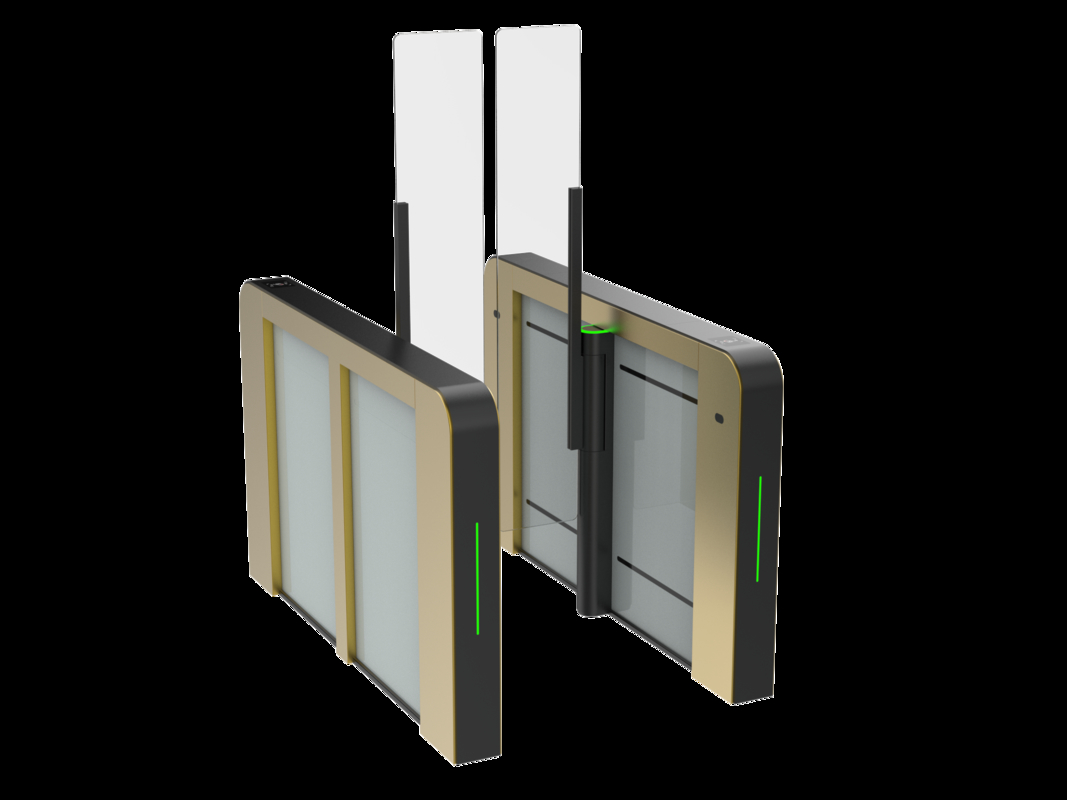

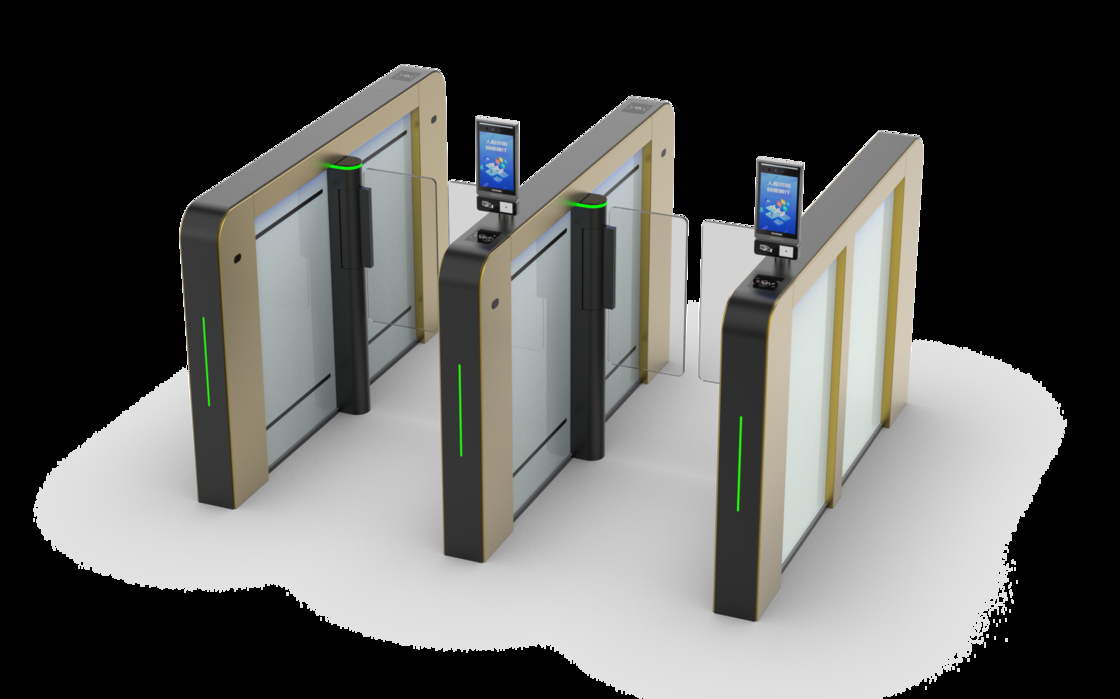

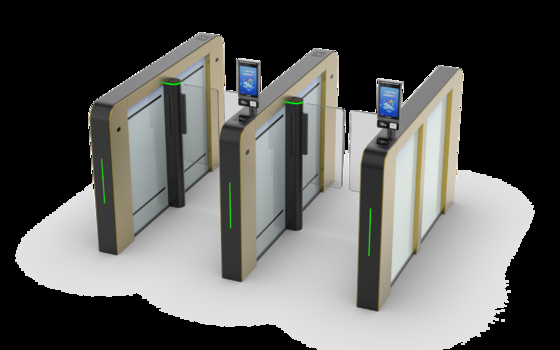

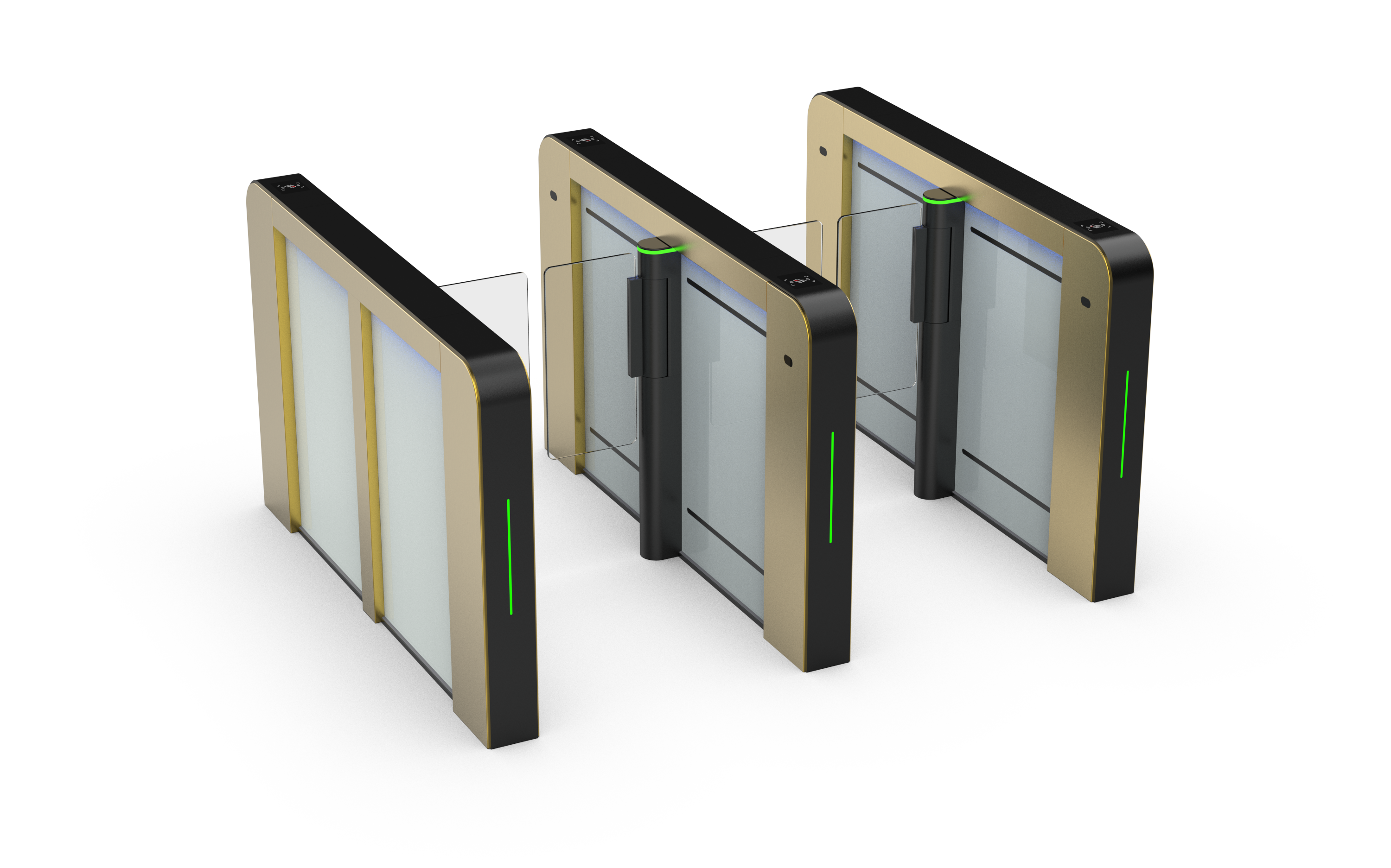

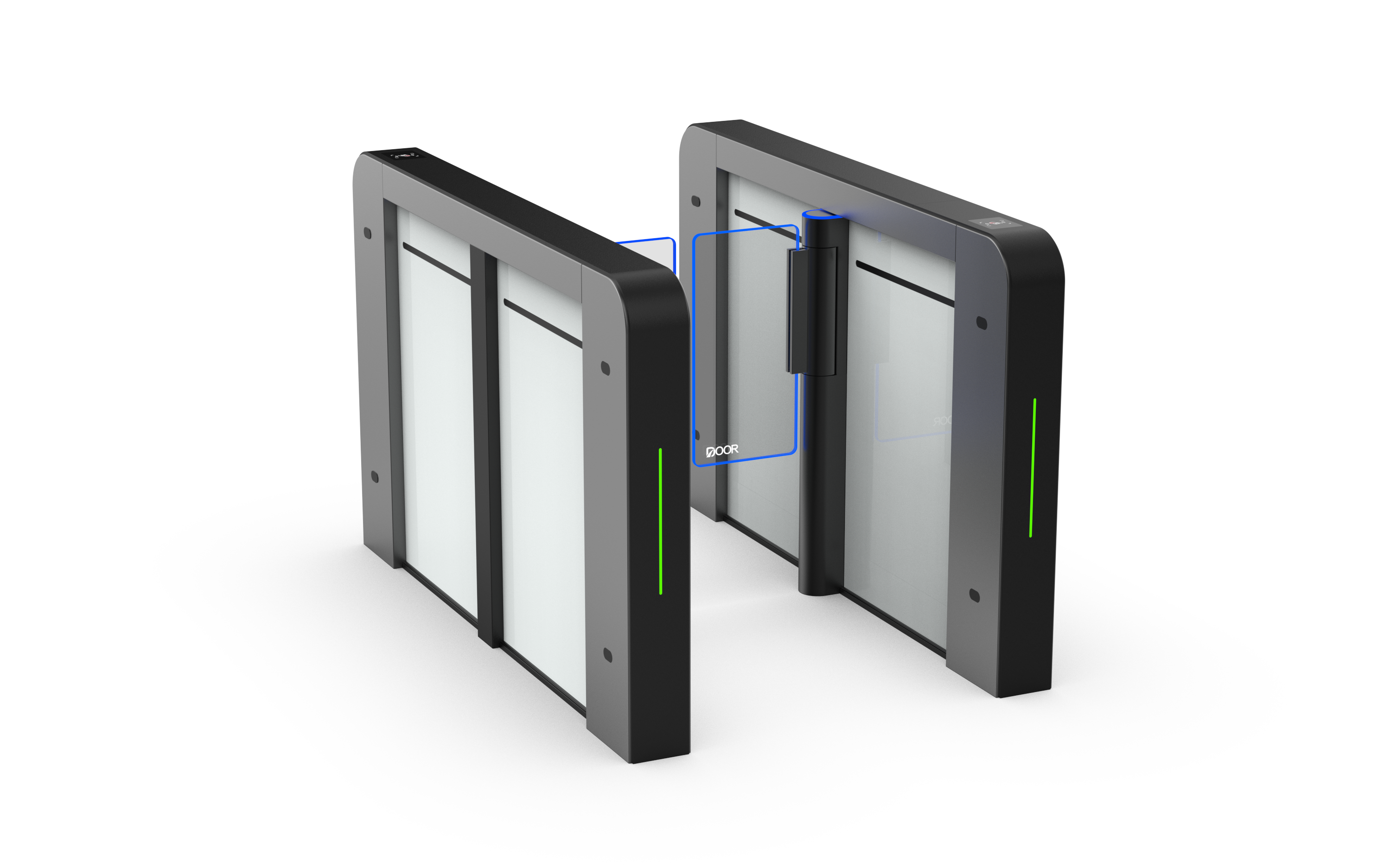

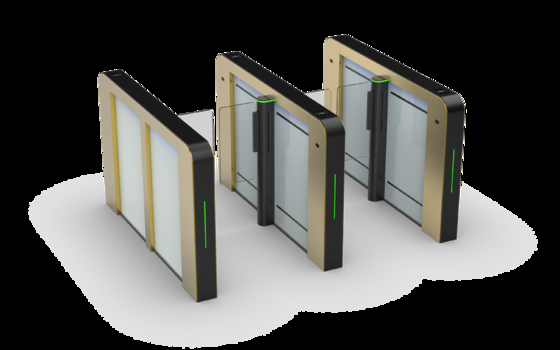

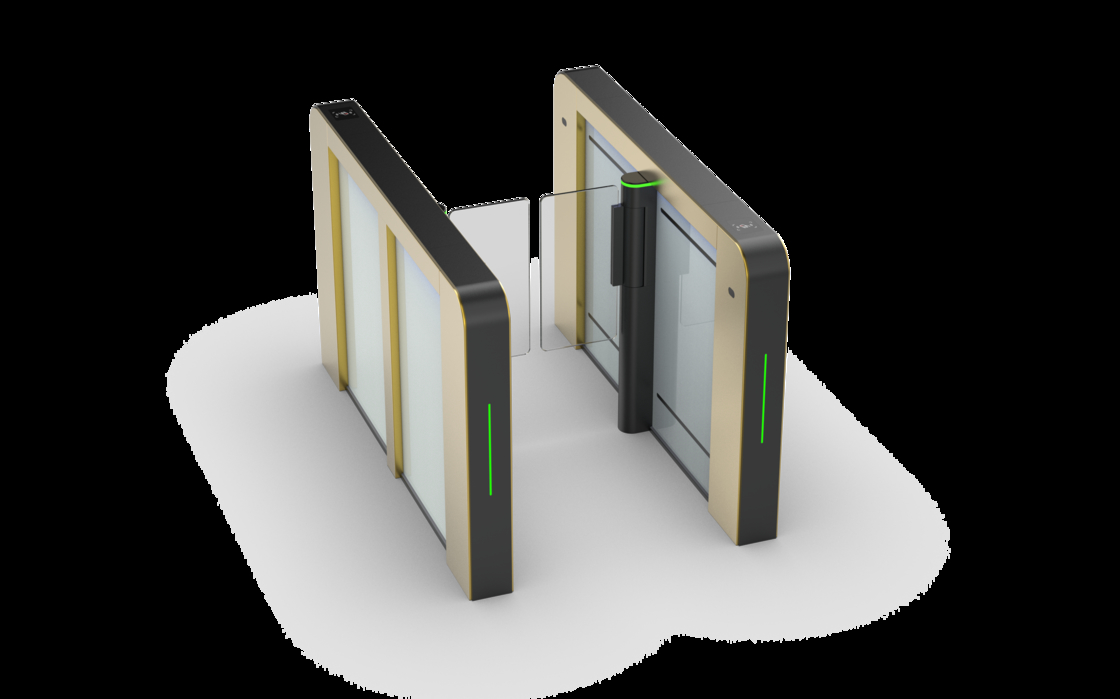

High Speed Pedestrian Turnstile with DC24V Servo Motor

High Speed Pedestrian Turnstile with DC24V Servo Motor
High Speed Pedestrian Turnstile with DC24V Servo Motor High Speed Pedestrian Turnstile with DC24V Servo Motor High Speed Pedestrian Turnstile with DC24V Servo Motor High Speed Pedestrian Turnstile with DC24V Servo Motor High Speed Pedestrian Turnstile with DC24V Servo Motor High Speed Pedestrian Turnstile with DC24V Servo Motor High Speed Pedestrian Turnstile with DC24V Servo Motor High Speed Pedestrian Turnstile with DC24V Servo Motor High Speed Pedestrian Turnstile with DC24V Servo Motor High Speed Pedestrian Turnstile with DC24V Servo Motor High Speed Pedestrian Turnstile with DC24V Servo Motor High Speed Pedestrian Turnstile with DC24V Servo Motor High Speed Pedestrian Turnstile with DC24V Servo Motor High Speed Pedestrian Turnstile with DC24V Servo Motor High Speed Pedestrian Turnstile with DC24V Servo Motor
Basic Information
Place of Origin: China
Brand Name: SHENZHEN DOOR
Certification: CE / IS09001
Model Number: DR.TD.6629A
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: wooden box
Delivery Time: 2-4 weeks
Payment Terms: T/T
Supply Ability: 2000 units
Get Best Price Contact Now
Highlight:

High speed pedestrian turnstile with servo motor

,

DC24V speed gate turnstile

,

Servo motor pedestrian turnstile

High Speed Pedestrian Turnstile with DC24V Servo Motor
Technical Specifications
Product Name Speed Gate
Model DR.TD.6629A
Cabinet Material SUS304 Stainless Steel + Aluminum Alloy
Arm Material PMMA Acrylics/Plexiglass (Tempered Glass Optional)
Size 1600×140×1000 mm
Voltage AC220±10%V 50±10%HZ
Driving Motor DC24V Servo Motor
Passing LED Indicator Red/Green Indicator + Blue LED Light Strips
Method of Positioning Servo Motor + Clutch + Encoder
Direction of Passing Uni-directional/Bi-directional
Passing Width 600-900mm
IR Sensor 12 Pairs
Working Environment Indoor, -25℃ to 70℃
Relative Humidity ≤90%, no condensation
Opening Speed Fastest 0.3s (adjustable)
Passing Speed 35-50 people/min
MCBF 20 Million Times
Angle of Gate Opening 90°±5°
Noise <50dB
Communication Interface Level/Pulse/RS485/RS232
Input Interface Relay (dry contact)
IP Level IP42
Power 100W (left/right), 200W (middle)
Color Champagne Gold + Black
Design Advantages
  • Hidden IR sensor design
  • Screwless cabinet construction
  • No visible keyholes around cabinet
  • Precision gap ≤ 0.2mm between top cover and body parts
Advanced Functions
  1. Anti-trailing alarm and anti-reverse protection
  2. Audible and visual alarm for illegal entry attempts
  3. Adjustable volume voice broadcast system
  4. Memory opening function (500+ cycles), with delay and overtime closing
  5. People counting capability
  6. Fire alarm interface for automatic opening during emergencies
  7. Anti-break-in protection: wings remain closed without valid open signal
  8. Anti-pinch safety: wings stop and rebound when obstructed
  9. IR sensor protection: wings reopen if people detected in aisle during closing
  10. Power-on self-test function
  11. Power-off free passage mode (fire safety compliant)
  12. Automatic reset (default 5 second timeout, configurable)
  13. Multi-layer passing protection:
    • IR sensor anti-pinch
    • Traffic logic anti-pinch
    • Current detection anti-pinch
  14. Configurable trailing mode operation
  15. Three anti-reverse mode options
  16. Parameter configuration via LCD screen and buttons
Performance Highlights

This high-speed turnstile combines industrial-grade durability with advanced safety features, offering reliable access control with a passing rate of 35-50 people per minute. The DC24V servo motor ensures smooth operation while multiple protection systems guarantee user safety.
