LumenSync Turnstile / LumenSync Gate

Basic Information

Place of Origin:	China
Brand Name:	DOOR or OEM
Certification:	CE / IS09001
Model Number:	DR.TD6623

Minimum Order Quantity:	2 sets
Price:	Negotiable
Packaging Details:	wood carton
Delivery Time:	5-7 working days
Payment Terms:	T/T
Supply Ability:	2500 sets per month

Get Best Price Contact Now

Material:	304# Stainless Steel	Suitable For:	Access Control, Entrance And Exit Control
Turnstile Material:	SUS304 Stainless	Communication Interface:	RS485
Power Supply:	AC110/AC220+/-10%	Swing Arm Available:	Acrylics Or Tempered Glass
Driving Motor:	DC24V Brushless Motor	Opening Signal Input::	Dry Contact
Working Environment:	-25℃-+70℃	Pass Speed:	30-35 Personal/min
Support System:	Face Recognition,ic/id Card,fingerprint	Motor:	DC24V Brushless Motor
IR Sensor:	8 Pairs	Passage Width:	550mm
IP Rating:	IP42	Mean Cycles Between Failure:	20 Million Times
Voltage:	AC110V/AC220V±10% 50-60Hz	Operating Power:	30W
Method Of Position:	Motor Driving	Mtbf:	5 Million Times
Size:	L1600×W280×H1000mm
Highlight:	face recognition speed gate turnstile , LumenSync access control turnstile , speed gate turnstile with warranty

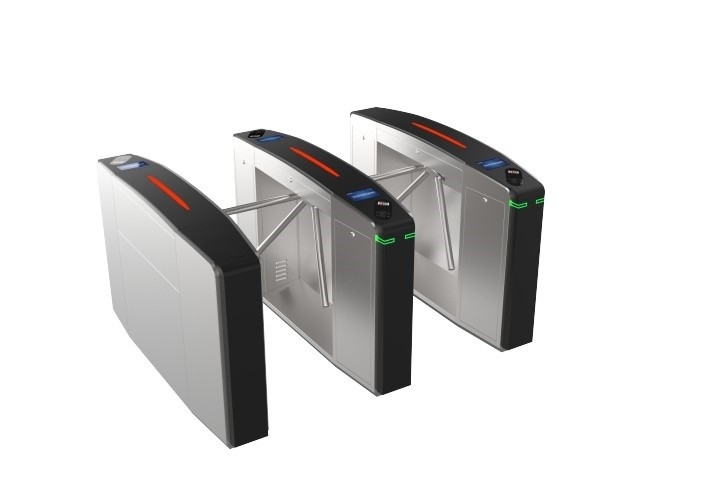

LumenSync Turnstile / LumenSync Gate

Product Specifications

Key Features

Seamless Third-Party Integration: Compatible with industry-standard access control devices (IC/ID card readers, QR code scanners, facial recognition terminals, etc.).
Emergency Safety: Dedicated fire button interfaces with the system for automatic gate release during emergencies.
High-Speed Detection: 8 military-grade infrared sensors with advanced algorithms prevent tailgating, reverse passage, and clamping.
Enhanced Safety: Multi-layer anti-pinch design and optional widened lane for luggage/wheelchair access.
Seamless Integration: Compatible with RS485, TCP/IP (optional), and dry contact interfaces, works with all major access control systems.

(Note: Recognition systems not included; product provides standardized connection interfaces only)

Applications

Widely used for official or corporate buildings, sectioning off certain areas in University lab access points, industrial buildings or hospital radiology departments.

LumenSync Turnstile / LumenSync Gate 1

Customization Options

Customized logo (Min. order: 2 pieces)
Customized packaging (Min. order: 2 pieces)
Graphic customization (Min. order: 2 pieces)

Supplier's Customization Ability

Minor customization
Drawing-based customization
Sample-based customization
Full customization

Shipping Information

Shipping fee and delivery date to be negotiated. Contact supplier for more details.
