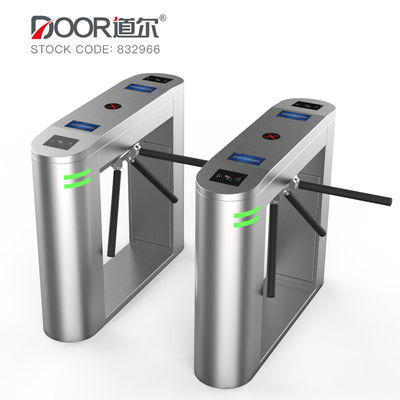

Stainless Steel Tripod Turnstile Gate Anti Tailgating For Outdoor

Stainless Steel Anti Tailgating Tripod Turnstile Gate For Outdoor

Basic Parameters:

Material:                          SUS304 stainless steel  Whole body 1.2mm

Size:                                L1200×W280×H1000mm

Passage Width:               550mm

Passing Speed:               20 personal/min

Working Temperature:     -15℃～+60℃

MCBF:                             3 million times

IP Rating:                         IP54

Voltage:                           AC110V/AC220V±10% 50-60Hz

Driving Method:               Solenoid Valve Driving

Communication method: Dry contact

 --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

All-around Personal Safety Protection

Arm drops down when power is off: The arm can drop down automatically when the power is off, so as to evacuate people conveniently.

Emergency escape function: Equipped with emergency escape control device, tripod turnstile arm will drop down automatically so as to evacuate people.

Anti electric shock: All electric modules are designed to operate under the safety voltage of 24V, and configured with residual current protective device so as to avoid electric shocks.

Intelligent & Advanced Turnstile Core Technology

With the mechanical anti-tailgating design, it can effectively achieve that only one person can pass at a time.

With mechanical electronic control lock structure design, tripod turnstile can prevent illegal hitting and reverse passing.

Feature Of Tripod Turnstile Gate

* Running stable without noise and mechanical impact

* Equipped with the dry contact signal input interface, compatible with all kinds of access controllers.

* After swiping card in normal condition, if within the permitting time passages do not pass, the system will

cancel the users’ pass right and arm close automatically

* Arm automatically open when the power off to make sure safety In case of emergency

* Optional for external counter to record the people numbers for each lane

* Single way or Bi-directional adjustable based on the requirement.

* Equipped with LED directional indication / status lights

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------

Partner

FAQ
Q1: Do you have English version system?
A: Yes, we can provide English version system. Also you can use your own system as well.
Q2: Does the equipement include control board?
A: Yes, it is with control board. But if need our system to management, need to order extra channel management control board.
Q3: Can we connect your access control system with our system?
A: Yes, we provide SDK and Software development service with connection port.
Q4: How can we install the turnstiles/barrier gates? Is it easy?
A:Yes, it's easy to install, we have done most of the jobs before sending our products. You just need fix the gates with screws,

and connect power supply cables and internet cables.Also we provide one sheet of specific manual specification in the package.
Q5: What is your company’s strength?
A: We are the top 3 manufacturer in turnstile field in China. And we are listed company with famous brand in China. We have more

than 400 employees, a R&D group with 160 people, 15-person customized team, 18 offices, 9 agents and more than 20 distributors all around China.
Q6: How do you do after-sale service?
A: We provide life-time technology support on line, by emails, video, phone etc. We have engineer speaking English, convenient to communicate with you directly.
Q7:How about the lead time?
Normally we have raw material in stock for the hot sale models of standard products. Regular products need 5-7 working days.

The customized products need 15-20 working days.
Q8: How many years of warranty?
A: We provide 1 year warranty for our products.
