Listed Pedestrian Turnstile and Parking Devices Manufacturer for over 15 Years!
Stock Code:832966
| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | DOOR |
| Certification: | CE / IS09001 |
| Model Number: | VD.TD.6371XS |
| Minimum Order Quantity: | 1 Pcs |
| Price: | Negotiable |
| Packaging Details: | wooden carton |
| Delivery Time: | 5-7 working days |
| Payment Terms: | T/T, Western Union, MoneyGram, D/P, D/A, L/C |
| Supply Ability: | 2500 sets per month |
| Material: | 304 Stainless Steel | Size: | 420*330*980 Mm |
|---|---|---|---|
| Driving Motor: | Solenoid Valve Driving | Passage Width: | 600mm |
| Passing Speed: | 20persons/min | Communication: | Dry Contact/RS485 TCP/IP |
| Relative Humidity: | No Condensation,≤90% | Voltage: | AC110V/AC220V±10% 50-60Hz |
| IP Level: | IP54 | MTBF: | 2 Million Times |
| High Light: | SUS 304 Tripod Turnstile Gate,Swipe Card Tripod Turnstile Gate,Stainless Steel tripod security gates |
||

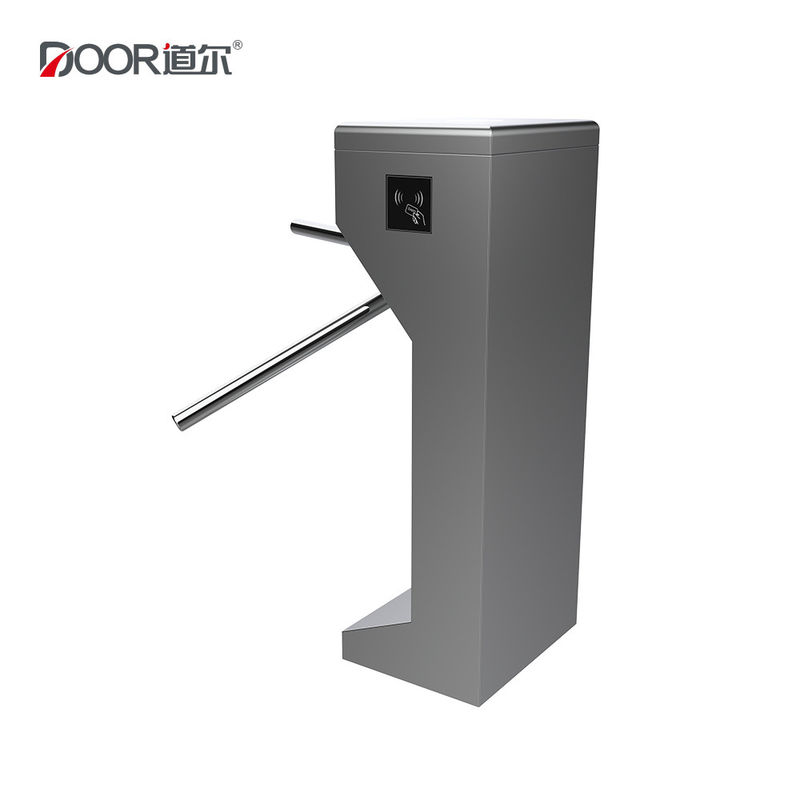

Three Roller Gate Detail
The shape of the whole product is cut and assembled by imported stainless steel plate, which is elegant in shape, rust-proof,
durable, and can resist external damage. The channel formed by the rectangular chassis and the channel gate bar can provide
an orderly and civilized way for people entering and leaving, prevent illegal entry and exit, and quickly control the falling or
retracting of the pole in emergency situations.
Product Parameter
| Product name | Tripod Turnstile |
| Model | VD.TD.6371XS |
| Cabinet material | SUS304 brushed stainless steel |
| Size | 420*330*980 mm |
| Voltage | AC110V/AC220V±10% 50-60Hz |
| Driving motor | Solenoid Valve Driving |
| Passing LED indicator | Top cover indicator |
| Direction of passing | Uni-directional/Bi-directional |
| Passing width | ≤600mm |
| Working environment | Indoor/outdoor, -15℃～60℃ |
| Relative humidity | ≤90%, no condensation |
| Opening speed | Fastest 1.5s, adjustable |
| Passing speed | 20 people/min(IC card) |
| MTBF | 2 million times |
| Noise | ＜50dB |
| Communication interface | RS485,IP/CIP |
| Communication distance | ≤1200m |
| Input interface | Dry contact |
| IP level | IP54 |
Main Field of Application
Office and administrative buildings
Ministries and public buildings
Banks and financial institutions
Industrial installations
Residential areas
Gymnasium
Scenic spots
Amusement parks
Public transportation
Package Standard
FAQ:
Q1: Do you have English version system?
A: Yes, we can provide English version system. Also you can use your own system as well.
Q2: Does the equipement include control board?
A: Yes, it is with control board. But if need our system to management, need to order extra channel management control board.
Q3: Can we connect your access control system with our system?
A: Yes, we provide SDK and Software development service with connection port.
Q4: What is your company’s strength?
A: We are the top 3 manufacturer in turnstile field in China. And we are listed company with famous brand in China. We have more than
400 employees, a R&D group with 160 people, 15-person customized team, 18 offices, 9 agents and more than 20 distributors all around China.
Q5: How do you do after-sale service?
A: We provide life-time technology support on line, by emails, video, phone etc. We have engineer speaking English, convenient to communicate with you directly.
Q6:How about the lead time?
Normally we have raw material in stock for the hot sale models of standard products. Regular products need 5-7 working days. The customized products need 15-20 working days.
Q7: How many years of warranty?
A: We provide 1 year warranty for our products.
