Listed Pedestrian Turnstile and Parking Devices Manufacturer for over 15 Years!
Stock Code:832966
| Place of Origin: | China |
|---|---|
| Brand Name: | DOOR |
| Certification: | CE / IS09001 |
| Model Number: | DR.TD.6621C |
| Minimum Order Quantity: | 1 lane |
| Price: | Negotiable |
| Packaging Details: | wood carton |
| Delivery Time: | 5-7 working days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C, D/A, D/P |
| Supply Ability: | 2500 sets per month |
| Material: | SUS304 Stainless Steel | Size: | 1000*160*1000 Mm |
|---|---|---|---|
| Power Supply: | AC110/AC220+/-10% | Weight: | 80kg |
| Channel Width: | 600~900mm | Working Environment: | Indoor |
| Communication Interface: | RS485,dry Contact | MTBF: | 10 Million Times |
| High Light: | Servo Motor fastlane turnstile,Dry Contact fastlane turnstile,RS485 fastlane optical turnstiles |
||

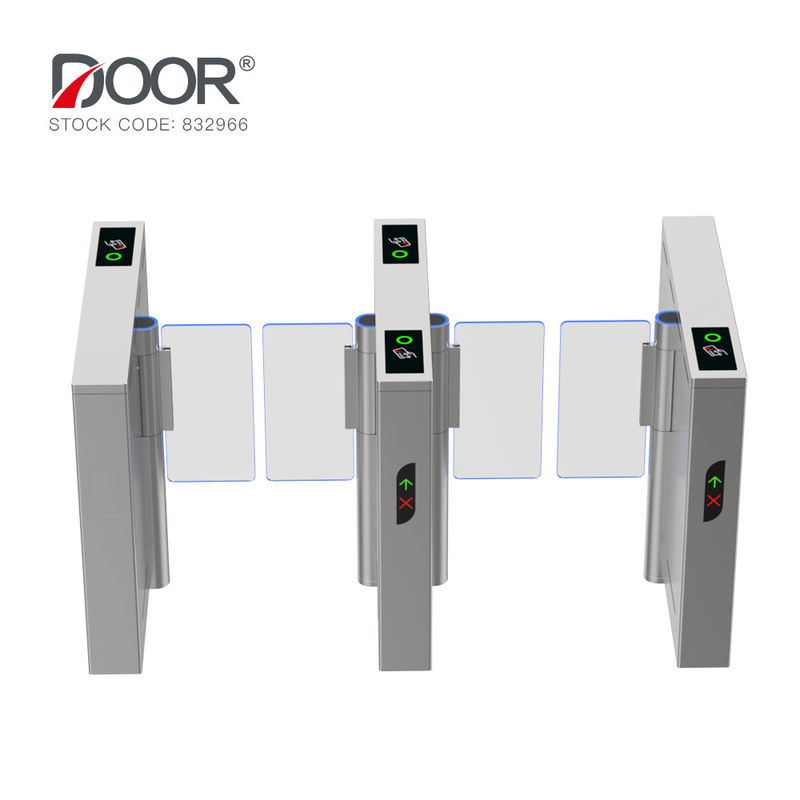

This fast lane speed gate turnstile can function as both a stand-alone system or can be integrated with our full range of access control system. We also provide modern designer speed gates that are elegant and aesthetic, especially for corporate offices.
Specifications:
| Model | DR.TD.6621C | |||||||||
| Cabinet material | Brushed stainless steel | |||||||||
| Arm material | Acrylic | |||||||||
| Size | 1000*160*1000 mm | |||||||||
| Voltage | AC220±10%V 50±10%HZ | |||||||||
| Driving motor | DC24V servo motor | |||||||||
| Passing LED indicator | Motor and arm with LED indicator | |||||||||
| Method of positioning | Motor + clutch + encoder | |||||||||
| Direction of passing | Uni-directional/Bi-directional | |||||||||
| Passing width | 600~900mm | |||||||||
Main function:
With multiple protection when passing:
a. IR sensor anti-pinch
b. Traffic logic anti-pinch
c. Current detection anti-pinch
When the trailing mode is turned on, there are two traffic modes:
a. alarm while wings opening
b. alarm while wings closing
When the anti-reverse mode is turned on, there are three modes:
a. alarm while wings opening
b. alarm while wings closing, and clear the right to pass
c. alarm while wings closing, and retain the right to pass
FAQ:
1.What is your Quality Control?
We have a average 10-year experience QC team. They had a good teamwork to check raw materials and finished products to ensure the quality. The samples will be fully tested, and the bulk goods will be sampled for careful inspection, and the QC staff will also conduct inspections during the production process.
2.Do you provide customization?
We have a 20-person customization team to cover our clients’ customized requirements. We also provide OEM and ODM service.
3.What are your optional list for your products?
Wireless control for pedestrian turnstiles, housing color changing, size changing, material SUS316 available, logo printing, add photocell quantity, etc.
4.How can we be your exclusive distributor?
To be our exclusive distributor, firstly you need to have your sales and technical team; Secondly, industry experience is required.
