Listed Pedestrian Turnstile and Parking Devices Manufacturer for over 15 Years!
Stock Code:832966
| Place of Origin: | China |
|---|---|
| Brand Name: | DOOR |
| Certification: | CE / IS09001 |
| Model Number: | DR.TD.6627 |
| Minimum Order Quantity: | 1 lane |
| Price: | Negotiable |
| Packaging Details: | plywood cases |
| Delivery Time: | 5-7 working days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C, D/A, D/P |
| Supply Ability: | 2500 sets per month |
| Size: | L1656×W150×H1000mm | Passage Width: | 600~1100mm |
|---|---|---|---|
| Motor: | Servo Motor | Power Supply: | AC220V/110V 50-60Hz |
| Communication Interface: | RS485,dry Contact | Passing Speed: | 35-40 Person/min |
| IP Rating: | IP42 | Sensor: | 8 Pairs |
| MCBF: | 10 Million Times | Working Temperature: | -25℃~+75℃ |
| High Light: | Swipe Card Speed Gate Turnstile,Dry Contact speed turnstile gate,Anti Reverse speed turnstile gate |
||

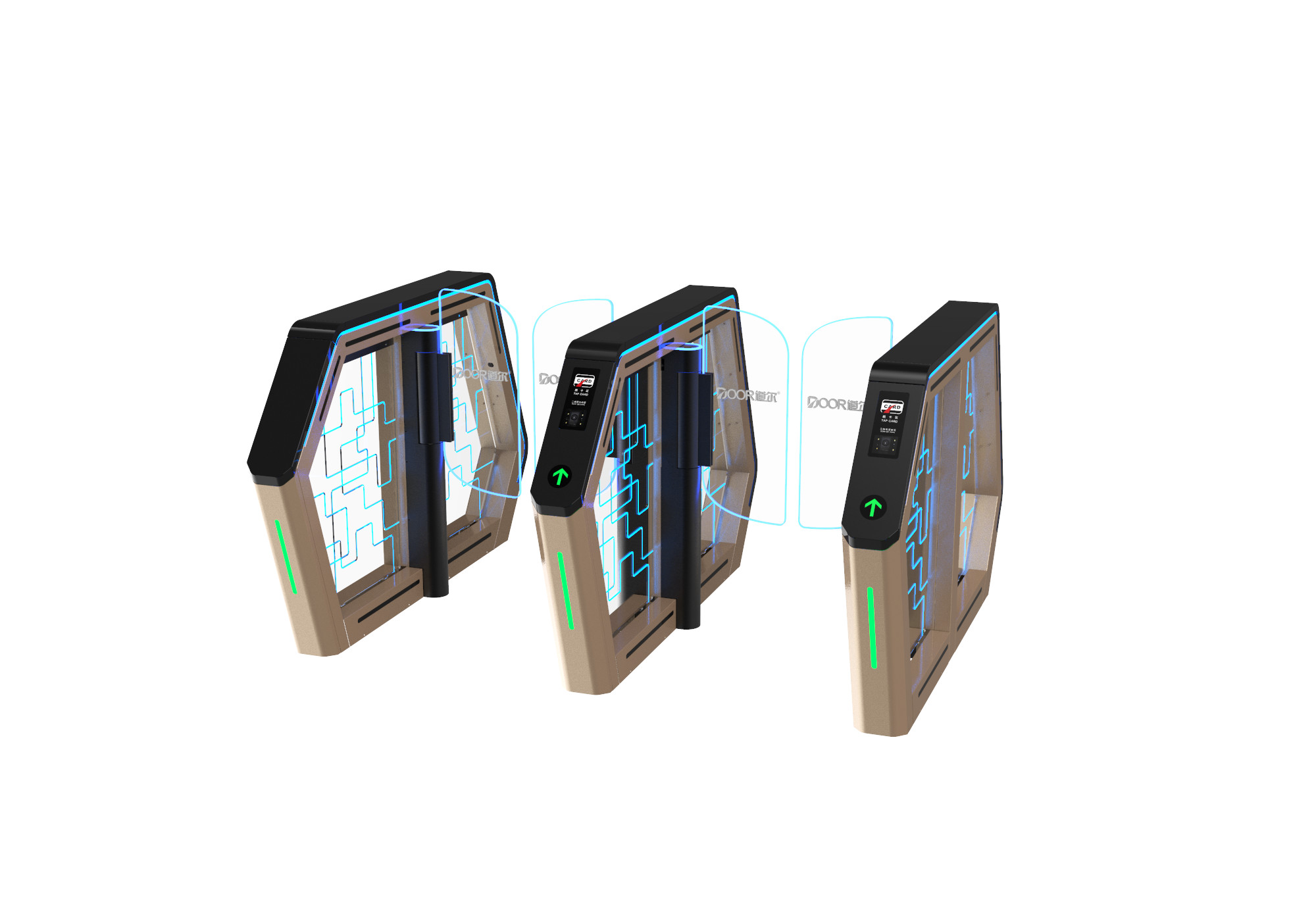

High-end Speed Gate Turnstile Elegent Anti-reverse Design With Biometrics Swipe Card
Speed Gate Description
The speed gate is a product that combines high efficiency, safety and craftsmanship, and its lifespan is longer
and more durable than traditional doors. Its features are as follows:
Efficiency
The speed gate passing speed: 35-45person/min, and the speed of opening the gate is very fast, about 0.4 times
per second. It effectively solves the congestion of traditional doors and long queues, and greatly improves the traffic
level. Generally, it is widely used in shopping malls and various office buildings.
Safety
The speed gate has anti-tailing function, anti-collision function, and emergency escape function.
1. Anti-tailing function: There is an infrared light band detector in the channel of the speed pass door, which can
effectively determine the pedestrians who have not read the card and enter the prompt. If the pass is forced,
an automatic alarm will be triggered.
2. Anti-collision function: When there is no signal to open the gate, the door wing is automatically locked, and if it
encounters a gravitational impact, it will not cause substantial damage to the door wing machine.
3. Self-checking function: The speed-pass door has the function of fault self-checking and alarm prompting. When
the speed-pass door is in normal use, the traffic light status is green, and when a fault occurs, the traffic light will
turn red to remind the user to check and maintain.
Fire alarm function
Response of turnstiles in emergency
In case of a sudden power failure during the operation of the door, the door will stop in the original position and
can be pushed freely, or an external 12V battery can be connected (when the power is off, the battery will be
temporarily powered to open the swing door). According to the requirements, each device can be installed with
an emergency button, The selected emergency response mode is activated at the push of a button. Generally
open the channel in danger or panic. In emergencies such as bandit police, the channel can be manually closed
through the remote control button. After the power is turned on or the emergency situation is lifted, the swing
door will automatically reset after self-checking and barrier-free.
Specification Of Speed Turnstile Gate
| Model | DR.TD.6627 |
| Material | Cold rolled sheet + baking finish (thickness 1.5mm) |
| Size | L1656×W150×H1000mm |
| Swing arm | Acrylic (tempered glass available) |
| Passage width | 600-1100mm |
| Input power | AC220V,50/60HZ |
| Motor | Servo motor |
| Work temperature | -25℃ ~ 75℃ |
| Rated power | Single core100W,double core 200W |
| Work environment | Indoor |
| Passage speed | 35-40person/min |
| Communication Interface | RS485, open/close signal(relay), dry contact |
| Humidity | ≤90%(no condensation) |
| MTBF | 10 million times |
| Anti-pinch | Infrared anti-pinch,current detection anti-pinch,logic anti-pinch |
| Passage direction | Uni-directional/Bi-directional |
| IP level | Ip42 |
| Voltage | AC110V/AC220V±10% 50-60Hz |
Application:
Widely used in commercial and management office buildings, ministries, government service halls, public buildings,
banks and financial institutions, airports, hotels, clubs, high-end residential areas, schools, colleges and universities,
industrial facilities, etc.
FAQ
Q1: Do you have English version system?
A: Yes, we can provide English version system. Also you can use your own system as well.
Q2: Does the equipement include control board?
A: Yes, it is with control board. But if need our system to management, need to order extra channel management control board.
Q3: Can we connect your access control system with our system?
A: Yes, we provide SDK and Software development service with connection port.
Q4: How can we install the turnstiles/barrier gates? Is it easy?
A:Yes, it's easy to install, we have done most of the jobs before sending our products. You just need fix the gates with
screws, and connect power supply cables and internet cables.Also we provide one sheet of specific manual specification in the package.
Q5: What is your company’s strength?
A: We are the top 3 manufacturer in turnstile field in China. And we are listed company with famous brand in China. We have
more than 400 employees, a R&D group with 160 people, 15-person customized team, 18 offices, 9 agents and more than 20 distributors all around China.
Q6: How do you do after-sale service?
A: We provide life-time technology support on line, by emails, video, phone etc. We have engineer speaking English, convenient to communicate with you directly.
Q7:How about the lead time?
Normally we have raw material in stock for the hot sale models of standard products. Regular products need 5-7 working days.
The customized products need 15-20 working days.
Q8: How many years of warranty?
A: We provide 2 years warranty for our products.
