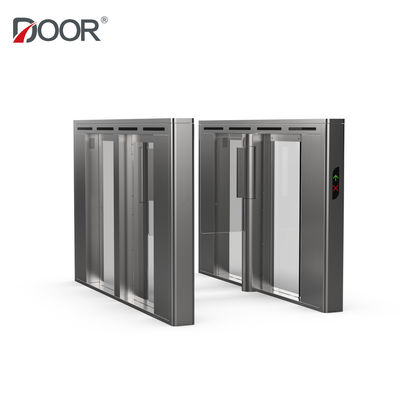

Long Lifetime High Speed Barrier Gate Standard Finishes BA / Snowflake

Long Lifetime High Speed Barrier Gate Standard Finishes BA / Snowflake

Parameters

Features of speed gates

1. Using red and green two colors to form an overall lighting effect with the light on the side of the chassis, and cooperate with the chassis to realize traffic indication and channel indication control, and the prompt information is direct and concise
2. The light on the side of the chassis is controlled by linkage with the traffic indication and alarm, which can not only be used as a light prompt to prevent collision, but also improve the appearance grade;
3. It has strict anti-trailing alarm function and anti-reverse illegal passage function to ensure the legality and effectiveness of passage;
4. Sound and light alarm prompts for illegal gate entry, reverse entry, etc.;
5. The channel adopts 8 pairs of infrared anti-pinch protection and fire alarm linkage protection to ensure the safety of personnel passage and emergency safety;
6. Using triple pedestrian protection: infrared sensor anti-pinch; pass logic anti-pinch; return when blocked;
7. With normally closed mode and peak traffic mode, normally closed mode is divided into normally closed locking and normally closed non-locking two modes;
8. Memory opening, delay closing and overtime closing functions; the function of counting the number of people passing by;
9. The channel can realize two-way traffic, the gate can swing in both directions, and the stroke is less than or equal to 180°;
10. The chassis panel provides the installation area for card swiping and QR code, and reserves the installation location for face recognition;
11. Free passage when power off, in line with fire protection requirements; provide power-on self-check function;
12. The characteristics of this gate is fast, and the opening/closing speed can reach 0.5 seconds;
13. Driven by servo motor, stable and reliable operation, low noise and long life.

Structure of Speed Gate DRTD6621B

Application

widely used in industrial enterprises, banks, offices, shops, museums, security installations,

power plants, airports, railways, seaports, exhibition centres, ski resorts, fitness and

entertainment facilities and many more.

Factory production devices

Packing Information

Plywood case size: 167*35*114cm

G.W.: 85KG
