Listed Pedestrian Turnstile and Parking Devices Manufacturer for over 15 Years!
Stock Code:832966
| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | DOOR |
| Certification: | CE / IS09001 |
| Model Number: | DR.TD.6621B |
| Minimum Order Quantity: | 1 Lane |
| Price: | Negotiable |
| Packaging Details: | Wooden Carton |
| Delivery Time: | 5-7 working days |
| Payment Terms: | L/C, T/T, Western Union, , D/A, D/P, MoneyGram |
| Product Name: | Speed Gate Turnstile | Material: | SUS304 Brushed Stainless Steel |
|---|---|---|---|
| Size: | 1600*120*1000 Mm | Motor: | Servo Motor |
| Operating Temperature: | -20°C~70°C | Channel Width: | ≤1100mm |
| Passing Speed: | ≥40 Personal/min | Opening Speed: | Adjustable, Fastest 0.3s |
| High Light: | Anti trailing Automatic Turnstile Gate,Servo motor Automatic Turnstile Gate,SUS304 Security Speed Gate |
||

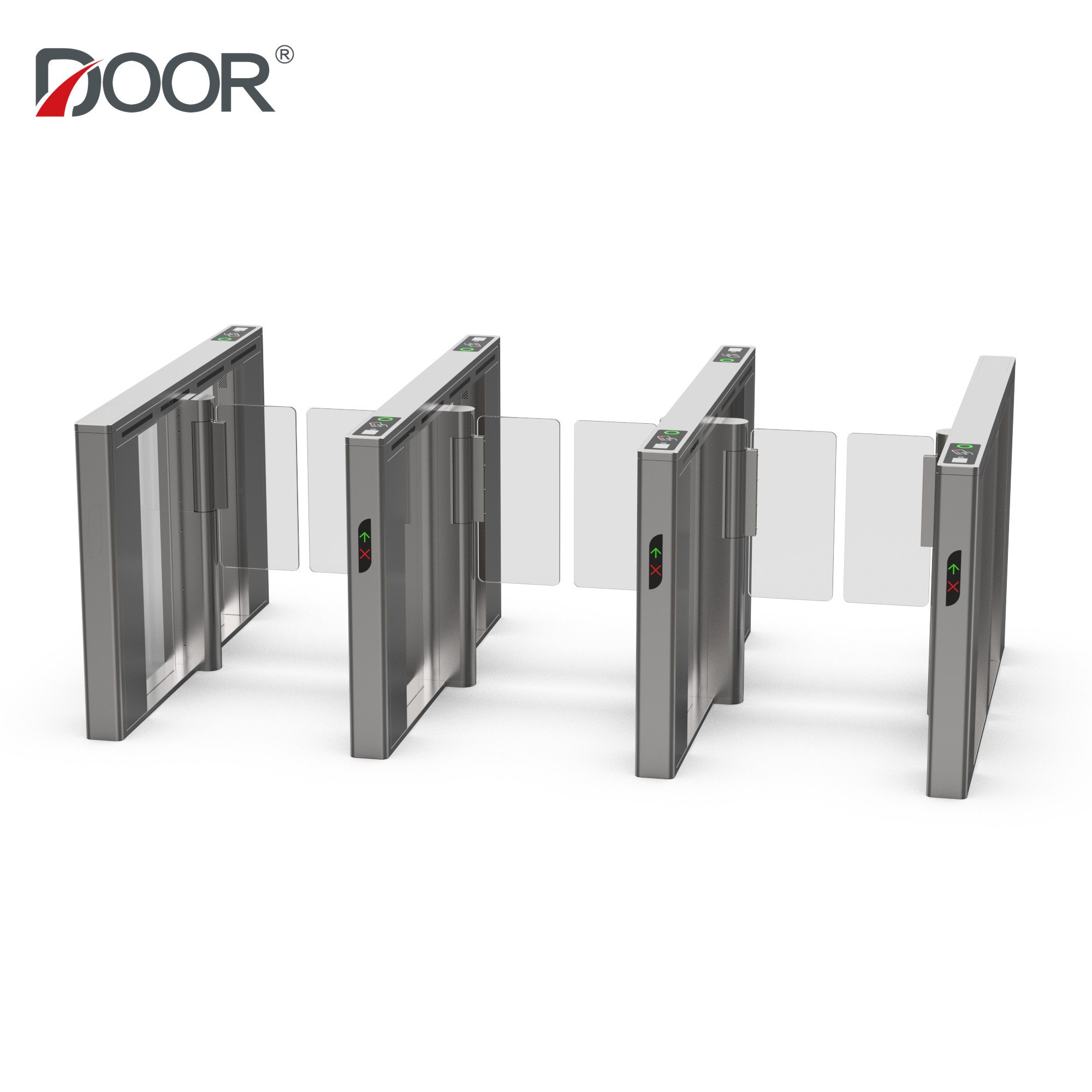

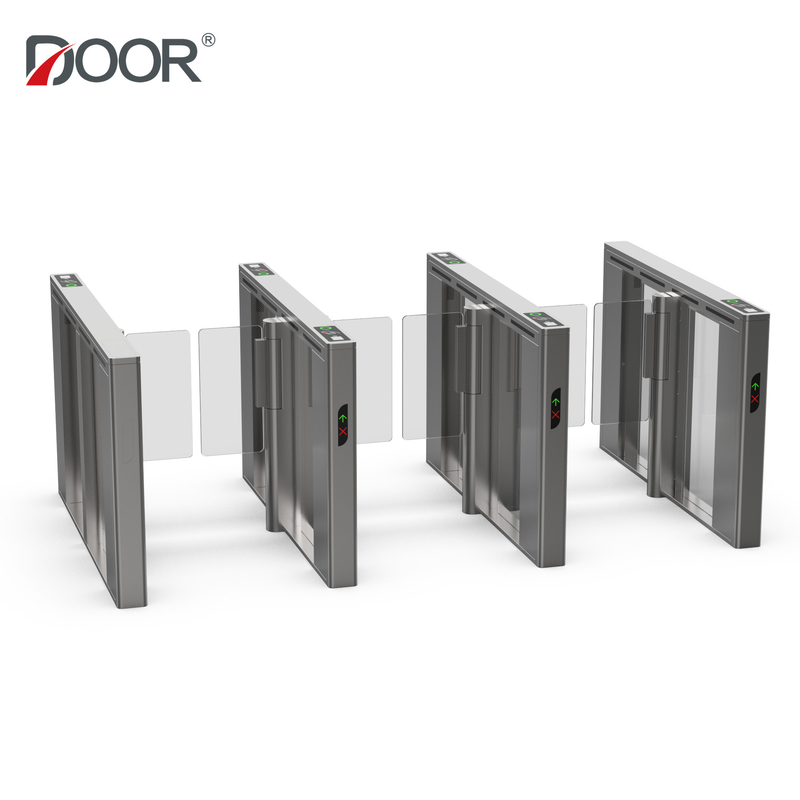

Anti-trailing High Speed Automatic Gate Biometrics Access Control
Description of Speed Gate
A. The whole chassis is made of new SUS304 stainless steel, with smooth and tidy surface, good moisture-proof and rust prevention characteristics, stable structure and good impact resistance.
B. The gate part is made of high-strength polycarbonate transparent plastic, i.e. acrylic material, which has appropriate hardness and toughness, also has good impact resistance and is not easy to be damaged.
C. The gate is 550-1000mm wide and can support 1-2 people to pass at the same time. However, as an access control machine, it is generally recommended to allow only one person to pass, and the normal identification will not be affected when controlling the access of personnel.
D. Bi directional face recognition equipment and card reader devices can be configured on both sides of the gate. You can choose face recognition verification to open the door, or swipe the card to check the door. At the same time, it also supports Bluetooth to open the door.
E. The quick pass door adopts servo motor and digital movement, which is the core component to provide intelligent operation of the gate. At the same time, LED indicators are also installed on both sides of the chassis, which can provide different signal prompts in red, green and blue states respectively.
F. The chassis is beautiful and generous as a whole, which is suitable for any scene. In addition, the main control adopts full data management, and any parameters support digital setting, which is simple and convenient to operate.
G. The quick access door has a variety of expansion interfaces to facilitate the connection of expansion equipment. At the same time, there are multiple infrared ray devices between the channels to make personnel identification more sensitive when passing through.
H. The average traffic speed of the gate is 30-45 people per minute, which meets the traffic requirements of all existing places. At the same time, this is also the place where the quick pass gate is more prominent than the traditional access gate, and the traffic is more efficient and fast.
Specification of high-quality fast pedestrian speed gate
| Structure Parameter | |
| Material | SUS304 brushed stainless steel +Aluminum Alloy |
| Swing arm available | 10 mm Acrylic |
| Size | L1600×W120×H1000mm |
| Technical Parameter | |
| Passage Width | ≤1100mm |
| Passing Speed | ＞40 personal/min |
| Opening Speed | Adjustable, fastest 0.3s |
| Working Temperature | -25℃-+70℃ |
| MCBF | 10 million times |
| IP Rating | IP42 |
| Electric Parameter | |
| Voltage | AC110V/AC220V±10% 50-60Hz |
| Operating Power | Single Core 100w, dual core 200w |
| Driving Motor | Servo motor |
| Method of position | Motor + clutch + encoder |
| Communication Interface | RS485, TCP/IP interface |
| Number of Sensor | 8 pairs |
Functions of Speed Gate
Product Dimenssion
Pedestrian Turnstile Gates Applications
Pedestrian turnstile gates have a wide range of applications. Since pedestrian turnstile gates are used to control people traffic flow, for entrance security, and for identification purposes. The gates can really be used anywhere. These turnstiles are most often used in high-traffic transportation hubs like subway systems, train stations, airports, and bus terminals. Also They are used at high-end buildings, offices, gyms, football stadium, etc. They can even be fitted with card reader for completely autonomous operation, as well as QR code readers, face readers and fingerprint readers. DOOR can provide a wide range of integration with these readers.
FAQ
1. What is the strength of your company in this industry?
A. Established in 2011, having over 10-year manufacturer experience.
B. Having metal sheet factory, assembly factory and office over 10,000㎡, can cover a high volume production.
C. There is an over 200-person R&D team, including pedestrian turnstiles and parking software and firmware developing, structuring and testing person.
D. Listed company, have a high and strict process of orders, production and shipping.
E. Modern machinery for production, such as Laser Cutting Machine, Grooving, bending, welding, engraving,etc. More detailed pics can check our factory info.
2. What is your Quality Control?
We have a average 10-year experience QC team. They had a good teamwork to check raw materials and finished products to ensure the quality. The samples will be fully tested, and the bulk goods will be sampled for careful inspection, and the QC staff will also conduct inspections during the production process.
3. Do you provide customization?
We have a 20-person customization team to cover our clients’ customized requirements. We also provide OEM and ODM service.
4. Could you tell us your after-sale service?
Timely support is a necessary. We provide free online support 24/7.
We are expanding overseas outlets to cover your after-sale service.
5. What would you do after the warranty?
We provide 12-month warranty, some of high products are with 24 months warranty. If out of warranty, we will provide free lifetime online services, and help to replace accessories.
6. What’s your capacity of your factory?
Yearly capacity:12,000units for pedestrian turnstile gate, 20,000units for parking devices.
7. What are your optional list for your products?
Wireless control for pedestrian turnstiles, housing color changing, size changing, material SUS316 available, logo printing, add photocell quantity, etc.
8. How can we be your exclusive distributor?
To be our exclusive distributor, firstly you need to have your sales and technical team; Secondly, industry experience is required.
