Listed Pedestrian Turnstile and Parking Devices Manufacturer for over 15 Years!
Stock Code:832966
| Place of Origin: | China |
|---|---|
| Brand Name: | DOOR |
| Certification: | CE / IS09001 |
| Model Number: | DRTD6621B |
| Minimum Order Quantity: | 1 sets |
| Price: | Negotiable |
| Packaging Details: | Plywood case |
| Delivery Time: | 5-7 working days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C, D/A, D/P |
| Supply Ability: | 2500 sets per month |
| Product Name: | Thin Cabinet Optical Turnstiles | Size: | L1600mm*W120mm*H1000mm |
|---|---|---|---|
| Motor: | Servo Motor | Material: | SUS304 Stainless Steel |
| Power Supply: | AC110/AC220 | Channel Width: | 600mm-1100mm |
| Working Environment: | Indoor | Communication Interface: | RS485,dry Contact |
| MCBF: | 10 Million Times | Opening Speed: | 0.3s |
| High Light: | Thin Cabinet Optical Barrier Turnstiles,Lobby Entryway Optical Barrier Turnstiles,SUS 304 Speed Gate Turnstile |
||

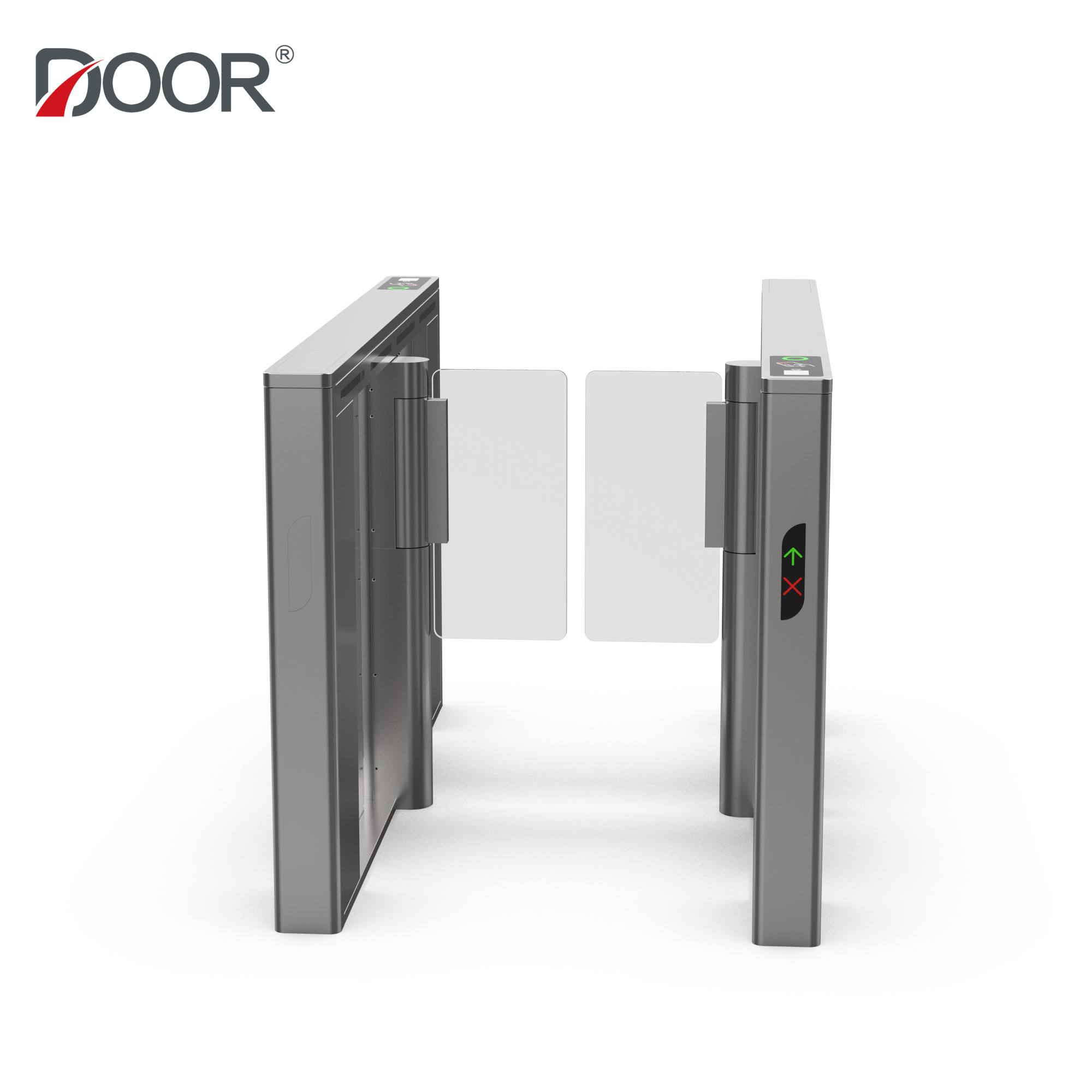

Thin Cabinet Optical Turnstiles speed gate for lobby entryway
Thin Pedestrian Speed Gate Introduction
The slimmest cabinet on the market which produced by original factory Shenzhen DOOR. It is a good choice for lobby, offices application.
Cabinet with width 120mm, 1600mm deep, 1000mm height, Passage width max to 1100mm, can meet wide lane for wheel chair passing.
Readers can be integrated into our cases in each direction. Use servo motor with longlife circle MTBF 10million times and motor is anti-collision.
Optical turnstile speed gate DRTD6621B parameter
| Structure Parameter | |
|
Material |
SUS304 brushed stainless steel |
| Swing arm thickness | 10mm Acrylic |
| Size | L1600×W120×H1000mm |
| Technical Parameter | |
| Passage Width | 600mm-1100mm |
| Passing Speed | 30-50 personal/min |
| Opening Speed | 0.3s |
| Working Temperature | -20℃-+70℃ |
| MCBF | 10 million times |
| IP Rating | IP42 |
| Electric Parameter | |
| Voltage | AC110V/AC220V |
| Operating Power | Single Core 100w, dual core 200w |
| Driving Motor | Servo motor |
| Method of position | Motor + clutch + encoder |
| Communication Interface | RS485, dry contact |
| IR Sensor | 8 pairs |
Features of speed gates
Indicator LED light:Using red and green two colors to form an overall lighting effect with the light on the side of the chassis, and cooperate with the chassis to realize traffic indication and channel indication control, and the prompt information is direct and concise;
Safety first: The channel adopts 8 pairs of infrared anti-pinch protection and fire alarm linkage protection to ensure the safety of personnel passage and emergency safety;
Wide integration: The chassis panel provides the installation area for card swiping and QR code, and reserves the installation location for face recognition;
Longlife span: Driven by servo motor, stable and reliable operation, low noise and long life;
Various working mode: With normally open/closed mode and peak traffic mode.
Factory production devices
Packing Information
Plywood case size: 167*35*114cm
G.W.: 85KG
