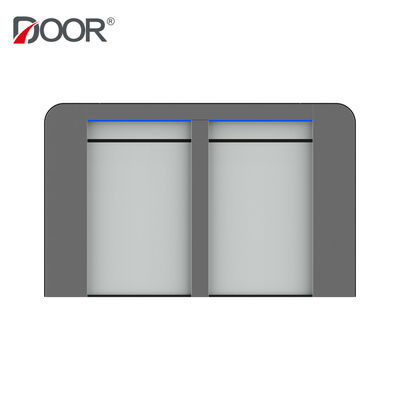

RFID Speed Gate Access Control High-End Factory Price Fast Passage Turnstiles Infrared Induction

RFID Speed Gate Access Control High-End Factory Price Fast Passage Turnstiles Infrared Induction

Description Of Speed Gate

1. The speed gate top cover is made of aluminum alloy, the body is made of stainless steel and brushed SUS304 thickness 2.0mm, which is matched with elegant champagne gold

2. The turnstile top cover aluminum alloy surface is anodized after sandblasting. It is bright,delicate and smooth

3. Chinese traditional mortise and tenon process design, the appearance of the whole machine has no screws and no keyholes - Let you have a full sensory pleasure experience

4. The new design is Industry new trend that come with hidden infrared design, the infrared are hidden between double tempered glass

5. The gap between the top cover and side cover of the whole machine and the body without filler is less than 0.2mm, showing the craftsman spirit

6. The servo motor running come with and self-developed FOC control technology, which can effectively accurately control and locate the moving position and force of the door. Realize the stability and mute control of the door during operation.

• Open door time as fast as 0.3 seconds
• Operation accuracy ≤ 0.2 degrees
• Operation noise ≤ 55dB
• Operation times ≥ 20 million times

Specification Of Speed Turnstile Gate



Material:	Top cover aluminum alloy,body SUS304 brushed stainless steel,whole body 2.0mm
Size	L1600*W140*H1000mm
Swing arm	Acrylic (tempered glass available)
Passage width	≤900mm
Input power	AC220V,50/60HZ
Motor	Servo motor
Work temperature	-20℃ ~ 70℃
Rated power	Single core100W,double core 200W
Work environment	Indoor
Passage speed	≧30person/min
Communication Interface	RS485,CAN,RS232
Humidity	≤90%(no condensation)
MTBF	≧20 million times
Anti-pinch	Infrared anti-pinch,current detection anti-pinch,logic anti-pinch
Passage direction	Uni-directional/Bi-directional
IP level	Ip42
Voltage	AC110V/AC220V±10% 50-60Hz

Infrared

12 pairs



Main Functions and Features of the System

1)  Rapid identification technique, available to identify accurately and efficiently the magnetic card, bar code card, ID card and IC card.

2)  Servo Motor, Maintenance Free

3)  Equipment maintenance: the equipment can set equipment parameters through buttons, LCD or host computer software, which is simple and convenient

4)  Real time trouble self-detect and alarm indication, ensuring system safe operation and facilitating maintenance and operation

5)  With direction indication, guiding passenger to entry and exit.

6)  Self automatic locking to prevent forcely passing without the card

7)  Automatic counting and displaying number of passenger, facilitating observation and with a displaying total amount as high as 90,000

8)  Light and sound alarm indication function, preventing illegal entry or irregular passing

9)  Powerful on-line intelligent control mode, facilitating you:

10) To adjust the operation speed of the barrier according to the flow of passenger and improve the passing rate.

11) To set up operation mode for passage entry and exit.

12) To read card with multiple times, the special function meeting the application requirements of a particular site.

13) To set up the card reading with or without memory.

14) To select a reasonable normally open or close mode, to divert the flow of passengers effectively.

15)  Setting function humanized for reset of over time pa ssing.

16)  The infrared sensing technique realizes real time monitor of passage, safe protection and tail-proof.

17)  The processing mode in emergency or in special conditions.

18)  Having standard input/output port, facilitating the integration of the system and the other equipment, to realize far end control management.



Functions of Speed Gate

1. Multiple protection function

Anti-trailing:multiple sets of infrared beam monitoring can pass one person and one card to personnel,to prevent trailing and alarm prompt.

Anti-reverse:precise actuarial calculation,infrared beam monitoring,reverse passage,automatic blockade of channels,voice alarm prompt.

Anti-clip and anti-collision monitoring:triple safety protection mechanism to ensure the safe passage of person.

• Infrared anti-clip and anti-collision.
• Passing process logic anti-pinch and anti-collision.
• Current detection anti-clamp and anti-collision.

2. The Speed gate can accommodate a variety of credential readers, it can be connected with identification equipment such as IC card, ID card, bar code card, fingerprint reader and various access control and visitor systems, and can be connected with various control systems, which is convenient for system integration.

3. Servo Motor,control speed, position accuracy is very accurate.

4. Anti-violent gate function,Controller alarm prompt and self-recovery, and record data.

5. The infrared sensing technique realizes real time monitor of passage, safe protection and tail-proof.

6. In the process of opening and closing the gate, the turnstile runs smoothly without overshoot and jitter.

7. TCP/IP remote switch gate, which can realize remote control and management of equipment directly through the centralized control center.

8. Automatic reset: After swiping the card to authorize the door wing to open, if the gate is not passed within the specified time, the system will automatically cancel the user's permission to pass, and the door wing will be closed.

9. Fire emergency: The arm of the turnstile can be opened in an emergency to meet fire protection needs.

10. With standard electronic interface(dry contact), which can integrated with any access control system

Speed Gate dimension:



EasyGate Application:

Office and administrative buildings
Ministries and public buildings
Banks and financial institutions
Industrial installations
Residential areas
Schools, colleges and universities

Tunrstile Work:



FAQ

Q1: Do you have English version system?
A: Yes, we can provide English version system. Also you can use your own system as well.
Q2: Does the equipement include control board?
A: Yes, it is with control board. But if need our system to management, need to order extra channel management control board.
Q3: Can we connect your access control system with our system?
A: Yes, we provide SDK and Software development service with connection port.
Q4: How can we install the turnstiles/barrier gates? Is it easy?
A:Yes, it's easy to install, we have done most of the jobs before sending our products. You just need fix the gates with screws, and connect power supply cables and internet cables.Also we provide one sheet of specific manual specification in the package.
Q5: What is your company’s strength?
A: We are the top 3 manufacturer in turnstile field in China. And we are listed company with famous brand in China. We have more than 400 employees, a R&D group with 160 people, 15-person customized team, 18 offices, 9 agents and more than 20 distributors all around China.
Q6: How do you do after-sale service?
A: We provide life-time technology support on line, by emails, video, phone etc. We have engineer speaking English, convenient to communicate with you directly.
Q7:How about the lead time?
Normally we have raw material in stock for the hot sale models of standard products. Regular products need 5-7 working days. The customized products need 15-20 working days.
Q8: How many years of warranty?
A: We provide 1 year warranty for our products.
