| Place of Origin: | China |
|---|---|
| Brand Name: | DOOR |
| Certification: | CE / IS09001 |
| Model Number: | DR.TD.6682 |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotiable |
| Packaging Details: | wooden box package |
| Delivery Time: | 5-7 days |
| Payment Terms: | T/T |
| Supply Ability: | 2500PCS/Month |
| Material: | SUS304 Brushed Stainless Steel | Size: | 1500*110*988mm |
|---|---|---|---|
| Drive Unit: | Servo Motor | Pass Width: | Standard 550mm, Max 900mm |
| Pass Rate: | 40-45personal/min | Operating Time: | Adjustable, Fastest 0.3S |
| Input Voltage: | AC110/AC220±10% 50-60Hz | Protection Level: | IP42 |
| Communication Interface: | RS485, TCP/IP Interface | Number Of Sensor: | 8 Pairs |
| Color: | Can Be Customized | ||
| High Light: | 0.3S Stainless Steel Turnstile,Stainless Steel Turnstile,Speed Turnstile Gate |
||

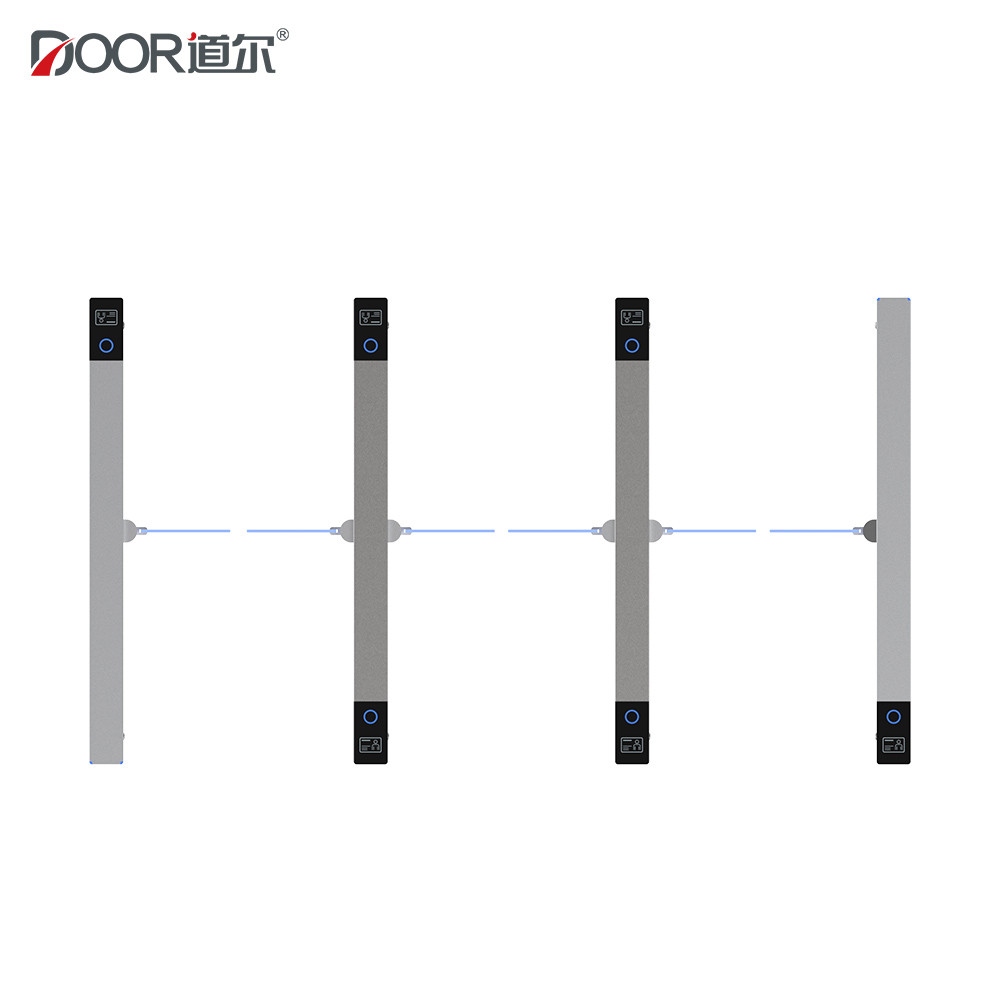

Servo Motor SUS 304 Brushed Stainless Steel Slim Speed Gate Turnstile
This slim speed gate used aluminum alloy material, corrosion resistance, high temperature resistance, oxidation resistance, durable. Anti fingerprint housing, Unique design.
Specifications:
| Structure Parameter | |
|
Material: |
Aluminum Alloy (whole body over 3mm) |
| Swing arm available | Acrylic |
| Size | L1500×W110×H988mm |
| Technical Parameter | |
| Passage Width | Standard 550mm, max 900mm |
| Passing Speed | 40-45personal/min |
| Opening Speed | Adjustable, fastest 0.3s |
| Working Temperature | -30℃-+65℃ |
| Mean Cycles Between Failure | 10 million times |
| IP Rating | IP42 |
| Electric Parameter | |
| Voltage | AC110V/AC220V±10% 50-60Hz |
| Operating Power | Single Core 100w, dual core 200w |
| Driving Motor | Servo motor |
| Method of position | Use the encoder to make sure the swing gate position |
| Communication Interface | RS485, TCP/IP interface |
| Number of Sensor | 6 groups |
Wooden box package:
Project case:
