Listed Pedestrian Turnstile and Parking Devices Manufacturer for over 15 Years!
Stock Code:832966
| Place of Origin: | China |
|---|---|
| Brand Name: | DOOR |
| Certification: | CE / IS09001 |
| Model Number: | DRTD6621L |
| Minimum Order Quantity: | 2 Sets |
| Price: | Negotiable |
| Packaging Details: | wooden carton |
| Delivery Time: | 5-7 working days |
| Payment Terms: | L/C, T/T, Western Union, , D/A, D/P, MoneyGram |
| Supply Ability: | 2500sets per month |
| Material: | SUS304 Stainless Steel | Size: | L1600×W160×H990mm |
|---|---|---|---|
| Motor: | Servo Motor | Passage Width: | 550-1050mm |
| Weight: | 80kg | Voltage: | AC110V/AC220V±10% 50-60Hz |
| Warranty: | 1 Year | Communication Interface: | RS485, TCP/IP Interface |
| IP Rating: | IP42 | MCBF: | ≥8 Million Times |
| High Light: | SUS304 Speed Gate Turnstile,L1600mm Speed Gate Turnstile,SUS304 Flap Barrier Turnstile |
||

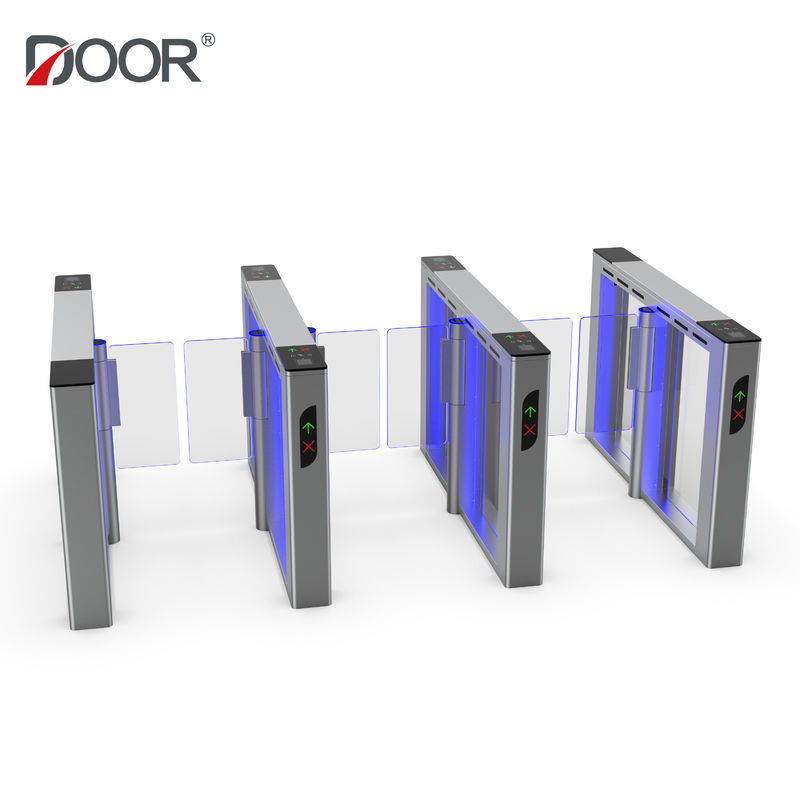

SUS304 stainless steel high speed gate turnstile with face recognition
Description of Speed Gate DR.TD.6621L
Our Speed Gate Turnstile is self-designed,the design is simple and stylish.Funtional safety and convenient.
Widely used in Commercial Buildings,School,Airports, Metro Stations,Government Institutions,Scenic area, Gyms etc.
The whole product structure adopts stainless steel laser cutting and CNC bending forming. Through using advanced processing technology and strict quality control, the product shape is simple and elegant.
The product integrates various types of card readers, two-dimensional code, face recognition, etc., which can easily integrate ID card, IC card, biometric and other reading and writing devices, To meet the needs of the fire channel, a dedicated fire button is set in the system which interface to automatically open the gate in an emergency and organize personnel to evacuate.
Product Paramater
| Structure Parameter | |
| Material | SUS304 brushed stainless steel, top cover 2.0mm, whole body 1.5mm |
| Swing gate material | Acrylic |
| Channel Width | Standard 600mm, max 1100mm |
| Technical Parameter | |
| Passing Speed | 40-50 personal/min |
| Opening Speed | Adjustable, fastest 0.3s |
| Working Temperature | -25℃-+70℃ |
| Mean Cycles Between Failure | 5 million times |
| IP Rating | IP42 |
| Electric Parameter | |
| Voltage | AC110/AC220 50-60Hz |
| Output Power | Single Core 50W, dual core 95W |
| Driving Motor | DC brushless motor |
| Method of position | Use the encoder to make sure the swing gate position |
| Communication interface | RS485, TCP/IP interface |
| Input / Output signal | dry contact signal input, 8-pair infrared sensor |
Functions of Speed Gate
1. The chassis panel provides the installation area for card swiping and QR code, and reserves the installation location for face recognition
2. Free passage when power off, in line with fire protection requirements; provide power-on self-check function
3. The characteristics of this gate is fast, and the opening/closing speed can reach 0.3 seconds
4. Driven by servo motor, stable and reliable operation, low noise and long life.
5. It has an alarm function to protect the normal opening of pedestrians to smoothly pass through the channel and prevent tailgating.
With a direction indicator, it shows the current state of the passage to pedestrians and guides pedestrians to pass correctly and quickly.
Product Structure
Product Dimenssion
Product real pictures of DR.TD.6621L
Pedestrian Turnstile gates Applications
Pedestrian turnstile gates have a wide range of applications. Since pedestrian turnstile gates are used to control people traffic flow, for entrance security, and for identification purposes. The gates can really be used anywhere. These turnstiles are most often used in high-traffic transportation hubs like subway systems, train stations, airports, and bus terminals. Also They are used at high-end buildings, offices, gyms, football stadium, etc. They can even be fitted with card reader for completely autonomous operation, as well as QR code readers, face readers and fingerprint readers. DOOR can provide a wide range of integration with these readers.
FAQ
1. What is the strength of your company in this industry?
A. Established in 2011, having over 10-year manufacturer experience.
B. Having metal sheet factory, assembly factory and office over 10,000㎡, can cover a high volume production.
C. There is an over 200-person R&D team, including pedestrian turnstiles and parking software and firmware developing, structuring and testing person.
D. Listed company, have a high and strict process of orders, production and shipping.
E. Modern machinery for production, such as Laser Cutting Machine, Grooving, bending, welding, engraving,etc. More detailed pics can check our factory info.
2. What’s your capacity of your factory?
Yearly capacity:12,000units for pedestrian turnstile gate, 20,000units for parking devices.
3.What are your optional list for your products?
Wireless control for pedestrian turnstiles, housing color changing, size changing, material SUS316 available, logo printing, add photocell quantity, etc.
4. Could you tell us your after-sale service?
Timely support is a necessary. We provide free online support 24/7.
We are expanding overseas outlets to cover your after-sale service.
5. What would you do after the warranty?
We provide 12-month warranty, some of high products are with 24 months warranty. If out of warranty, we will provide free lifetime online services, and help to replace accessories.
