Listed Pedestrian Turnstile and Parking Devices Manufacturer for over 15 Years!
Stock Code:832966
| Place of Origin: | China |
|---|---|
| Brand Name: | DOOR |
| Certification: | CE / IS09001 |
| Model Number: | DR.TD.6626 |
| Minimum Order Quantity: | 1 lane |
| Price: | Negotiable |
| Packaging Details: | wood carton |
| Delivery Time: | 5-7 working days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C, D/A, D/P |
| Supply Ability: | 2500 sets per month |
| Motor: | Servo Motor | Material: | 304 Stainless Steel |
|---|---|---|---|
| Size: | L1600×W180×H1020mm | Power Supply: | AC110/AC220+/-10% |
| Channel Width: | 550mm-1100mm | Working Environment: | Indoor |
| Color: | Silver | Communication Interface: | RS485,dry Contact |
| Warranty: | One Year | Unlock Time: | 0.2s |
| High Light: | AC220V Speed Gate Turnstile,AC110V Speed Gate Turnstile,RS485 Pedestrian Turnstile Gate |
||

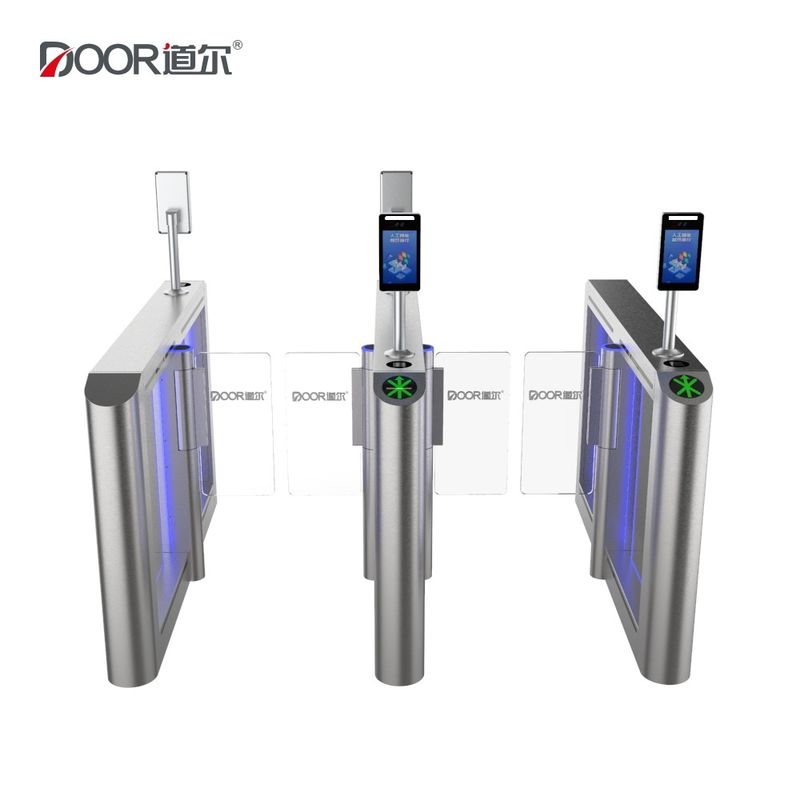

Speed Gate Servo Motor Full Automatic High Speed Gate Pedestrian Turnstile Gate
Pedestrian Turnstile Gate Parameter:
| Material | SUS304 brushed stainless steel, top cover 2.0mm, whole body 1.5mm, Acrylic Arm. |
|---|---|
| Size | L1600*W180*H1020mm |
| Passage Width | standard 550mm, max 1100mm |
| Passing Speed | 35-40 personal/min |
| Opening Speed | Adjustable, fastest 0.3s |
| Working Temperature | -25℃-+70℃ |
| Mean Cycles Between Failure | 8 million times |
| IP Rating | IP42 |
| Voltage | AC110V/AC220V±10% 50-60Hz |
| Operating Power | Single Core 100w, dual core 200w |
| Driving Motor | Servo motor |
| Method of Position | Use the encoder to make sure the swing gate position |
| Communication Interface | RS485, TCP/IP interface |
| Input Signal | Dry contact signal or +12V level signal or DC 12V |
| Number of Sensor | 8 groups |
| MBCF | 8 million times |
1. This speed gate with 485 interface for long-distrance control concern. 2. Anti-rush function: If there is no open single, arm will be holding tightly. 3. Double anti-clipping function: Photocell anti-clipping and mechanical anti-clipping. When passenger is going through the swing barrier, photocell will detect out this situation and will not close. After passenger passed, arm will close automatically. During its reposition, if arm meets any obstacle, arm will get back automatcially or stop working for a while with very slight force.Also it will alarm. 4. Swing barrier is with standard electrical interface for the integration of various readers and writers. 5. Direction display to guide passenger which direction is to go.
