Listed Pedestrian Turnstile and Parking Devices Manufacturer for over 15 Years!
Stock Code:832966
| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | DOOR |
| Certification: | CE / IS09001 |
| Model Number: | WD.TD.6380X |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | wooden carton |
| Delivery Time: | 5-7 working days |
| Payment Terms: | T/T, Western Union, MoneyGram, D/P, D/A, L/C |
| Supply Ability: | 2500 sets per month |
| Material: | 304 Stainless Steel | Product Name: | Tripod Turnstile |
|---|---|---|---|
| Warranty: | 1 Year | Dimension: | 1200*280*1000mm |
| Passing Speed: | 20 Persons/min | Application: | Hotel,airport,Airport/Bus Station,school |
| Communication: | RS485 TCP/IP | Passage Width: | 600mm |
| Relative Humidity: | No Condensation,≤90% | ||
| High Light: | 40W Tripod Turnstile Gate,1200*280*1000mm Tripod Turnstile Gate,1200*280*1000mm Automatic Turnstiles |
||

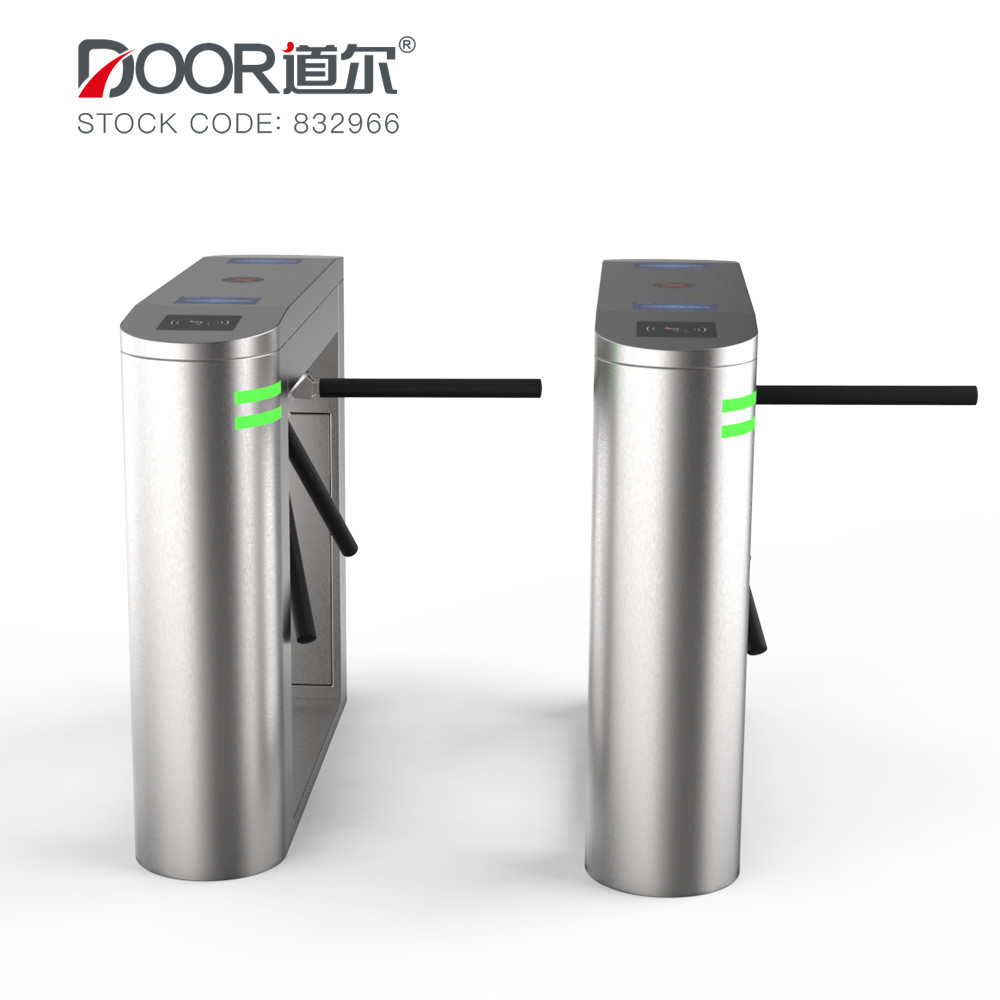

This Tripod Turnstile full body made of 304# stainless steel;consist of three bars,mechanism,electric circuit,electromagnetic,hydraulic damper,led lamp and so on.Three Arm Tripod Turnstile is the most economic pedestrian access control.With standard fire interface,arm can drop down for evacuation even power is not cut off when fire alarm triggered.Anti-passback,when arm rotates 60 degree,pelple cannot reverse back.With hydraulic damper,low impact sound and high durability:the 3 arms can rotate in one or two directions,controllled by an acess control system or push button at a recption desk.
| Basic parameters: | |
| Dimensions | 1200*280*1000mm |
| material | 1.2mm thick SUS304 |
| Gate length | 510mm |
| Channel width | ≤600mm |
| Working temperature | -15 degrees to 60 degrees |
| Working environment | indoor and outdoor |
| Technical Parameters: | |
| Input voltage | 110V/220V |
| Driving voltage | 24V |
| Equipment power | 40W |
| Passing speed | 20 people / min |
| Communication interface | RS485 |
| Communication distance | less than 1200m |
| Broken lever | Power off lever mode |
| Open signal input | Dry contact |
