| Place of Origin: | Shenzhen,China |
|---|---|
| Brand Name: | DOOR |
| Certification: | CE / IS09001 |
| Model Number: | DR.TD.6626 |
| Minimum Order Quantity: | 2 sets |
| Price: | negotiable |
| Packaging Details: | wooden carton |
| Delivery Time: | 5-7 working days |
| Payment Terms: | T/T |
| Supply Ability: | 2500 sets per month |
| Product Name: | RFID Card Biometric Access Control Retractable Swing Gate Turnstile For Gym Center | Material: | SUS304 Brushed Stainless Steel |
|---|---|---|---|
| Voltage: | AC110V/AC220V±10% | Driving Motor: | Real Servo Motor |
| Size: | L1600×W180×H1020mm | Passage Width: | 550mm~1100mm |
| Warranty: | 1 Year | Type: | Single Core ; Double Core, |
| Working Environment: | Indoor/outdoor | Other: | Swiping Cards; Face Recognition Etc |
| High Light: | RFID Card Swing Gate Turnstile,Biometric Swing Gate Turnstile,RFID Card Turnstile |
||

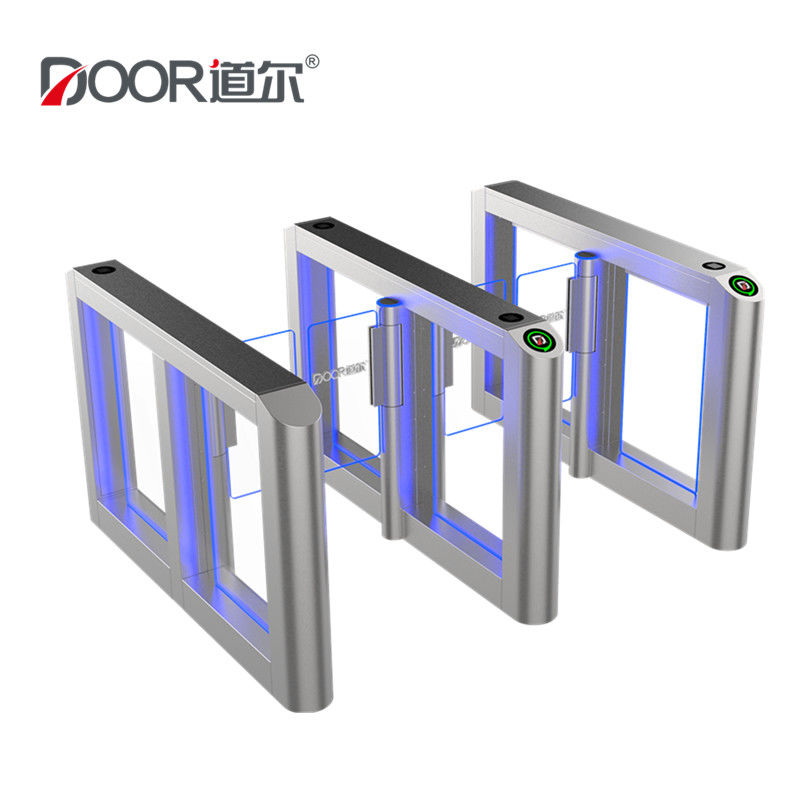

RFID Card Biometric Access Control Retractable Swing Gate Turnstile for Gym Center
Product Description:
The lobby swing gate is the popular system that provide fast access clearance with minimum supervise observation.
The blockage is provided by two acrylic wings. The lanes can be configured for entry, exit or bi-directional access. It is widely used in areas such as subway, immigration checkpoint, airport, factory, etc.
Each lane is fitted with safety beams to ensure proper access clearing. Options to cater for children and wheelchair users are available.
Our modern motor mechanism will disengage the arm when it is obstructed from opening or closing, providing an additional safety for pedestrians.
Product Parameter:
|
Structure Parameter |
|
|
Material |
SUS304 brushed stainless steel, top cover 2.0mm, whole body 1.5mm |
|
Swing gate material |
12mm thickness PC |
|
Channel Width |
550mm Customized Max: 1100mm |
|
Technical Parameter |
|
|
Passing Speed |
30-35 personal/min |
|
Opening Speed |
Adjustable <1S |
|
Working Temperature |
-25℃-+70℃ |
|
Mean Cycles Between Failure |
5 million times |
|
IP Rating |
IP24(if used outdoor, recommend to build a canopy) |
|
Electric Parameter |
|
|
Voltage |
AC110/AC220 50-60Hz |
|
Power |
Single Core 35w, dual core 60W |
|
Driving Motor |
servo motor |
|
Method of position |
Motor drive |
|
Communication interface |
RS485 |
|
Input / Output signal |
dry contact signal input, 8-pair infrared sensor |
Gym Barrier Gate Key Features:
The lanes can be configured for entry, exit or bi-directional access.
The acrylic will retract upon receiving valid signal and close immediately after the pedestrian crosses.
The side hinge door provides an easy avenue for maintenance .
Customization to include card reader, biometric finger print, ticket collection etc., is possible.
Each lanes comes with Infrared (IR) beam sensor to ensure safe access. It can be extended to detect 3 levels of heights, including height of children, which are lower.
The motor will disengage when an object tires to block the flap from closing, providing an additional safety mechanism for the pedestrian.
Warranty Service Statement:
Our company products are guaranteed for one year, from date of sale, providing free maintenance based on not being damaged by any man-made.
During the warranty period, all faults caused by the product itself can be maintained for free. Please carry the filled warranty card and the purchase invoice to the authorized service centers across the country or return the machine to our company for free repair.
Within the period of free maintenance, faults or damages caused by man-made or natural disasters can be maintained with additional charge.
Over the period of free maintenance, faults or damages can be maintained with additional charge. The following conditions are not under warranty:1. Damages caused by abnormal operation, man-made or natural disasters;2. Damages after disassembling any portion of the machine (lines, components etc.) ;3. Damages caused by wrong guide of non-professional technicians;4. Damages caused by adding other functions with unauthorized modification or installation with other equipment.
