Listed Pedestrian Turnstile and Parking Devices Manufacturer for over 15 Years!
Stock Code:832966
| Place of Origin: | China |
|---|---|
| Brand Name: | DOOR |
| Certification: | CE / IS09001 |
| Model Number: | DR.TD.6628 |
| Minimum Order Quantity: | 1 lane |
| Price: | Negotiable |
| Packaging Details: | wood carton |
| Delivery Time: | 5-7 working days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C, D/A, D/P |
| Supply Ability: | 2500 sets per month |
| Motor: | Servo Motor | Material: | 304# Stainless Steel |
|---|---|---|---|
| Size: | L1600×W140×H1000mm | Power Supply: | AC110/AC220+/-10% |
| Weight: | 80kg | Channel Width: | 550mm-1100mm |
| Working Environment: | Indoor | Color: | Red Wine And Black |
| Communication Interface: | RS485,dry Contact | ||
| High Light: | RS485 Entrance Barrier Gate,1100mm Entrance Barrier Gate,RS485 Airport Turnstile |
||

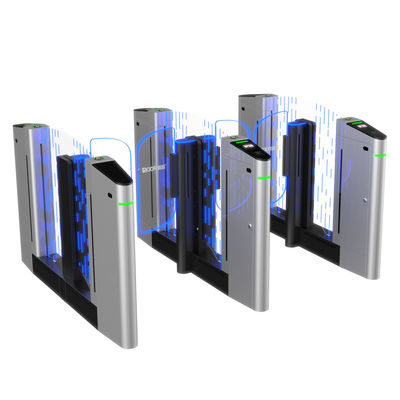

Fully Automatic Speed Lane Crowd Entrance Barrier Speed Gates For Airports And Lobbies
Speed gate can easily be integrated into access control RFID system,mifare system face recognition, fingerprint, barcode or time attendance reader which is an ideal solution for metro station, stadium, factory and commercial building. The swing turnstile gates are well adopted in entrances and exits of buildings or construction sites, to help tracking staffs and visitors. Only authorized users are able to access to specific areas through the swing turnstile entrance security gate.
Product name | Speed gate |
Model | DR.TD.6628 |
Material | Cold rolled sheet + baking finish (thickness 1.5mm)+10mm Acrylic Arm |
Size | 1600 140*1000mm |
Bar Width | Customized |
Bar material | Tempered glass |
Passage direction | single directional/bi- directional |
Pass rate | 30- 50 persons/min |
Infrared sensors | 8 pairs |
Motor | servo motor,50-100w/24v |
Power input | AC100- 240V,50/60HZ |
Working voltage | 24V |
Working humidity | ≤95% |
Working temperaturer | -20°C-+70°C |
working enviroment | Indoor/outdoor(Build canopy) |
Communitcation interface | RS485 |
Access control system | ID/IC card ,fingerprint, face recognition,Barcode/QRcode,phone app, visitor system,etc |
Installation pictures:
Packing & Delivery:
Packaging details | |
Size(mm) | 1680 (L) * 220 (W) * 1160 (D) |
Weight | 90 KGS |
Packaging Details | plywood box |
Delivery: Suggest for the sea shipping by containers, we also could send by air, express DHL,TNT,etc if emergency using.
Forwarders for optional and negotiation.
