Place of Origin: | China |
---|---|
Brand Name: | DOOR |
Certification: | CE / IS09001 |
Model Number: | DR.TD.6626 |
Minimum Order Quantity: | 1 lane |
Price: | Negotiable |
Packaging Details: | wood carton |
Delivery Time: | 5-7 working days |
Payment Terms: | T/T, Western Union, MoneyGram, L/C, D/A, D/P |
Supply Ability: | 2500 sets per month |
Motor: | Servo Motor | Material: | 304 Stainless Steel |
---|---|---|---|
Size: | L1600×W180×H1020mm | Power Supply: | AC110/AC220+/-10% |
Channel Width: | 550mm-1100mm | Working Environment: | Indoor |
Color: | Silver | Communication Interface: | RS485,dry Contact |
Warranty: | One Year | Unlock Time: | 0.2s |
High Light: | 550mm Channel Swing Turnstile Barrier,IP42 Swing Turnstile Barrier,40personal/Min Access Control Swing Turnstile |

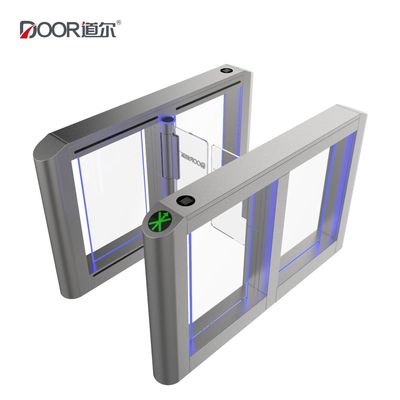

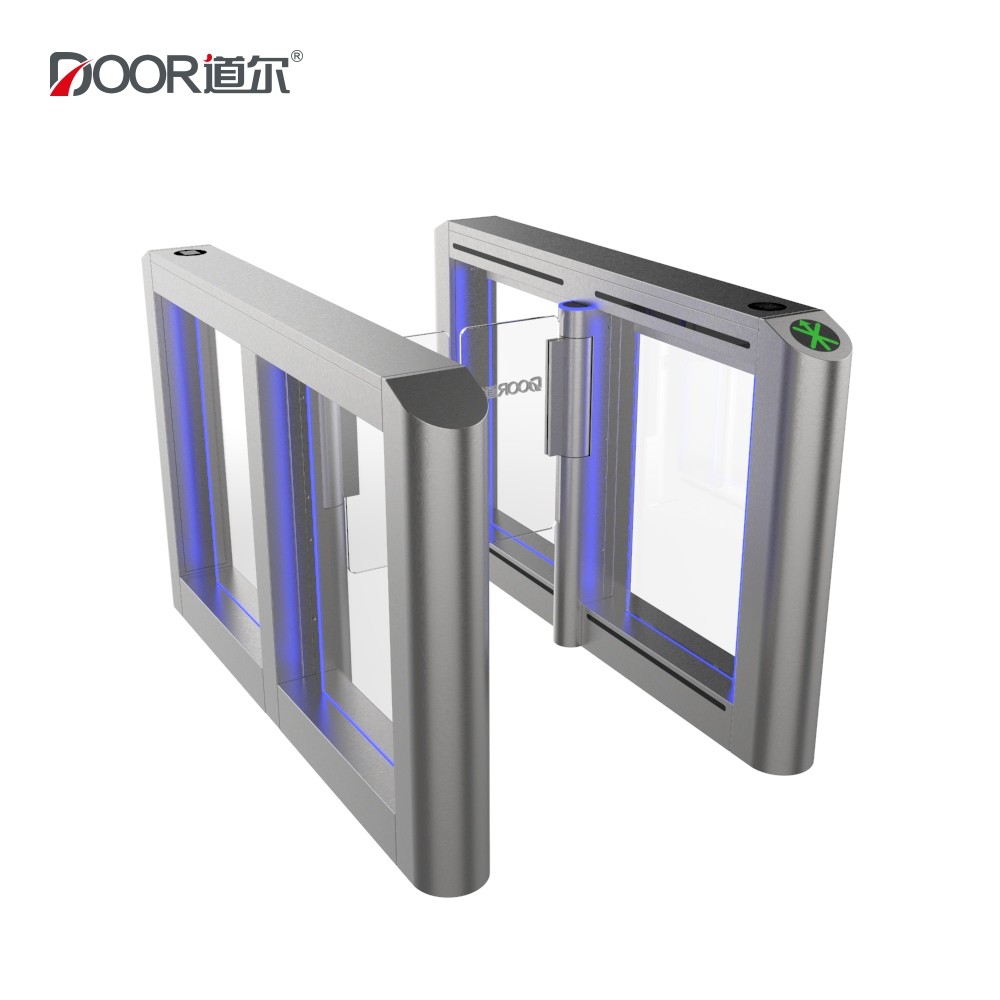

Automatic Security Swing Turnstile Barrier Fast Speed Gate With Access Control System
Product Parameter:
Material | SUS304 brushed stainless steel, top cover 2.0mm, whole body 1.5mm, Acrylic Arm. |
---|---|
Size | L1600*W180*H1020mm |
Passage Width | standard 550mm, max 1100mm |
Passing Speed | 35-40personal/min |
Opening Speed | Adjustable, fastest 0.3s |
Working Temperature | -25℃-+70℃ |
Mean Cycles Between Failure | 8 million times |
IP Rating | IP42 |
Voltage | AC110V/AC220V±10% 50-60Hz |
Operating Power | Single Core 100w, dual core 200w |
Driving Motor | Servo motor |
Method of Position | Use the encoder to make sure the swing gate position |
Communication Interface | RS485, TCP/IP interface |
Input Signal | Dry contact signal or +12V level signal or DC 12V |
Number of Sensor | 8 groups |
MBCF | 8 million times |
1. Possesses fault self-detection and alarm prompt functions, to facilitate maintenance and utilization for users. 2. Possesses the security protection measure of infrared sensor detection to ensure passing safety of pedestrians, and also possesses pedestrian anti-collision alarming function. 3. Partial swing gates and flap gates possess the function of automatic opening after power-off, to meet the requirement of fire emergency. 4. Multi-working modes are available, and can be completely set and switched through the built-in small keys on the main control board, which is convenient for operation. 5. The fire alarm interface is equipped: the gate will open automatically for free passing when the system receives the fire alarm signal. 6. Possesses the card reading and memorizing function; users can set the multiple-time card reading for passing or single-time card reading for passing by themselves in the control board. 7. Possesses automatic resetting function: after reading the valid card, the system will automatically cancel the passing permission if the card-owner does not pass the swing gates in the stipulated time 8. Possesses the humanized indication for passing and voice prompt function to facilitate quick passing of pedestrians. 9. Possesses uniform standard electrical interfaces externally so that it can work with multiple card readers, realizing the remote management by computer operations. 10. Possesses high reliability: key components (such as electric motor, and reducer) can run for 3 million times, and it does not need replacement. 11. The entire system operates steadily, low noise, and without obvious mechanical shock.
