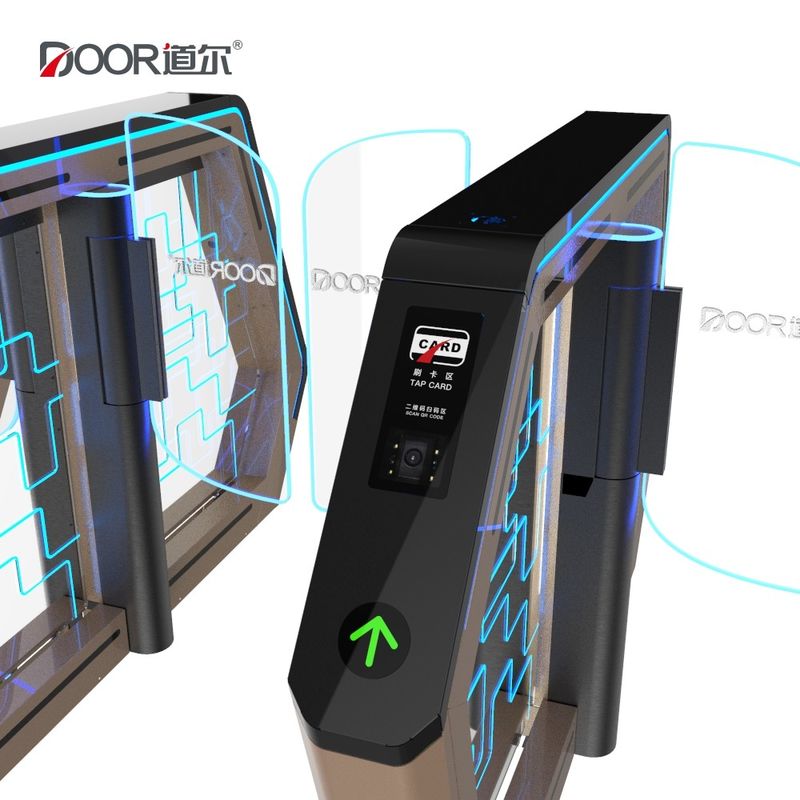

900mm Width SUS304 Brushed Pedestrian Turnstile Gate 50W

SUS304 Brushed Stainless Steel Security Gate Card Reader 1.5mm With LED Light

Product Features

1. Full modernized design, fast pass speed.
2. Slim machine structure, save the installation space.
3. By using 8 pairs of military level high-performance infrared sensors and exact algorithms, it can accurately detect the pedestrian’s passing position to achieve the purposes such as anti-tailgating, anti-reverse passing and anti-clamping etc.
4. Use the multiple anti-clamping designs to protect the personal safety of passengers in maximum limit.
5. The widen lane is optional for carrying luggage and wheelchair access.
6. Equipped with the dry contact signal input interface, RS485 interface, TCP/IP interface(optional), compatible with all kinds of access controllers.

Device Parameter:

Product Function

Basic Function

• Passing mode switching function: Settable. controlled mode/free mode/forbidden mode
• Automatic reset function:The turnstile will open swing gate after receiving the valid opening signal when standby. The swing gate will return to the hindered zero position automatically under the following situation:
• Within the allowed time, pedestrians have been detected to pass through the passageway in specified direction;
• Over the allowed time, there is no people passing through the passageway
• Self-recovery function: The swing gates do not return to the hindered zero position because of human intervention. After revoking human intervention, the gate automatically return to the hindered zero position.
• Automatic adjustment function: When the turnstiles need to re-adjust because of mechanical wear, the main control board can adjust automatically, accurately and conveniently
• Memory function: Can count the number of person and passing times
• Passing indication function:
• Direction indicator: The direction indicator is installed on the top of the housing cabinet to indicate the valid passing direction.
• Passing status indicator: It is installed inside the housing cabinet side, indicating whether the swing gates can open after receiving valid open signal.
• Compatibility: Equipped with the dry contact signal input interface, RS485 interface, TCP/IP interface (optional), compatible with all kinds of access controller.

Security Design Function

• Self-check function when power on: The system will self-check routinely and alarm when the power is on, and intelligently detect the key hardware and function. Find the hidden danger within the shortest time!
• Emergency EXIT: Adopt the leading mechanical structure by original creation; the system will open swing gate automatically when power off or manually push the gate to be open so as to evacuate people conveniently, which meets the firefighting requirement.
• Anti-collision function: When the gate is locked, it can support the impulse force within the safety range. The gate can be manually pushed slowly when the impulse force is over the safety range, so as to protect the mechanism. After revoking human intervention, swing gate automatically return to the hindered zero position.
• Intelligent linkage alarm: Illegal traffic events can be linked with other alarm monitoring equipment: such as access control systems, video management systems. Also the following situations will be alarmed: tailing, reverse passing, invalid entering, etc.
• Anti-tailgating function: Will be alarmed when tailgating

Application:

Widely used in commercial and management office buildings, ministries, government service halls, public buildings, banks and financial institutions, airports, hotels, clubs, high-end residential areas, schools, colleges and universities, industrial facilities, etc.

FAQ:

Q1: Do you have English version system?

A: Yes, we can provide English version system. Also you can use your own system as well.

Q2: Does the equipement include control board?

A: Yes, it is with control board. But if need our system to management, need to order extra channel management control board.

Q3: Can we connect your access control system with our system?

A: Yes, we provide SDK and Software development service with connection port.

Q4: How can we install the turnstiles/barrier gates? Is it easy?
A:Yes, it's easy to install, we have done most of the jobs before sending our products. You just need fix the gates with screws, and connect power supply cables and internet cables.Also we provide one sheet of specific manual specification in the package.

Q5: What is your company’s strength?

A: We are the top 3 manufacturer in turnstile field in China. And we are listed company with famous brand in China. We have more than 400 employees, a R&D group with 160 people, 15-person customized team, 18 offices, 9 agents and more than 20 distributors all around China.

Q6: How do you do after-sale service?

A: We provide life-time technology support on line, by emails, video, phone etc. We have engineer speaking English, convenient to communicate with you directly.

Q7. How about the lead time?

Normally we have raw material in stock for the hot sale models of standard products. Regular products need 5-7 working days. The customized products need 15-20 working days.
