Listed Pedestrian Turnstile and Parking Devices Manufacturer for over 15 Years!
Stock Code:832966
| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | DOOR swing gate turnstile |
| Certification: | CE / IS09001 |
| Model Number: | DRTD6653 |
| Minimum Order Quantity: | 2 sets |
| Price: | negotiable |
| Packaging Details: | wooden carton |
| Delivery Time: | 5-7 working days |
| Payment Terms: | Western Union, T/T, MoneyGram, D/P, D/A, L/C |
| Supply Ability: | 2500sets per month |
| Size: | 1600mm*210mm*1000mm | Motor: | DC Blushless Driving Motor |
|---|---|---|---|
| Material: | SUS304 Stainless Steel | Voltage: | AC110V/AC220V±10% |
| Channel Width: | <1200mm | Humidity: | ≤ 95% RH, Non-condensing |
| Passing Speed: | 30-35 Personal/min | Output Power: | Single Core 50W, Dual Core 95W |
| High Light: | 50W Face Recognition Access Control System,SUS304 Face Recognition Access Control System,RS485 Swing Turnstile Barrier Gate |
||

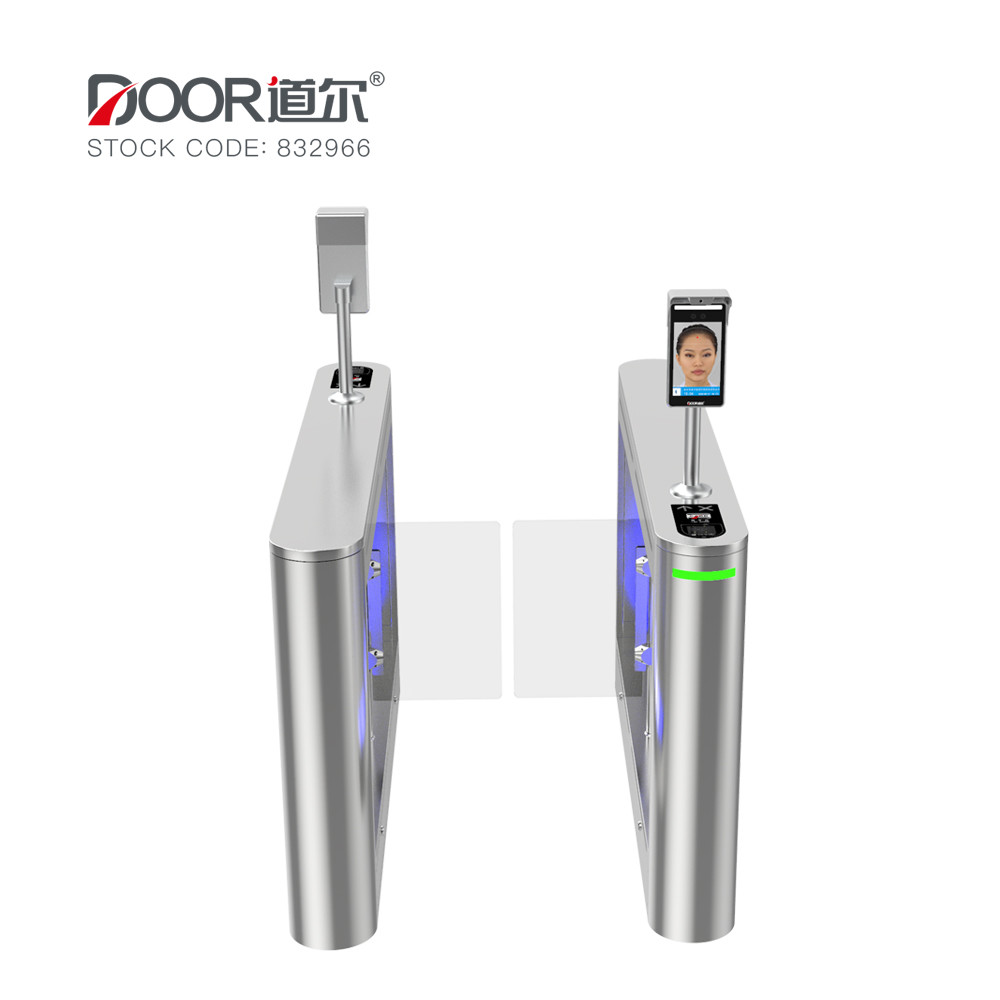

Face Recognition Access Control System Swing Gate Turnstiles
Product Features
1.Adopt triple pedestrian protection: infrared sensor anti-pinch; traffic logic anti-pinch; return when
blocked;
2.With normally closed mode and peak traffic mode, the normally closed mode is divided into two
modes: normally closed locking and normally closed non-locking;
3.With memory opening, delay closing and overtime closing functions; the number of passers-by
counting function;
4.With zero self-check function, it is convenient for users to maintain and use;
5.The chassis panel provides a swipe card or QR code installation area, and a face recognition
installation position is reserved;
6.Power-off free passage, in line with fire protection requirements; provide power-on self-check
function;
Product Parameter
| Structure Parameter | |
| Material | SUS304 brushed stainless steel, top cover 2.0mm, whole body 1.5mm |
| Swing gate material | Acrylic/Stainless steel |
| Channel Width | Standard 550mm, max 1100mm |
| Technical Parameter | |
| Passing Speed | 30-35 personal/min |
| Opening Speed | Adjustable |
| Working Temperature | -25℃-+70℃ |
| Mean Cycles Between Failure | 5 million times |
| IP Rating | IP65 |
| Electric Parameter | |
| Voltage | AC110/AC220 50-60Hz |
| Output Power | Single Core 50W, dual core 95W |
| Driving Motor | DC brushless motor |
| Method of position | Use the encoder to make sure the swing gate position |
| Communication interface | RS485, TCP/IP interface |
| Input / Output signal | dry contact signal input, 6-pair infrared sensor |
Dimension
Factory:
Our factory covers 6000 square meters. We can provide OEM/ODM service.
Application
