Listed Pedestrian Turnstile and Parking Devices Manufacturer for over 15 Years!
Stock Code:832966
| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | DOOR |
| Certification: | CE / IS09001 |
| Model Number: | WD.MJ.3002B |
| Minimum Order Quantity: | 1 Piece |
| Price: | Negotiable |
| Packaging Details: | Carton Box |
| Delivery Time: | 5-7 Working Days |
| Payment Terms: | T/T |
| Supply Ability: | 20000 piece per month |
| Size: | L136×W26×H252mm | Screen Size:: | 8" IPS Screen |
|---|---|---|---|
| Operation System: | Linux OS/Windows | Working Temperature: | -30℃ - +60℃ |
| NetWork: | 4G Module、Wifi、Bluetooth | Power: | DC12V/2A |
| Face Capacity: | 24000pcs | Protect Level: | IP66 |
| Face Recognition Accuracy Rate: | 99% | MTBF: | >50000H |
| High Light: | 20W Face Recognition Access Control System,DC12V Face Recognition Access Control System,IK07 Facial Recognition Entry System |
||

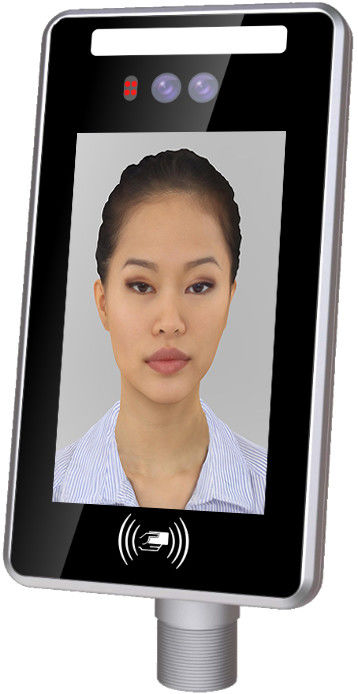

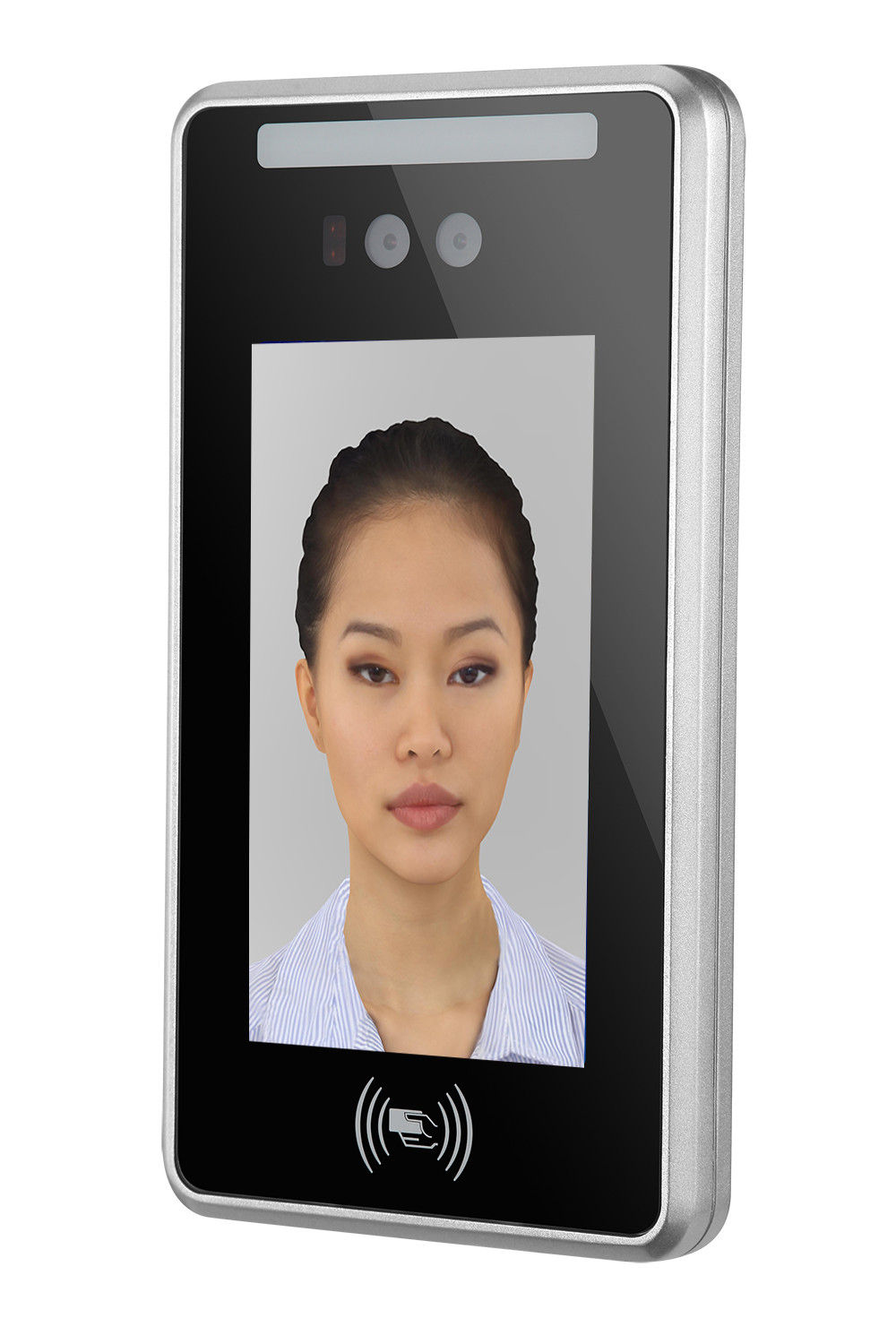

Wall-Mounted Face Recognition Terminal With Card Reader To Office Access Control
Functions:
Technical Parameters of Facial Recognition Entry System:
| Hardware | ||
| Processor | Dual Core Processor + 1G memory + 16G flash | |
| Operating system | Linux Operating system | |
| Storage | TF Card | |
| Viewing angle | Vertical viewing angle: 30°; Horizontal viewing angle: 30° | |
| Sensor | 1/2.8" Progressive Scan CMOS | |
| Lens | 6mm | |
| Speaker | voice playback content can be customized | |
| Performance | ||
| Recognition height | 1.2~2.3M, angle adjustable | |
| Recognition distance | 0.5~1.5 meters, depends on lens | |
| Recognition time | Less than 0.5 seconds | |
| Storage capacity | 160,000 capture records | |
| Face capacity | 24000pcs | |
| Support card type | (13.56MHz) Mifare, NFC | |
| Interface | ||
| Switching output | 1 way switch output, other GPIO port can be customized | |
| Network interface | 1 RJ45 10M / 100M adaptive Ethernet port, Gigabit Ethernet port can be customized | |
| Wiegand interface | 1ch Wiegand interface input/output | |
| Communicate interface | 1ch RS485 interface | |
| USB interface | 1ch USB interface | |
| Camera | ||
| Camera | Dual cameras | |
| Effective pixels | 2MP, 1920*1080 | |
| Min Illumination | Color 0.01Lux @F1.2(ICR);B/W 0.001Lux @F1.2 (ICR) | |
| SNR | ≥50db(AGC OFF) | |
| WDR | 120db | |
| Video coding | H.265 Main Profile/ H.264 BP/MP/HP /MJPEG | |
|
|
|
50Hz: 25fps (1920×1080,1280×720) |
| 60Hz: 30fps (1920×1080,1280×720) | ||
| Sub Stream |
720*576,1-25(30)fps/640*480,1-25(30)fps 320*240,1-25(30)fps |
|
| Regular | ||
| Operating temperature | -30℃ - +60℃ | |
| Working humidity | 0～90% relative humidity, no condensation | |
| Salt spray | level Rp6 or above | |
| Anti Static | contact ±6KV, air ±8KV | |
| Power | DC12V/3A | |
| Waterproof | IP66 | |
| Power | 20W(MAX) | |
| Equipment size | 252 (L) * 136 (W) * 26 (T) mm | |
| Screen size | 8 inches IPS HD screen | |
| Weight | 1.7 kg | |
Size
FAQ
Q1: Do you have English version system?
A: Yes, we can provide English version system. Also you can use your own system as well.
Q2: Does the equipement include control board?
A: Yes, it is with control board. But if need our system to management, need to order extra channel management control board.
Q3: Can we connect your access control system with our system?
A: Yes, we provide SDK and Software development service with connection port.
Q4: How can we install the turnstiles/barrier gates? Is it easy?
A:Yes, it's easy to install, we have done most of the jobs before sending our products. You just need fix the gates with screws, and connect power supply cables and internet cables.Also we provide one sheet of specific manual specification in the package.
Q5: What is your company’s strength?
A: We are the top 3 manufacturer in turnstile field in China. And we are listed company with famous brand in China. We have more than 400 employees, a R&D group with 160 people, 15-person customized team, 18 offices, 9 agents and more than 20 distributors all around China.
Q6: How do you do after-sale service?
A: We provide life-time technology support on line, by emails, video, phone etc. We have engineer speaking English, convenient to communicate with you directly.
Q7:How about the lead time?
Normally we have raw material in stock for the hot sale models of standard products. Regular products need 5-7 working days. The customized products need 15-20 working days.
Q8: How many years of warranty?
A: We provide 1 year warranty for our products.
