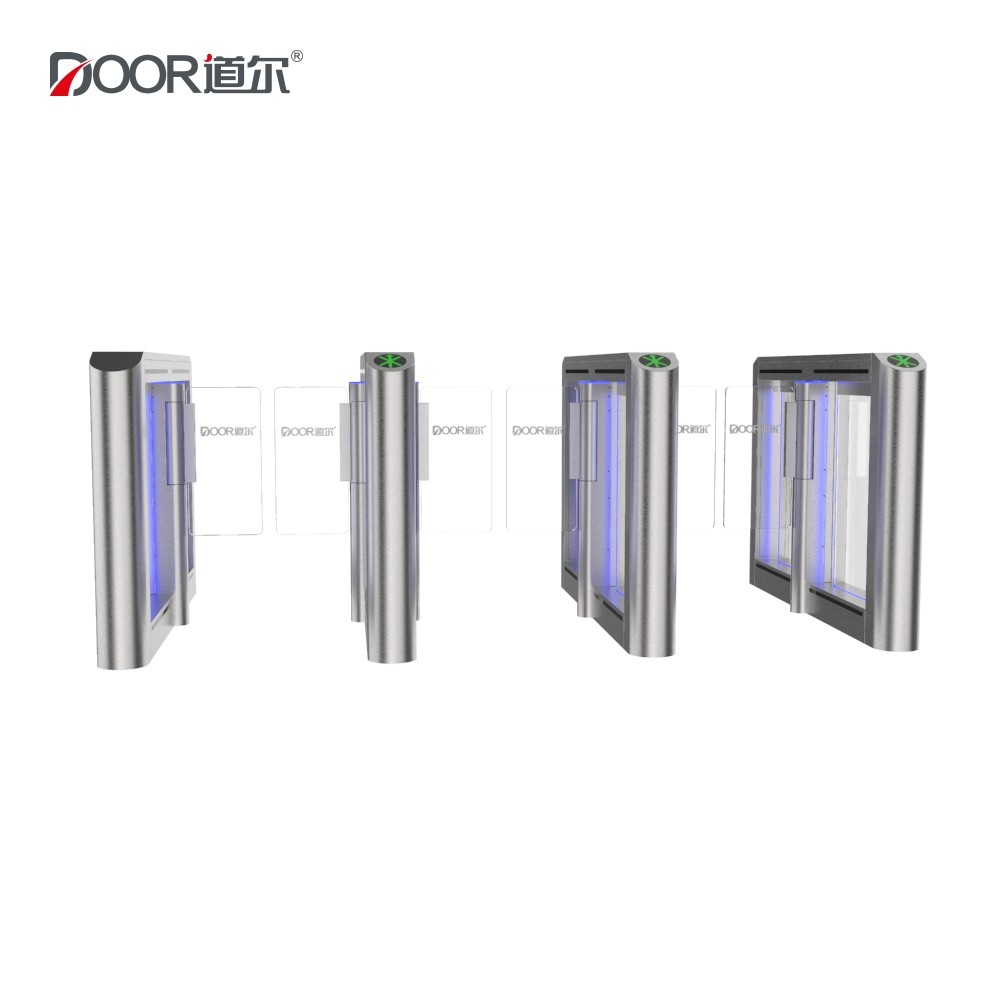

QR Code Reader sus304 RS485 Access Control Turnstile Gate 100w

QR Code Reader sus304 RS485 Access Control Turnstile Gate 100w
QR Code Reader sus304 RS485 Access Control Turnstile Gate 100w QR Code Reader sus304 RS485 Access Control Turnstile Gate 100w QR Code Reader sus304 RS485 Access Control Turnstile Gate 100w QR Code Reader sus304 RS485 Access Control Turnstile Gate 100w QR Code Reader sus304 RS485 Access Control Turnstile Gate 100w QR Code Reader sus304 RS485 Access Control Turnstile Gate 100w
Basic Information
Place of Origin: China
Brand Name: DOOR
Certification: CE / IS09001
Model Number: DR.TD.6626
Minimum Order Quantity: 1 lane
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 5-7 working days
Payment Terms: T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability: 2500 sets per month
Get Best Price Contact Now
Product Name: High Speed Security Swing Turnstile Swing Gate Motor: Servo Motor
Material: Sus304 Stainless Steel Size: L1600×W180×H1020mm
Power Supply: AC110/AC220+/-10% Channel Width: 550mm-1100mm
Working Environment: Indoor Color: Stainless Steel Color
Communication Interface: RS485,dry Contact Warranty: 1 YEAR
Highlight:

RS485 Access Control Turnstile Gate

,

Sus304 Access Control Turnstile Gate

,

100w Pedestrian Barrier Gate

CE Certified Speed Gate Systems With IC Card QR Code Reader And Facial Recognition To Fight COVID 19



Product Parameter:

1. Structure Parameter
Material: SUS304 brushed stainless steel (Top cover 2.0mm, whole body 1.5mm)
Swing arm available: Acrylic
Size: L1600×W180×H1020mm
2. Technical Parameter
Passage Width: Standard 550mm, max 1100mm
Passing Speed: 35-40 personal/min
Opening Speed: Adjustable, fastest 0.3s
Working Temperature: -25℃-+70℃
Mean Cycles Between Failure: 8million times
IP Rating: IP42
3. Electric Parameter
Voltage: AC110V/AC220V±10% 50-60Hz
Operating Power: Single Core 100w, dual core 200w
Driving Motor: Servo motor
Method of position: Use the encoder to make sure the swing gate position
Communication Interface: RS485, TCP/IP interface
Number of Sensor: 8 groups


Product Size:



QR Code Reader sus304 RS485 Access Control Turnstile Gate 100w 0

Main Features:



1. High-quality material:

Using high-precision SUS 304 stainless steel thick plate material, corrosion resistance, high temperature resistance, oxidation resistance, durable. Anti-fingureprint housing;
2. Servo Motor
Using Servo Motor,Highly stable and efficient. 1024 signal detection points are located accurately;
3. Multiple protection function
Anti-trailing:
Multiple sets of infrared beam monitoring can pass one person and one
card to personnel,to prevent trailing and alarm prompt.
Anti-reverse:
Precise actuarial calculation,infrared beam monitoring,reverse
passage,automatic blockade of channels,voice alarm prompt.
Anti-clip and anti-collision monitoring:
Triple safety protection mechanism to ensure the safe passage of person
A. Infrared anti-clip and anti-collision
B. Passing process logic anti-pinch and anti-collision
C. Current detection anti-clamp and anti-collision
4. Verify Access Mode
Swipe Card: Support IC/ID card,NFC card, CPU card,etc.
Fingerprint Recognition
QR Code: Mobile/Paper QR code
Face Recognition

Application:


Office and administrative buildings

Ministries and public buildings

Banks and financial institutions

Industrial installations

Residential areas

Schools, colleges and universities

QR Code Reader sus304 RS485 Access Control Turnstile Gate 100w 1

QR Code Reader sus304 RS485 Access Control Turnstile Gate 100w 2



FAQ:

Q1: Do you have English version system?

A: Yes, we can provide English version system. Also you can use your own system as well.

Q2: Does the equipement include control board?

A: Yes, it is with control board. But if need our system to management, need to order extra channel management control board.

Q3: Can we connect your access control system with our system?

A: Yes, we provide SDK and Software development service with connection port.

Q4: How can we install the turnstiles/barrier gates? Is it easy?
A:Yes, it's easy to install, we have done most of the jobs before sending our products. You just need fix the gates with screws, and connect power supply cables and internet cables.Also we provide one sheet of specific manual specification in the package.

Q5: What is your company’s strength?

A: We are the top 3 manufacturer in turnstile field in China. And we are listed company with famous brand in China. We have more than 400 employees, a R&D group with 160 people, 15-person customized team, 18 offices, 9 agents and more than 20 distributors all around China.

Q6: How do you do after-sale service?

A: We provide life-time technology support on line, by emails, video, phone etc. We have engineer speaking English, convenient to communicate with you directly.

Q7. How about the lead time?

Normally we have raw material in stock for the hot sale models of standard products. Regular products need 5-7 working days. The customized products need 15-20 working days.

Factory Show:



QR Code Reader sus304 RS485 Access Control Turnstile Gate 100w 3QR Code Reader sus304 RS485 Access Control Turnstile Gate 100w 4

QR Code Reader sus304 RS485 Access Control Turnstile Gate 100w 5
