Dc Blushless Motor High End Speed Swing Turnstile With High Door

Dc Blushless Motor High End Speed Swing Turnstile With High Door
Dc Blushless Motor High End Speed Swing Turnstile With High Door
Dc Blushless Motor High End Speed Swing Turnstile With High Door Dc Blushless Motor High End Speed Swing Turnstile With High Door Dc Blushless Motor High End Speed Swing Turnstile With High Door Dc Blushless Motor High End Speed Swing Turnstile With High Door Dc Blushless Motor High End Speed Swing Turnstile With High Door Dc Blushless Motor High End Speed Swing Turnstile With High Door Dc Blushless Motor High End Speed Swing Turnstile With High Door Dc Blushless Motor High End Speed Swing Turnstile With High Door Dc Blushless Motor High End Speed Swing Turnstile With High Door Dc Blushless Motor High End Speed Swing Turnstile With High Door
Basic Information
Place of Origin: China
Brand Name: DOOR
Certification: CE / IS09001
Model Number: DRTD6656
Minimum Order Quantity: 2 sets
Price: Negotiable
Packaging Details: wood carton
Delivery Time: 5-7 working days
Payment Terms: T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability: 2500 sets per month
Get Best Price Contact Now
Motor: DC Blushless Motor Material: 304 Stainless Steel
Size: L1600mm*W125mm*H1000mm Power Supply: AC110/AC220+/-10%
Channel Width: <1100mm Communication Interface: RS485,dry Contact
Method Of Driving: Encoder APP Debugging: Available
High Light:

1100mm Channel Speed Swing Turnstile

,

Speed Swing Turnstile RS485

,

IP42 Swing Barrier Gate

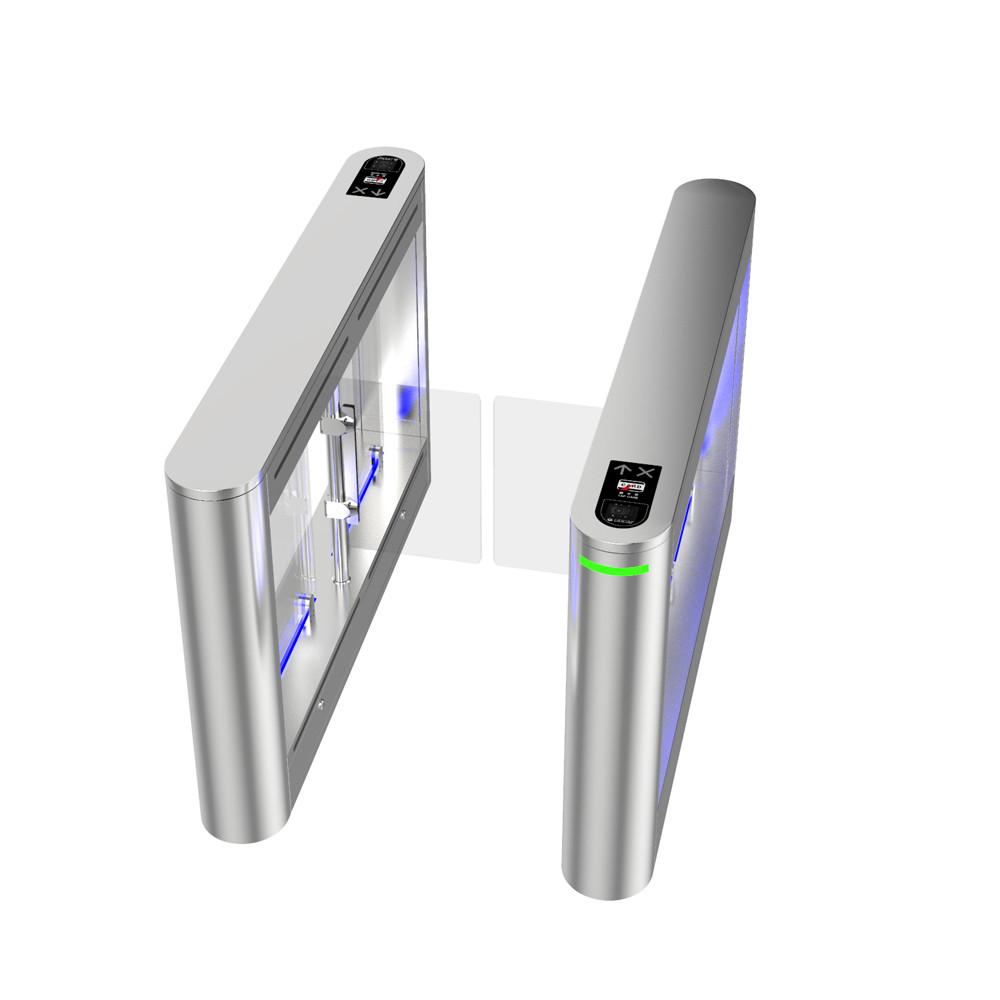

Dc Blushless Motor High End Speed Swing Turnstile With High Door



Product main features

  1. Person - vehicle seperated with safety design concept
  2. Brushless DC motor, encoder positioning
  3. Mobile APP debugging (optional)
  4. Slim body (only 125mm)
  5. Only single movement

Specifications of this swing gate:



Structure Parameter
Material SUS304 brushed stainless steel, top cover 2.0mm, whole body 1.5mm
Swing gate material Acrylic
Channel Width Standard 600mm, max 1100mm
Technical Parameter
Passing Speed 30-35 personal/min
Opening Speed Adjustable, fastest 0.2s
Working Temperature -25℃-+70℃
Mean Cycles Between Failure 5 million times
IP Rating IP42
Electric Parameter
Voltage AC110/AC220 50-60Hz
Output Power Single Core 30W, dual core 60W
Driving Motor DC brushless motor
Method of position Use the encoder to make sure the swing gate position
Communication interface RS485, TCP/IP interface
Input / Output signal dry contact signal input, 6 groups infrared sensor



Functions of swing gate turnstile:

  • Turnstiles can accommodate a variety of credential readers, it can be connected with identification equipment such as IC card, ID card, bar code card, fingerprint reader and various access control and visitor systems, and can be connected with various control systems, which is convenient for system integration.
  • Turnstiles can operate in a single direction or bi-directionally.
  • Passage modes are independent for each direction and include free pass, controlled passage or locked down. Free pass mode allows entry without authorization – often used when users are not required to card out to exit. Controlled passage requires a valid credential before permitting entry. Locked down mode remains locked and does not allow entry, even when presented with a valid credential.
  • Servo Motor,control speed, position accuracy is very accurate. Fast passing speed with 0.3s, and can be adjustable.
  • Anti-violent gate function,Controller alarm prompt and self-recovery, and record data.

Dc Blushless Motor High End Speed Swing Turnstile With High Door 0

Dc Blushless Motor High End Speed Swing Turnstile With High Door 1



Swing gate Applications:

Pedestrian turnstile gates have a wide range of applications. Since pedestrian turnstile gates are used to control people traffic flow, for entrance security, and for identification purposes. The gates can really be used anywhere. These turnstiles are most often used in high-traffic transportation hubs like subway systems, train stations, airports, and bus terminals. Also They are used at high-end buildings, offices, gyms, football stadium, etc. They can even be fitted with card readers for completely autonomous operation, as well as QR code readers, face readers and fingerprint readers. DOOR can provide a wide range of integration with these readers.
