Listed Pedestrian Turnstile and Parking Devices Manufacturer for over 15 Years!
Stock Code:832966
| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | DOOR |
| Certification: | CE / IS09001 |
| Model Number: | DRTD6653 |
| Minimum Order Quantity: | 2 sets |
| Price: | negotiable |
| Packaging Details: | wooden carton |
| Delivery Time: | 5-7 working days |
| Payment Terms: | Western Union, T/T, MoneyGram, D/P, D/A, L/C |
| Supply Ability: | 2500sets per month |
| Size: | 1600mm*210mm*1000mm | Motor: | DC Blushless Driving Motor |
|---|---|---|---|
| Material: | SUS304 Stainless Steel | Voltage: | AC110V/AC220V±10% |
| Channel Width: | <1200mm | Humidity: | ≤ 95% RH, Non-condensing |
| Passing Speed: | 30-35 Personal/min | Output Power: | Single Core 50W, Dual Core 95W |
| High Light: | 900mm Width Swing Gate Turnstile,SUS304 Swing Gate Turnstile,RS485 Stainless Steel Turnstile |
||

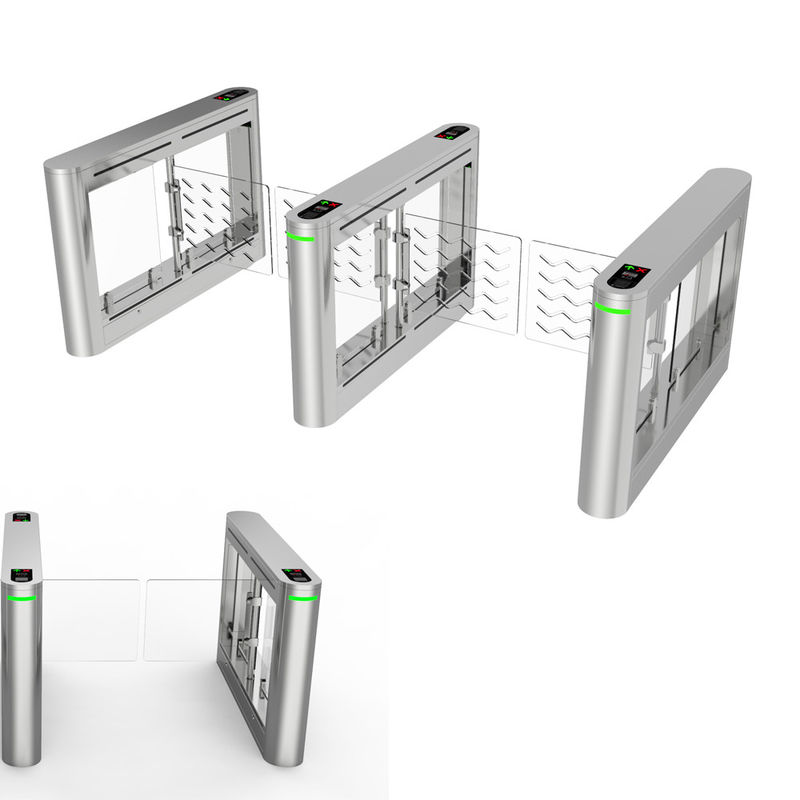

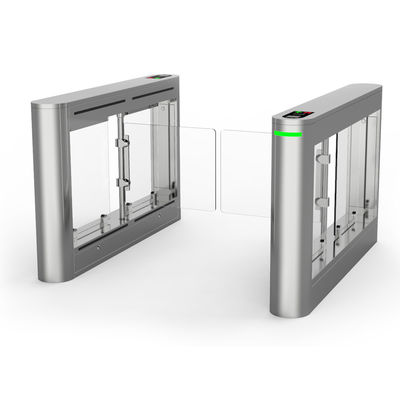

SUS304 Stainless Steel Turnstiles Swing Gate Turnstile 900mm Width For Wheelchair
Product Features:
Product Parameter:
| Structure Parameter | |
| Material | SUS304 brushed stainless steel, top cover 2.0mm, whole body 1.5mm |
| Swing gate material | Acrylic/Stainless steel |
| Channel Width | Standard 550mm, max 1100mm |
| Technical Parameter | |
| Passing Speed | 30-35 personal/min |
| Opening Speed | Adjustable |
| Working Temperature | -25℃-+70℃ |
| Mean Cycles Between Failure | 5 million times |
| IP Rating | IP65 |
| Electric Parameter | |
| Voltage | AC110/AC220 50-60Hz |
| Output Power | Single Core 50W, dual core 95W |
| Driving Motor | DC brushless motor |
| Method of position | Use the encoder to make sure the swing gate position |
| Communication interface | RS485, TCP/IP interface |
| Input / Output signal | dry contact signal input, 6-pair infrared sensor |
This swing gate dimension:
Project case for outdoor usage:
