Place of Origin: | Shenzhen China |
---|---|
Brand Name: | DOOR |
Certification: | CE / IS09001 |
Model Number: | DRTD6653 |
Minimum Order Quantity: | 1 lane |
Price: | negotiable |
Packaging Details: | wooden carton |
Delivery Time: | 5-7 working days |
Payment Terms: | Western Union, T/T, MoneyGram, D/P, D/A, L/C |
Supply Ability: | 2500sets per month |
Size: | 1600*160*1000mm | Motor: | DC Blushless Driving Motor |
---|---|---|---|
Material: | SUS304 Stainless Steel | Voltage: | AC110V/AC220V±10% |
Channel Width: | 600-1200mm | Arm Material: | Acrylic And Stainless Steel |
Application: | Indoor And Outdoor | Access Control Board: | Available |
High Light: | Waist Height Swing Gate IP65,0.5s Waist Height Swing Gate,1200mm Width Waist Height Turnstile |

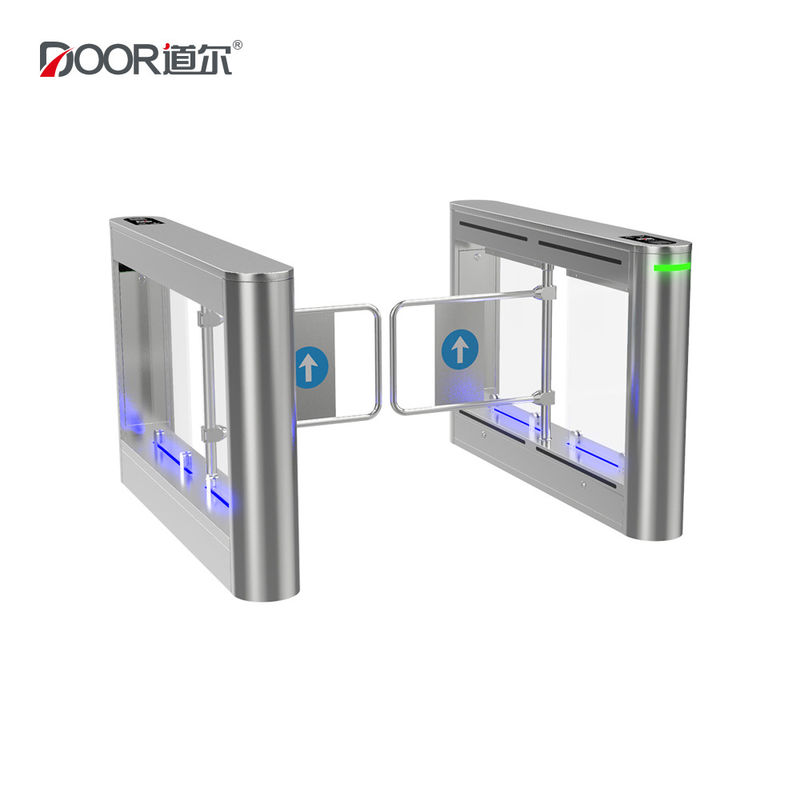

Swing Gate Waist Height Blushless Motor IP65 Turnstile Manufacturers For Hospitals Schools
Product Features
Product Parameter
Structure Parameter | |
Material | SUS304 brushed stainless steel, top cover 2.0mm, whole body 1.5mm |
Swing gate material | Acrylic/Stainless steel |
Channel Width | Standard 600mm, max 1200mm |
Technical Parameter | |
Passing Speed | 30-35 personal/min |
Opening Speed | Adjustable |
Working Temperature | -25℃-+70℃ |
Mean Cycles Between Failure | 5 million times |
IP Rating | IP65 |
Electric Parameter | |
Voltage | AC110/AC220 50-60Hz |
Output Power | Single Core 50W, dual core 95W |
Driving Motor | DC brushless motor |
Method of position | Use the encoder to make sure the swing gate position |
Communication interface | RS485, TCP/IP interface |
Input / Output signal | dry contact signal input, 6-pair infrared sensor |
Working types
In the swing gate products, there are three working types for users to choose at the entrance and exit: controlled passing, free passing and no passing. Namely there are nine working types for users to choose for one lane in open status and normal close status:
FAQ
Q1: Do you have English version system?
A: Yes, we can provide English version system. Also you can use your own system as well.
Q2: Does the equipement include control board?
A: Yes, it is with control board. But if need our system to management, need to order extra channel management control board.
Q3: Can we connect your access control system with our system?
A: Yes, we provide SDK and Software development service with connection port.
Q4: How can we install the turnstiles/barrier gates? Is it easy?
A:Yes, it's easy to install, we have done most of the jobs before sending our products. You just need fix the gates with screws, and connect power supply cables and internet cables.Also we provide one sheet of specific manual specification in the package.
Q5: What is your company’s strength?
A: We are the top 3 manufacturer in turnstile field in China. And we are listed company with famous brand in China. We have more than 400 employees, a R&D group with 160 people, 15-person customized team, 18 offices, 9 agents and more than 20 distributors all around China.
Q6: How do you do after-sale service?
A: We provide life-time technology support on line, by emails, video, phone etc. We have engineer speaking English, convenient to communicate with you directly.
Q7:How about the lead time?
Normally we have raw material in stock for the hot sale models of standard products. Regular products need 5-7 working days. The customized products need 15-20 working days.
Q8: How many years of warranty?
A: We provide 1 year warranty for our products.

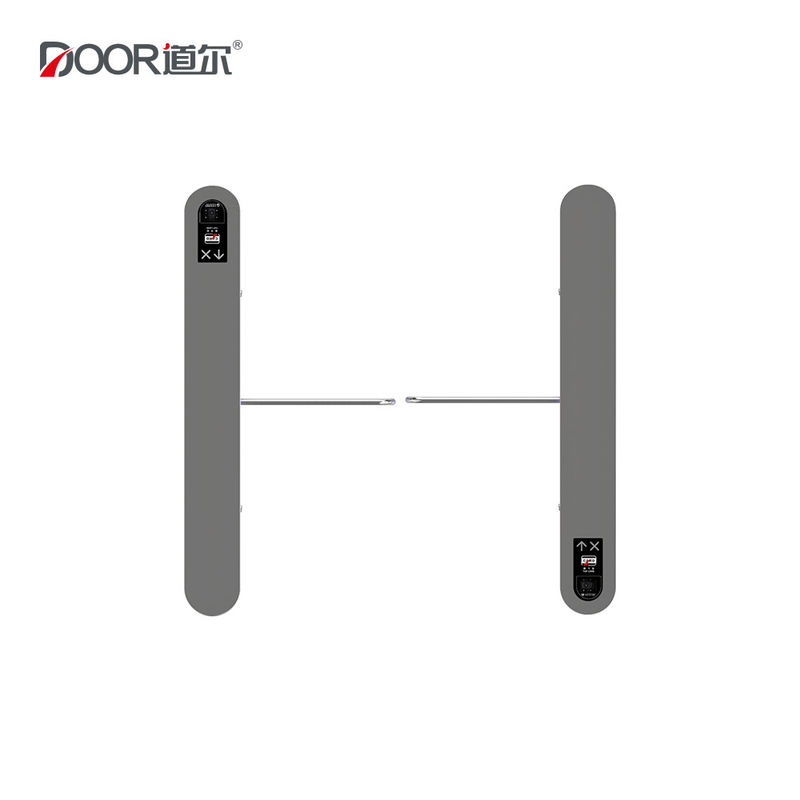

Dimension
Projects
