| Place of Origin: | China |
|---|---|
| Brand Name: | DOOR |
| Certification: | CE / IS09001 |
| Model Number: | DRTD6621 |
| Minimum Order Quantity: | 2 sets |
| Price: | Negotiable |
| Packaging Details: | wood carton |
| Delivery Time: | 5-7 working days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C, D/A, D/P |
| Supply Ability: | 2500 sets per month |
| Motor: | Servo Motor | Material: | 304# Stainless Steel |
|---|---|---|---|
| Size: | L1600mm*W160mm*H990mm | Power Supply: | AC110/AC220+/-10% |
| Weight: | 80kg | Channel Width: | 550mm-1100mm |
| Working Environment: | Indoor | Color: | Silver |
| Communication Interface: | RS485,dry Contact | ||
| High Light: | 200W Access Control Speedstiles,SUS304 Access Control Speedstiles,Stainless Steel Turnstile Security Gates |
||

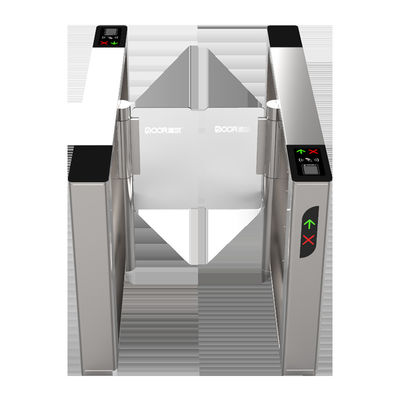

Highly Secure Access Control Security Solutions SUS304 stainless steel MCBF 5 million Times speedstiles
Product Parameter
Structure Parameter
Material: SUS304 brushed stainless steel,
top cover 2.0mm, whole body 1.5mm, Acrylic Arm
Size: L1600*W160*H990mm
Technical Parameter
Passage Width: standard 550mm, max 1100mm
Passing Speed: 35-40 personal/min
Opening Speed: Adjustable, fastest 0.3s
Working Temperature: -25℃-+70℃
Mean Cycles Between Failure: 5 million times
IP Rating: IP42
Electric Parameter
| Voltage | AC110V/AC220V±10% 50-60Hz |
| Operating Power | Single Core 100w, dual-core 200W |
| Driving Motor | DC brushless motor |
| Method of Position | Use the encoder to make sure the swing gate position |
| Communication Interface | RS485, TCP/IP interface |
| Input Signal | Dry contact signal or +12V level signal or DC 12V pulse signal with width of more than 100ms, driving current >10mA |
| Number of Sensor | 8 groups |
FAQ
Dimension
Certification
Company Introduction
Shenzhen Door Intelligent Control Technology Co.,Ltd. (Stock Code 832966) is a high-tech enterprise in the field of intelligent access control based on cloud computing, which located in Longhua District, Shenzhen. The company has more than 400 employees, including 200 R&D and technical personnel. Door has already achieved National High-Tech Enterprise Certification, Double Soft Enterprise Certification, ISO9000 International Quality System Certification and CE Certification. Meantime, the company has obtained over 60 invention patents and national software copyright with registered capital of CNY 100.06 million.
