| Place of Origin: | China |
|---|---|
| Brand Name: | DOOR |
| Certification: | CE / IS09001 |
| Model Number: | DR.TD.6627 |
| Minimum Order Quantity: | 1 Lane |
| Price: | Negotiable |
| Packaging Details: | Wooden Carton |
| Delivery Time: | 5-7 working days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C, D/A, D/P |
| Supply Ability: | 2500 sets per month |
| Motor: | Servo Motor | Material: | 304# Stainless Steel |
|---|---|---|---|
| Size: | L1656×W150×H1000mm | Power Supply: | AC110/AC220+/-10% |
| Weight: | 80kg | Channel Width: | 550mm-1100mm |
| Working Environment: | Indoor | Color: | Champagne Gold And Black |
| Communication Interface: | RS485,dry Contact | ||
| High Light: | electronic turnstile gates,half height turnstile |
||

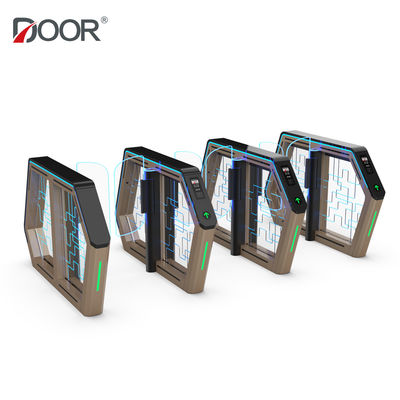

Using Highlight three colors(Blue green red) LED light design, beautiful appearance, elegant and eye-catching, guided access more safe and convenient.Mutiple working modes. Users can according to their needs, through the built-in LCD debug screen, set working mode, easy to operateTriple anti-claming feature.Infrared anti-claming+mechanical anti-clamingh+current detection anti-claming.Avoid the phenomenon of claming the people and the object.
Specification of High Quality Speed Gate
| Material |
SUS304 brushed stainless steel, top cover 2.0mm, whole body 1.5mm, 10mm Acrylic Arm |
| Size | L1656×W150×H1000mmm |
| Passage Width | Standard 550mm, max 1100mm |
| Passing Speed | 30-50personal/min |
| Opening Speed | Adjustable, fastest 0.2s |
| Working Temperature | -20℃-+80℃ |
| Mean Cycles Between Failure | 8 million times |
| IP Rating | IP42 |
| Voltage | AC110V/AC220V±10% 50-80Hz |
| Operating Power | Single Core 100w, dual core 200w |
| Driving Motor | Servo motor |
| Method of Position | Use the encoder to make sure the swing gate position |
| Communication Interface | RS485, TCP/IP interface |
| Input Signal | Dry contact signal or +12V level signal or DC 12V |
| Number of Sensor | 8 groups |
Functions of Speed Gate
1. Super slim and fast access.
2. Fault detection function, easy to use and maintenance.
3. The running status can be programmed and controlled with the built-in keyboard on the main board.
4. Mechanical anti-pinch function.
5. Anti-breakthrough function. The gate is locked automatically until opening signal received.
6. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.
7. Can be used with variety of card readers: IC / ID card readers, facial recognition, barcodes, fingerprints, etc. (for access controller)
8. Direction can be set as Single-direction or Bi-direction.
9. Gate auto opens when power off, auto close when power on, complying with fire safety requirements.
10. Counter function for optional.
11. System run with self-checking function, and seft fault prompt function.
12. Anti-collision function.
Product Dimenssion
Project Case Photos
Application of Turnstile
FAQ
1. What is the strength of your company in this industry?
A. Established in 2011, having over 10-year manufacturer experience.
B. Having metal sheet factory, assembly factory and office over 10,000㎡, can cover a high volume production.
C. There is an over 200-person R&D team, including pedestrian turnstiles and parking software and firmware developing, structuring and testing person.
D. Listed company, have a high and strict process of orders, production and shipping.
E. Modern machinery for production, such as Laser Cutting Machine, Grooving, bending, welding, engraving,etc. More detailed pics can check our factory info.
2. What is your Quality Control?
We have a average 10-year experience QC team. They had a good teamwork to check raw materials and finished products to ensure the quality. The samples will be fully tested, and the bulk goods will be sampled for careful inspection, and the QC staff will also conduct inspections during the production process.
3. Do you provide customization?
We have a 20-person customization team to cover our clients’ customized requirements. We also provide OEM and ODM service.
4. Could you tell us your after-sale service?
Timely support is a necessary. We provide free online support 24/7.
We are expanding overseas outlets to cover your after-sale service.
5. What would you do after the warranty?
We provide 12-month warranty, some of high products are with 24 months warranty. If out of warranty, we will provide free lifetime online services, and help to replace accessories.
6. What’s your capacity of your factory?
Yearly capacity:12,000units for pedestrian turnstile gate, 20,000units for parking devices.
7. What are your optional list for your products?
Wireless control for pedestrian turnstiles, housing color changing, size changing, material SUS316 available, logo printing, add photocell quantity, etc.
8. How can we be your exclusive distributor?
To be our exclusive distributor, firstly you need to have your sales and technical team; Secondly, industry experience is required.
