Security Gate Fingerprint Tripod Access Control System With Dc 24v Brushless Motor

Security Gate Fingerprint Tripod Access Control System With Dc 24v Brushless Motor
Security Gate Fingerprint Tripod Access Control System With Dc 24v Brushless Motor Security Gate Fingerprint Tripod Access Control System With Dc 24v Brushless Motor Security Gate Fingerprint Tripod Access Control System With Dc 24v Brushless Motor
Basic Information
Place of Origin: Shenzhen China
Brand Name: Shenzhen Door
Certification: CE / IS09001
Model Number: DR.TD.6383
Minimum Order Quantity: 2 sets
Price: Negotiable
Packaging Details: wood carton
Delivery Time: 5-7 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2500 sets per month
Get Best Price Contact Now
Motor: DC24V Brushless Motor Material: 304# Stainless Steel
Size: L1600×W280×H1000mm Passage Width: 550mm
Passing Speed: 30-35 Personal/min Working Temperature: -25℃-+70℃
Mean Cycles Between Failure: 5 Million Times Voltage: AC110V/AC220V±10% 50-60H
Operating Power: 30w Driving Motor: DC24V Brushless Motor
Method Of Position: Motor Driving
Highlight:

train station turnstile

,

tripod barrier gate

,

Brushless Motor tripod barrier gate

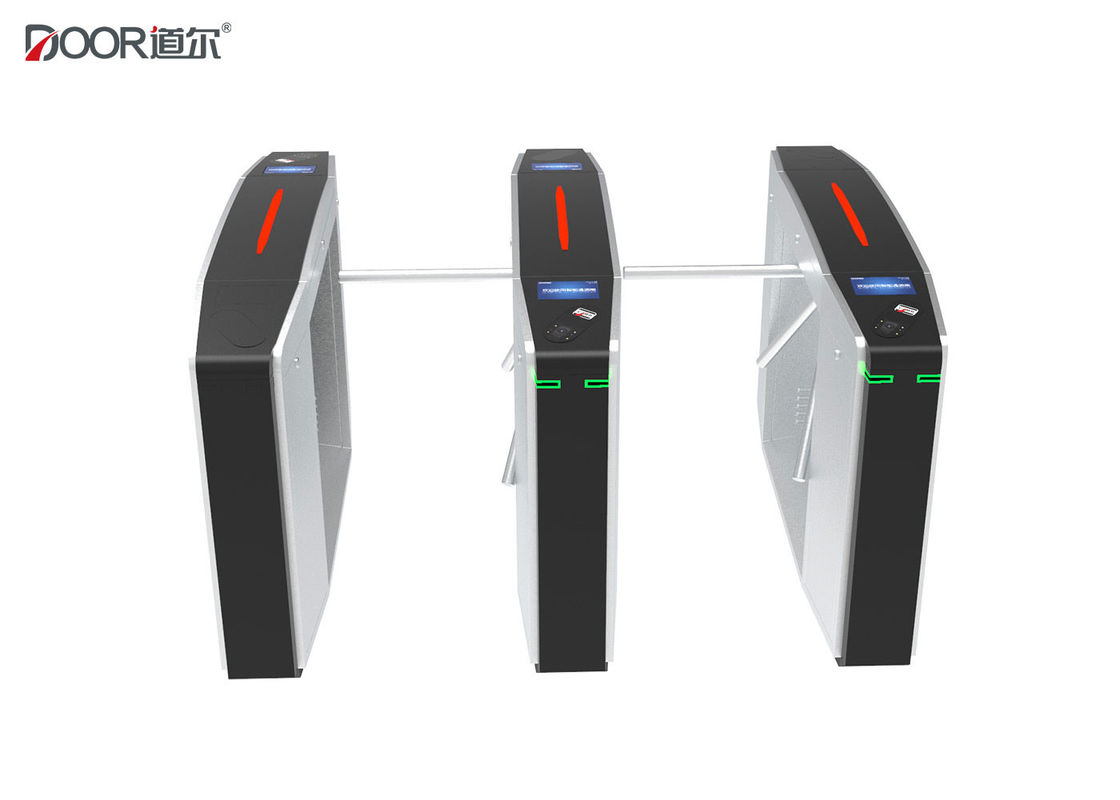

Security Gate Fingerprint Tripod Access Control System With DC 24v Brushless Motor

Product Description:

      Intelligent fully-automatic tripod Turnstile DRTD6383 is self-designed, developed,
and produced intelligent channel management equipment by Shenzhen Door
Intelligent Control Technology Co., Ltd.
The whole product structure adopts stainless steel laser cutting and CNC bending
forming. Through using advanced processing technology and strict quality control, the
product shape is simple and elegant.
The product integrates various types of card readers, two-dimensional code, face
recognition, etc., which can easily integrate ID card, IC card, biometric and other
reading and writing devices, To meet the needs of the fire channel, a dedicated fire
button is set in the system which interface to automatically open the gate in an
emergency and organize personnel to evacuate.

Product Features:

  • Super bright blinking direction indicator.
  • Reliable movement design, the switch gate is soft and silent, no mechanical friction.
  • Smooth operation and long life span.
  • Digital drive mode: Using advanced digital sensor, the motor provides 720 signal monitoring per revolution, which meets the requirements of fast start and stop of the motor (most of the tripod turnstiles on the market are photoelectric switches).
  • Equipped with the dry contact signal input interface, RS485 interface which is compatible with all kinds of access controllers.
Product Parameter:

Structure Parameter

Material: SUS304 brushed stainless steel
top cover 2.0mm, whole body 1.5mm
stainless steel
Size: L1600*W280*H1000mm

Technical Parameter

Passage Width: standard 550mm
Passing Speed: 30-35 personal/min
Opening Speed: Adjustable, fastest 0.3s
Working Temperature: -25℃-+70℃
Mean Cycles Between Failure: 5 million times
IP Rating: IP42

Electric Parameter:

Voltage: AC110V/AC220V±10% 50-60Hz
Operating Power: 30W
Driving Motor: DC24V brushless motor
Method of Position: motor driving
Communication Interface: RS485
Input Signal: dry contact

Security Gate Fingerprint Tripod Access Control System With Dc 24v Brushless Motor 0

FAQ:

Q1: Do you have English version system?

A: Yes, we can provide English version system. Also you can use your own system as well.

Q2: Does the equipement include control board?

A: Yes, it is with control board. But if need our system to management, need to order extra channel management control board.

Q3: Can we connect your access control system with our system?

A: Yes, we provide SDK and Software development service with connection port.

Q4: How can we install the turnstiles/barrier gates? Is it easy?
A:Yes, it's easy to install, we have done most of the jobs before sending our products. You just need fix the gates with screws, and connect power supply cables and internet cables.Also we provide one sheet of specific manual specification in the package.

Q5: What is your company’s strength?

A: We are the top 3 manufacturer in turnstile field in China. And we are listed company with famous brand in China. We have more than 400 employees, a R&D group with 160 people, 15-person customized team, 18 offices, 9 agents and more than 20 distributors all around China.

Q6: How do you do after-sale service?

A: We provide life-time technology support on line, by emails, video, phone etc. We have engineer speaking English, convenient to communicate with you directly.

Q7. How about the lead time?

Normally we have raw material in stock for the hot sale models of standard products. Regular products need 5-7 working days. The customized products need 15-20 working days.



Factory Show:



Security Gate Fingerprint Tripod Access Control System With Dc 24v Brushless Motor 1Security Gate Fingerprint Tripod Access Control System With Dc 24v Brushless Motor 2Security Gate Fingerprint Tripod Access Control System With Dc 24v Brushless Motor 3
