| Place of Origin: | Dongguan,China |
|---|---|
| Brand Name: | SZC |
| Certification: | CE |
| Model Number: | Type2-CCS2 Integrated Charger 42 kW |
| Minimum Order Quantity: | 1 |
| Price: | USD 3959- USD 4399 / Unit |
| Delivery Time: | 1-4 Weeks |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 100 Pieces/Week |
| Highlight: | Double Guns Double Screen OCPP Charger,Commercial Floor-Stand OCPP Charger,42 kW Double Guns OCPP Charger |
||
|---|---|---|---|

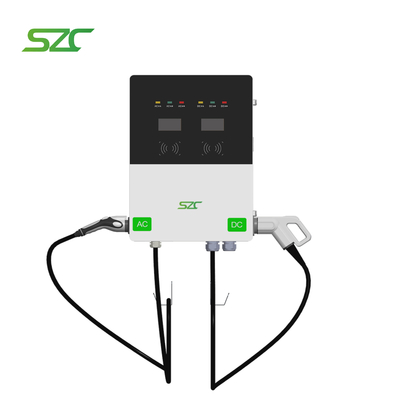

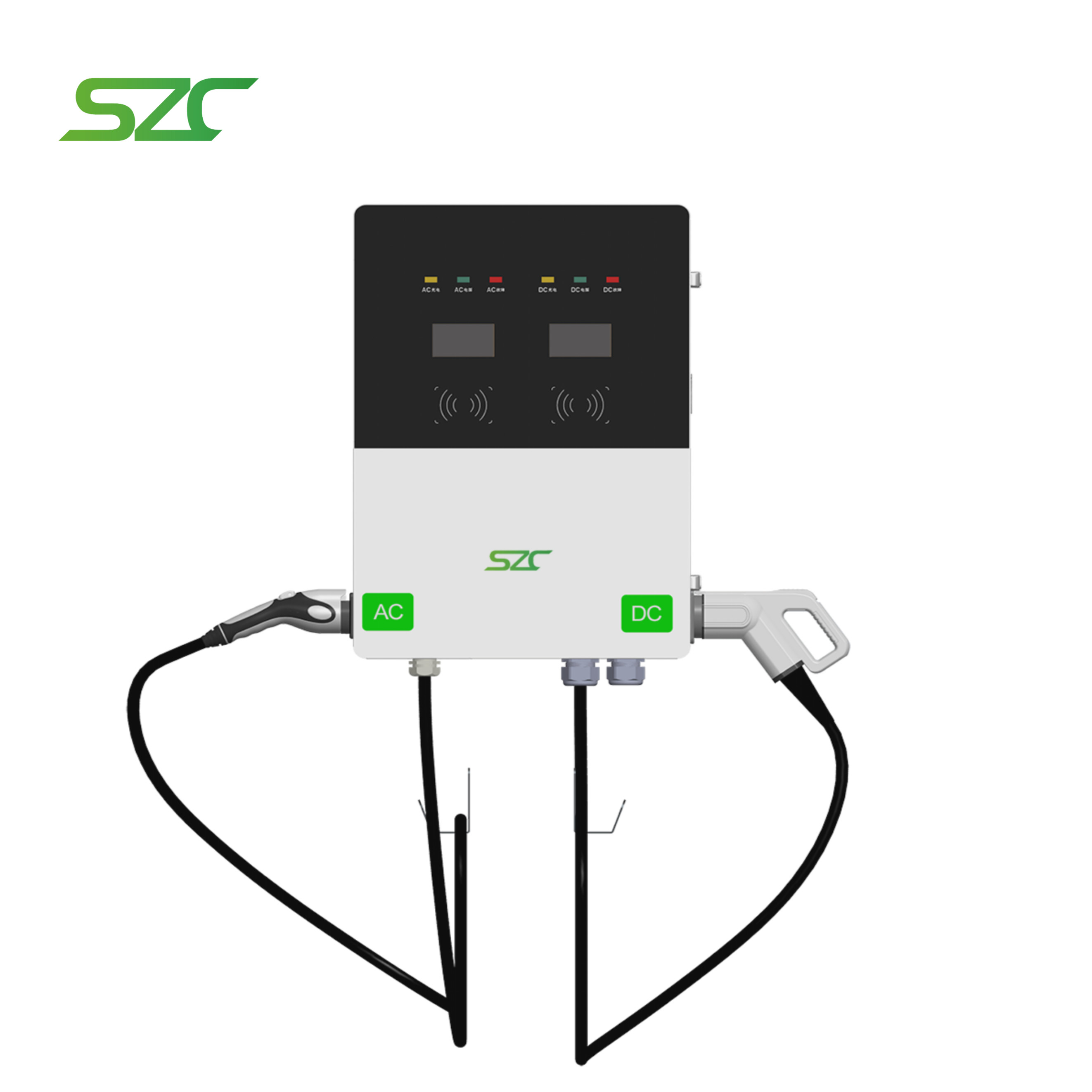

Rated Power : 42kW (20kW DC+22kW AC )
Output Connector: 2 PLUGS (DC*1, AC*1)
DC*1: (CCS2: 0~250A 200Vdc-1000Vdc )
AC*1: (Type 2 : 0-32A 0-400 Vac)
Communiction: OCPP1.6J (OCPP 2.0 optional)
Network: Wifi/ Ethernet/3G/4G
Working Temperature: -30℃~+55℃
Protection Level: IP54
Cooling: Automatic forced-air cooling
Standards: EN/IEC 61851-1: 2017, EN/IEC 61851-23: 2014
Enclosure: Galvanized steel
Dimension:750*520*240 mm(H*W*D) Net Weight: 35 kG
Installation: Wall-mount/Pole-mount
* 4.3 inch LCD TouchScreen
* Emergency Stop Button
* LED indicator
* 5m cable length
* 2 RFID Cards
