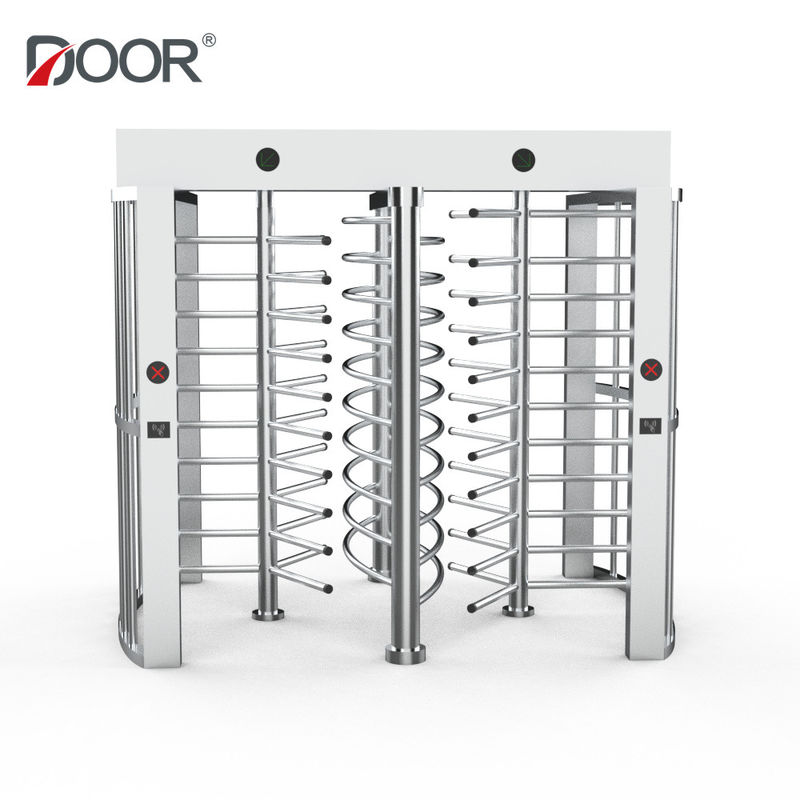

304 Stainless Steel Dual Lane Full Height Turnstile Gate For Gym

304 Stainless Steel Dual Lane Full-Height Turnstile Gate For Gym

Specification of Full-Height Gate

Functions of full height gate

(1) Running stably without noise and mechanical impact.

(2) The passing person number of the persons can be set.

(3) Several ways of working molds for your demand chosen.

(4) Bidirection, or one direction permitted, one forbidden, or one direction charged, one for free, and all the working molds set by the buttons in the main control board.

(5) Beam falling and lifting can be controlled in far distance so to satisfy the special requirement of the users and the request of fire protection.

(6) Direction-guide lights in the turnstile to tell you whether the direction to go or not.

(7) The standard electrical interface connected with various kinds of reader and writer equipment.
(8) All the functions realized in one integration machine and controlled and managed by the computer in the far distance.
(9) The number of the persons passed by can be counted automatically which can also be displayed in LED

(10) Beam can be lifted and fall when power is cut-off.

(11) The function with or without card-reading memory cab be set according to your demand.

(12) Self-check and alarm for convenienting to operate.

Features of bi-directional turnstile

More security
DOOR’s full-height barrier combines maximum security with a rugged and swift design to prevent climb-over attempts and tailgating in unmanned areas.

Available in a variety of styles
DOOR's full height turnstile is available as an indoor or outdoor turnstile, a single or double unit, and with your choice of motorised or mechanical side gates in a number of finishes, including stainless steel and galvanised paint in RAL colours.

Turnstiles System Operation Principle
1) Turn on the power, 2 seconds later; the system enters into work mode; the arm can’t be turned.
2) After swipe legal card or code and fingerprint, Access control device send opening signal to control board.
3) The control board receives open signal, control indicator to green,6 solenoid open , The arm of rotation can be pushed to 90 degree or 120 degree.
4) After the passenger push rod and then rotation turn to 90 or 120 degree, the position sensor send close signal to control board, the solenoid lock immediately.
5) Full turnstiles will lock after 5 seconds if the passenger swipe card but do not pass.


FAQ about turnstile
Q1:When access board send open sigal,arm move reverse and indicator show reverse?
Reasons:open signal reverse connection
Solotion:exchange SW1 GND and SW2 GND terminal of board.

Q2: Indicator is not working?
Reasons:1. wires loose 2.indicator or board damage
Solution:1.Check connect wire of indicator 2.Repalce indicator or board.

Q3: How to achieve free for one way ?
1.Remove one of square solenoid

Q4: Arm can not push when swipe card and indicator show green?
Solution: 1.Check 24V GND output for square solenoid 2.Replace new board or solenoid

Q5: Passing two or three people after swipe card at a time.
Reasons: 1. The Positon sensor didn’t be touched by the right screw cap when the turn plate rotating. (Or didn’t receive the effective signal even touched)
2.The square solenoid does not stretch smoothly.
3.Control baord damageSolution: 1.Move the position senor inward ,Check connect wires to board
2.Adjust square solenoid or replace new one.
3. Changing the square solenoid.
4. Replace a new board


Packing of Single Channel Full Height Turnstile
