Place of Origin: | Shenzhen China |
---|---|
Brand Name: | Shenzhen Door |
Certification: | CE / IS09001 |
Model Number: | DR.TD.6771A-1 |
Minimum Order Quantity: | 1 set |
Price: | Negotiable |
Packaging Details: | Wooden packing |
Delivery Time: | 5-7days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 2500 sets/months |
Material: | SUS304brushed Stainless Steel | Size: | 1580*1180*2310mm |
---|---|---|---|
Passage Width: | 600mm | Passing Speed: | 20-35 Personal/min |
Working Temperature: | -25℃-+70℃ | Mean Cycles Between Failure: | 5 Million Times |
IP Rating: | IP65 | Voltage: | AC110V/AC220V±10% 50-60Hz |
High Light: | Single Channel stainless steel turnstiles,IP65 stainless steel turnstiles,SUS304 full height gate |

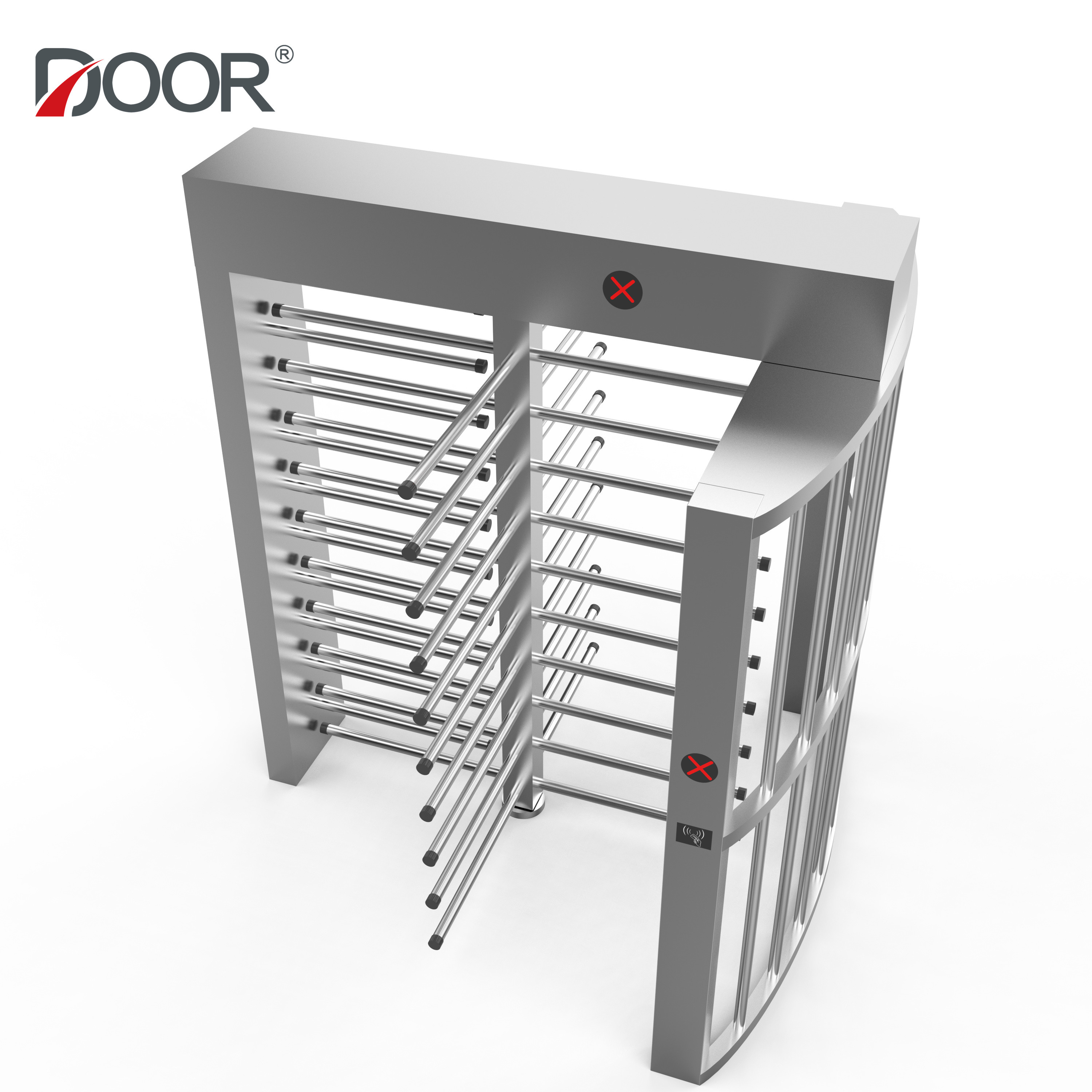

Description of this security gate:
This full-height gate is an intelligent channel management device developed, developed and produced by our company. By configuring different reading and writing devices, the intelligent control and management of channel passage can be completed.
The appearance of the whole product is formed by stamping stainless steel plate, which is beautiful in appearance, rust-proof and durable, and the system adopts standard electrical interface, which can easily integrate barcode card, ID card, IC card and other reading and writing equipment on this equipment, so as to provide The entry and exit personnel provide an orderly and civilized way of passing, and can prevent illegal entry and exit. At the same time, in order to meet the requirements of the fire escape, in an emergency, the power will be cut off and the personnel will be evacuated.
Specification:
Input power | AC220V,50/60HZ |
Motor | Solenoid |
Work temperature | -20℃ ~ 70℃ |
Rated power | Single core100W,double core 200W |
Work environment | outdoor |
Passage speed | 20-35person/min |
Communication Interface | RS485, open/close signal(relay), dry contact |
Humidity | ≤90%(no condensation) |
MTBF | 5 million times |
Pass Width | 600mm |
Passage direction | Uni-directional/Bi-directional |
IP level | Ip65 |
Voltage | AC110V/AC220V±10% 50-60Hz |
Applications of full height turnstiles:
Full height turnstile is suitable for unattended and very high-security occasions, as well as some outdoor occasions with a poor environment.
The full height turnstile is widely used in factories, gymnasiums, construction sites, prisons, enterprises, institutions, railway stations, bus stations, airports, and other places. Its anti-tailing function is particularly strong. At the same time, it is very high. People can’t cross it. The community can also use full-height turnstiles, which are relatively stable.
