Place of Origin: | Shenzhen China |
---|---|
Brand Name: | DOOR |
Certification: | CE / IS09001 |
Model Number: | DR.TD.6633 |
Minimum Order Quantity: | 1 lane |
Price: | Negotiable |
Packaging Details: | Wooden Carton |
Delivery Time: | 5-7 working days |
Payment Terms: | L/C, T/T, Western Union, , D/A, D/P, MoneyGram |
Supply Ability: | 2500 sets per month |
Product Name: | Airport Turnstile | Dimensions: | 1880*200*1459mm |
---|---|---|---|
Material: | SUS304 Bushed Stainless Steel | Channel Width: | 700mm-900mm |
Working Environment: | Indoor | Operating Temperature: | -20°C~70°C |
Motor: | Servo Motor | Protection Level: | IP42 |
High Light: | Access Security Airport EPassport Gates,SUS304 Airport EPassport Gates,35 person/minute Airport EPassport Gates |
Passenger Passes Airport ePassport Gates Enhance access security
Description of Airport Turnstile
The interlocking feature of AB door automatic access gate can prevent passengers from following through, and the unattended whole process inspection and clearance can be achieved at the port and entry-exit;
The door wing of the double door swing type quick pass gate of AB door automatic passage gate can be widened to become a special wide passage, which is convenient for passengers with large luggage;
The door wing of the swing type quick pass door of AB door automatic access gate can be raised to become a full height door or a half height door, and it is impossible to climb and pass;
The movement of AB door automatic access gate does not occupy space, and the neat self-service inspection gate channels with wide and narrow distribution can be customized side by side, with the same overall appearance;
AB door automatic access gate its double door swing gate access control channel design (AB access control system) can detect whether personnel follow the passage, height detection, nuclear radiation detection, infrared temperature measurement, one-to-one accurate detection, human body metal, security fingerprint, automatic printing prompt voucher and certificate verification and other global automatic customs clearance schemes in the buffer zone, so as to make the whole process integrated self-service inspection gate channel, which is a real unattended weapon.
Specification of Airport Turnstile
Model | DR.TD.6633 |
Dimensions | 1880*200*1459mm |
Sensor Technology | Infrared grating logic control system |
Body material | 2.0mm (thickness)SUS304 bushed stainless steel |
Gate material | 10mm Thick acrylic |
Channel width | 700mm~900mm |
Working environment | indoor |
Operating temperature | -20°C~70°C(Optional temperature control below 10°C) |
Relative humidity | 0%~90%(no condensation) |
Input voltage | AC110~220V(50/60Hz) |
Motor | Servo motor |
Passage speed | 35 person/minute |
Gate opening response | 0.2S |
Gate opening/ closing time |
0.2S |
Protection level | IP42 |
Gate opening signal | Dry contact signal (pulse greater than 200MS) |
Communication Interface | RS485 |
Switching power supply | 24V (Brand: MW) |
Read installation position | 2pcs |
Infrared configuration | 16pairs & 32 infrared detection points |
Process standard | Laser cutting, grooving and bending, high-end atmosphere, baking varnish |
Service life | 30 million times |
Features and Functions of Airport Turnstile
1. AB door gate anti-tailing access control system is a kind of AB door self-service pedestrian passage gate with anti-tailing function. According to the technical requirements, a face recognition access control system is set up in the area, and the system is reasonably and effectively implemented. Integration achieves the organic combination of physical defense, technical defense, and human defense. It is the product of the development of information technology, electronic communication technology and biometric technology, and is an effective measure to achieve security management. Add one more door on the hardware, that is, from point A to point B to close door AB, add a feedback signal to the access control system and then a reminder speaker, which can also effectively remind.
2. Through non-contact biometric recognition(face), passengers enjoy a comfortable airport experience with less time to spend at immigration.
3. Module structure design for easier maintenance and parts replacement.
4. Multiple traffic modes:It can set up two-way authorized passage, card-swiping and out-direction induction gate opening, one-way passage and other intelligent passage modes.
5. Swipe continuous:Single or continuous swiping function can be set. When the continuous swiping function is set, the channel will remain open until the corresponding number of people pass through. It is suitable for different occasions.
6. Self-check function:with power-on self-check and fault self-check functions, it is convenient to use and fast maintenance.
LED indicator:LED highlight indicator lights to guide pedestrians to pass.

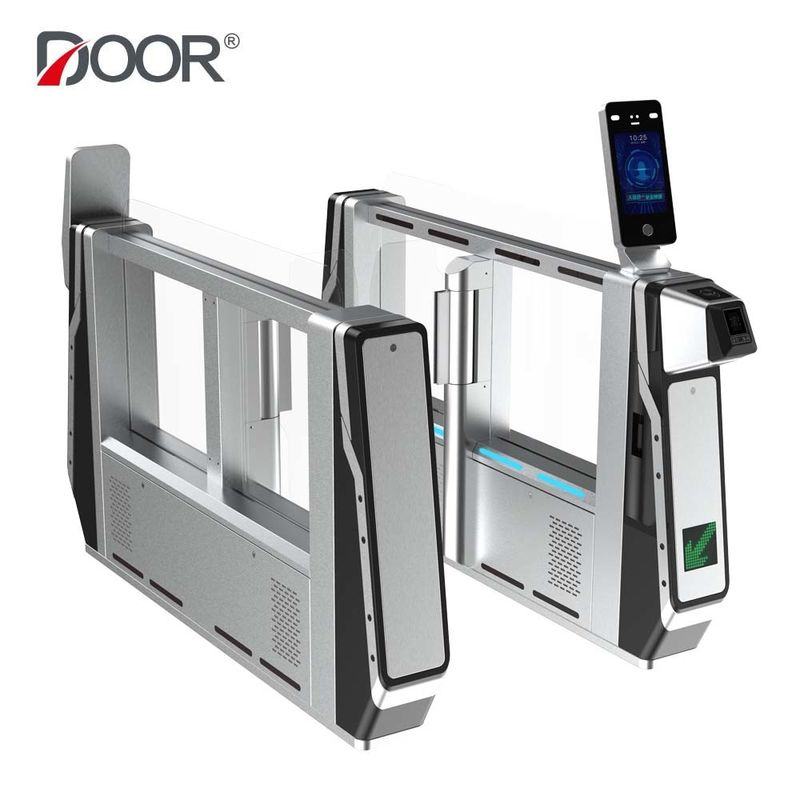

Product real pictures of Airport Turnstile
Pedestrian Turnstile gates Applications
Pedestrian turnstile gates have a wide range of applications. Since pedestrian turnstile gates are used to control people traffic flow, for entrance security, and for identification purposes. The gates can really be used anywhere. These turnstiles are most often used in high-traffic transportation hubs like subway systems, train stations, airports, and bus terminals, as well as QR code readers, face readers and fingerprint readers. DOOR can provide a wide range of integration with these readers.
FAQ
1. What is the strength of your company in this industry?
A. Established in 2011, having over 10-year manufacturer experience.
B. Having metal sheet factory, assembly factory and office over 10,000㎡, can cover a high volume production.
C. There is an over 200-person R&D team, including pedestrian turnstiles and parking software and firmware developing, structuring and testing person.
D. Listed company, have a high and strict process of orders, production and shipping.
E. Modern machinery for production, such as Laser Cutting Machine, Grooving, bending, welding, engraving,etc. More detailed pics can check our factory info.
2. What is your Quality Control?
We have a average 10-year experience QC team. They had a good teamwork to check raw materials and finished products to ensure the quality. The samples will be fully tested, and the bulk goods will be sampled for careful inspection, and the QC staff will also conduct inspections during the production process.
3. Do you provide customization?
We have a 20-person customization team to cover our clients’ customized requirements. We also provide OEM and ODM service.
4. Could you tell us your after-sale service?
Timely support is a necessary. We provide free online support 24/7.
We are expanding overseas outlets to cover your after-sale service.
5. What would you do after the warranty?
We provide 12-month warranty, some of high products are with 24 months warranty. If out of warranty, we will provide free lifetime online services, and help to replace accessories.
6. What’s your capacity of your factory?
Yearly capacity:12,000units for pedestrian turnstile gate, 20,000units for parking devices.
7. What are your optional list for your products?
Wireless control for pedestrian turnstiles, housing color changing, size changing, material SUS316 available, logo printing, add photocell quantity, etc.
8. How can we be your exclusive distributor?
To be our exclusive distributor, firstly you need to have your sales and technical team; Secondly, industry experience is required.
