Listed Pedestrian Turnstile and Parking Devices Manufacturer for over 15 Years!
Stock Code:832966
| Place of Origin: | PRC |
|---|---|
| Brand Name: | DOOR |
| Certification: | CE / IS09001 |
| Model Number: | DR.TD.6634 |
| Minimum Order Quantity: | 1 lane |
| Price: | Negotiation |
| Packaging Details: | Pollywood |
| Delivery Time: | 5-7 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1000 units/month |
| Meterial: | SUS304 Stainless Steel, Cover 2.0mm | Lane Width: | ≦700mm |
|---|---|---|---|
| Protection Levelironment: | IP42 | Working Mode: | Raster Detection |
| Motor: | Servo Motor | Working Temperature: | -25℃+70℃ |
| MTBF: | 30 Million Times | Communication Interface: | RS485 |
| High Light: | IP42 Access Control Turnstile Gates,SUS304 Airport E Gate,Raster detection Airport E Gate |
||

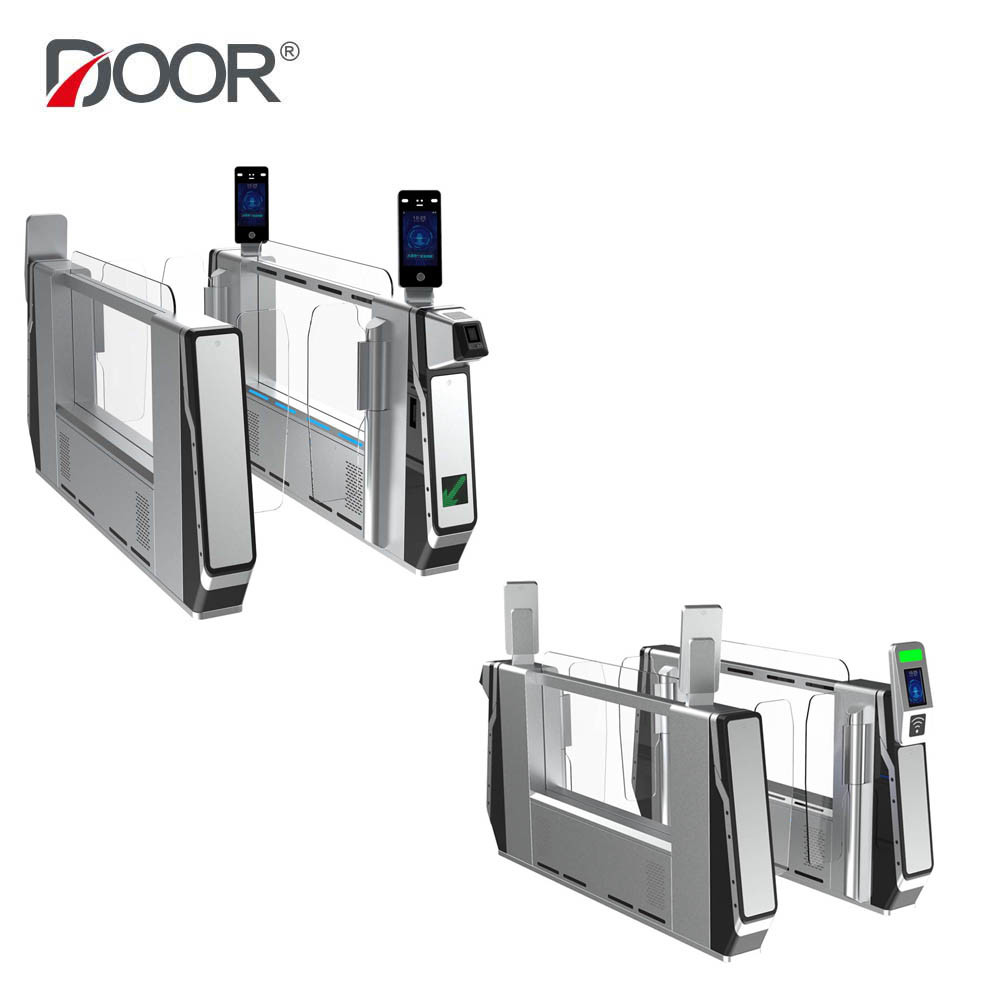

Autogate And E-Gate Systems Access Control Turnstile Gates
Description:
Autogate, E-gate does not occupy space, and the neat self-service inspection gate channels with wide and narrow distribution can be customized side by side, with the same overall appearance;
Specification:
| Working environment | indoor |
| Operating temperature | -20°C~70°C(Optional temperature control below 10°C) |
| Relative humidity | 0%～90%(no condensation) |
| Input voltage | AC110~220V(50/60Hz) |
| Motor | Servo motor |
| Passage speed | 35 person/minute |
| Gate opening response | 0.2S |
|
Gate opening/ closing time |
0.2S |
| Protection level | IP42 |
| Gate opening signal | Dry contact signal (pulse greater than 200MS) |
| Communication Interface | RS485 |
| Switching power supply | 24V (Brand: MW) |
| Read installation position | 2pcs |
| Infrared configuration | 16pairs & 32 infrared detection points |
| Process standard | Laser cutting, grooving and bending, high-end atmosphere, baking varnish |
| Service life | 30 million times |
Main Functions:
1. Infrared anti-pinch: when the anti-pinch infrared detects a pedestrian, the baffle will not be closed to protect the safety of the pedestrian.
2. Compatibility:It can cooperate with a variety of verification devices, and is compatible with access control card swiping, face recognition, human identification verification, fingerprint recognition, OCR, ESD detection, remote control and other equipment.
3. Remote control: Remote control (RS232 communication interface) and management can be realized through the management computer.
4. Unimpeded: In the event of a power failure, the gate can be opened gently without resistance by hand to keep it open (super capacitor or battery can be added to realize the power failure normally open).
5. Fire linkage: Fire linkage emergency opening (the gate will not be closed until the emergency opening signal is canceled).
Applications:
Automated e-gates have a wide range of applications. like subway systems, train stations, airports, and bus terminals.
FAQ:
1. What is your Quality Control?
We have a average 10-year experience QC team. They had a good teamwork to check raw materials and finished products to ensure the quality. The samples will be fully tested, and the bulk goods will be sampled for careful inspection, and the QC staff will also conduct inspections during the production process.
2. Do you provide customization?
We have a 20-person customization team to cover our clients’ customized requirements. We also provide OEM and ODM service.
3. Could you tell us your after-sale service?
Timely support is a necessary. We provide free online support 24/7.
We are expanding overseas outlets to cover your after-sale service.
4. What would you do after the warranty?
We provide 12-month warranty, some of high products are with 24 months warranty. If out of warranty, we will provide free lifetime online services, and help to replace accessories.
