Listed Pedestrian Turnstile and Parking Devices Manufacturer for over 15 Years!
Stock Code:832966
| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | DOOR |
| Certification: | CE / IS09001 |
| Model Number: | DRTD6771-2 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Wooden Carton |
| Delivery Time: | 5-7 working days |
| Payment Terms: | L/C, T/T, Western Union, , D/A, D/P, MoneyGram |
| Supply Ability: | 2500 sets per month |
| Product Name: | Full Height Turnstile | Material: | SUS304 Brushed Stainless Steel |
|---|---|---|---|
| Size: | L2400×W1500×H2310mm | Passage Width: | ≤650mm |
| Passing Speed: | 30-35 Personal/min | IP Rating: | IP65 |
| Driving Motor: | DC Brushless Motor | Mean Cycles Between Failure: | 5 Million Times |
| Highlight: | SUS304 Full Height Turnstile,Length 2400mm Full Height Turnstile,Length 2400mm Waterproof Turnstile |
||

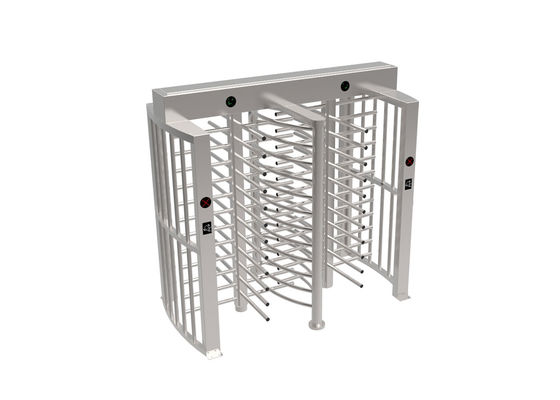

DOOR Indoor/Outdoor Waterproof Full Height Turnstile Security Gate Dual Channel
Product Parameter
|
Structure Parameter
|
|
| Product name | Full Height Turnstile |
| Model Number | DR.TD.6771-2 |
| Material |
SUS304 brushed stainless steel
Top cover 2.0mm, whole body 1.5mm
|
|
Size
|
L2400×W1500×H2310mm
|
|
Technical Parameter
|
|
|
Passage Width
|
≤650mm
|
|
Passing Speed
|
30-35 personal/min
|
|
Mean Cycles Between Failure
|
5 million times
|
|
IP Rating
|
IP65
|
|
Electric Parameter
|
|
|
Voltage
|
AC110V/AC220V±10% 50-60Hz
|
|
Driving Motor
|
DC brushless motor
|
|
Method of position
|
Motor driving
|
|
Communication interface
|
RS485
|
|
Input Sign
|
Dry contact
|
Product Feature
Product Dimenssion
Project Cases
Our Factory
FAQ
Q1: Do you have English version system?
A: Yes, we can provide English version system. Also you can use your own system as well.
Q2: Does the equipement include control board?
A: Yes, it is with control board. But if need our system to management, need to order extra channel management control board.
Q3: Can we connect your access control system with our system?
A: Yes, we provide SDK and Software development service with connection port.
Q4: How can we install the turnstiles/barrier gates? Is it easy?
A:Yes, it's easy to install, we have done most of the jobs before sending our products. You just need fix the gates with screws, and connect power supply cables and internet cables.Also we provide one sheet of specific manual specification in the package.
Q5: What is your company’s strength?
A: We are the top 3 manufacturer in turnstile field in China. And we are listed company with famous brand in China. We have more than 400 employees, a R&D group with 160 people, 15-person customized team, 18 offices, 9 agents and more than 20 distributors all around China.
Q6: How do you do after-sale service?
A: We provide life-time technology support on line, by emails, video, phone etc. We have engineer speaking English, convenient to communicate with you directly.
Q7:How about the lead time?
Normally we have raw material in stock for the hot sale models of standard products. Regular products need 5-7 working days. The customized products need 15-20 working days.
Q8: How many years of warranty?
A: We provide 1 year warranty for our products.
