Listed Pedestrian Turnstile and Parking Devices Manufacturer for over 15 Years!
Stock Code:832966
| Place of Origin: | PRC |
|---|---|
| Brand Name: | Door |
| Certification: | CE / IS09001 |
| Model Number: | 6983 |
| Minimum Order Quantity: | 1 |
| Price: | negotiable |
| Packaging Details: | plywood wooden/carton |
| Delivery Time: | 5-7 working days |
| Payment Terms: | D/A, D/P, L/C, Western Union, MoneyGram |
| Supply Ability: | 2500 sets per month |
| Material: | SUS304 Stainless+baking Varnish Paint | Passing Speed: | 30-45person/min |
|---|---|---|---|
| Working Temperature: | -20~+60℃ | Motor Type: | Brushless DC24V |
| Passing Width: | 550mm | Dimension: | 1600×280×1000mm |
| Highlight: | DC24V Office Barrier Gate,Width 550mm Office Barrier Gate,DC24V Flap Barrier Turnstile |
||

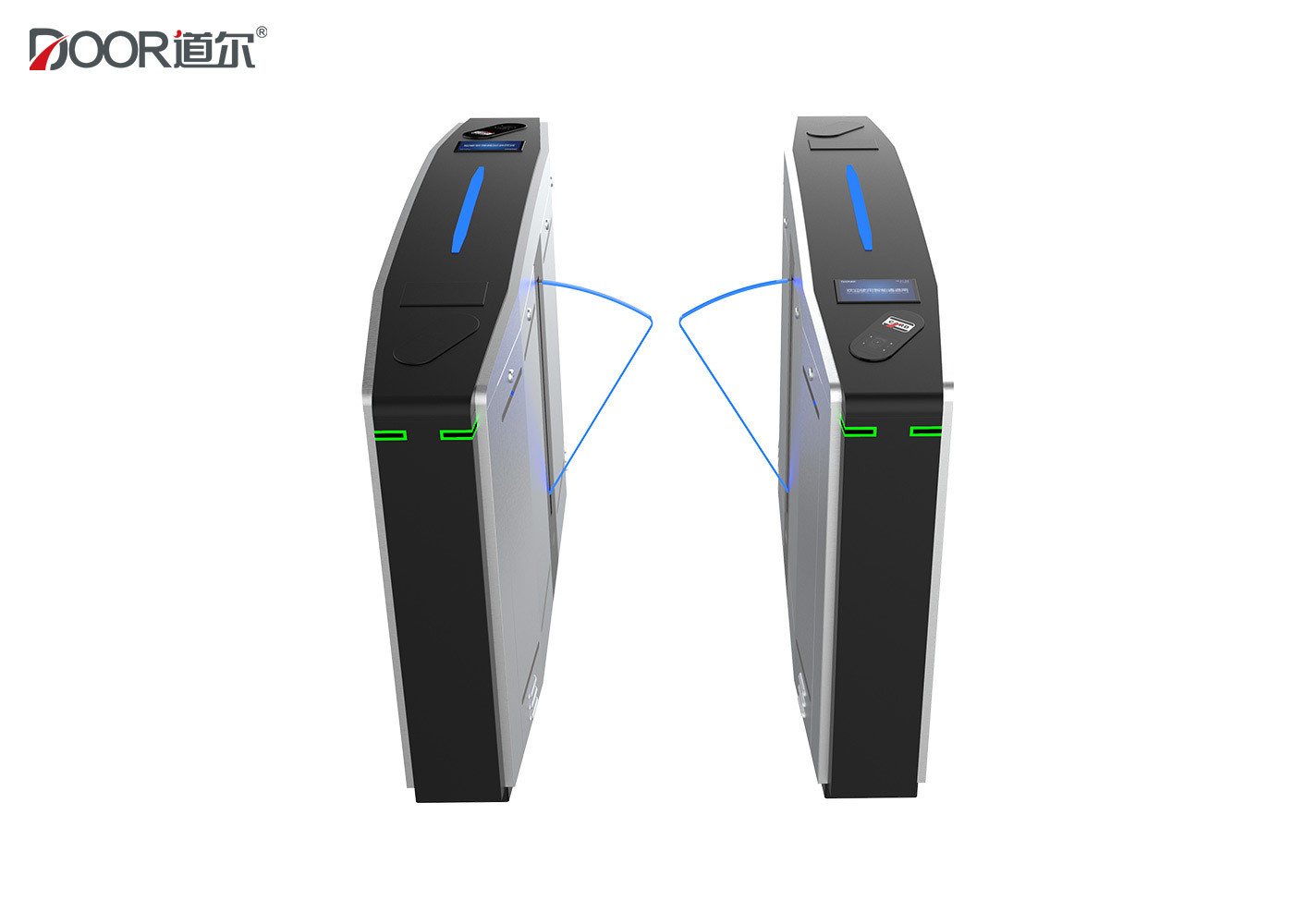

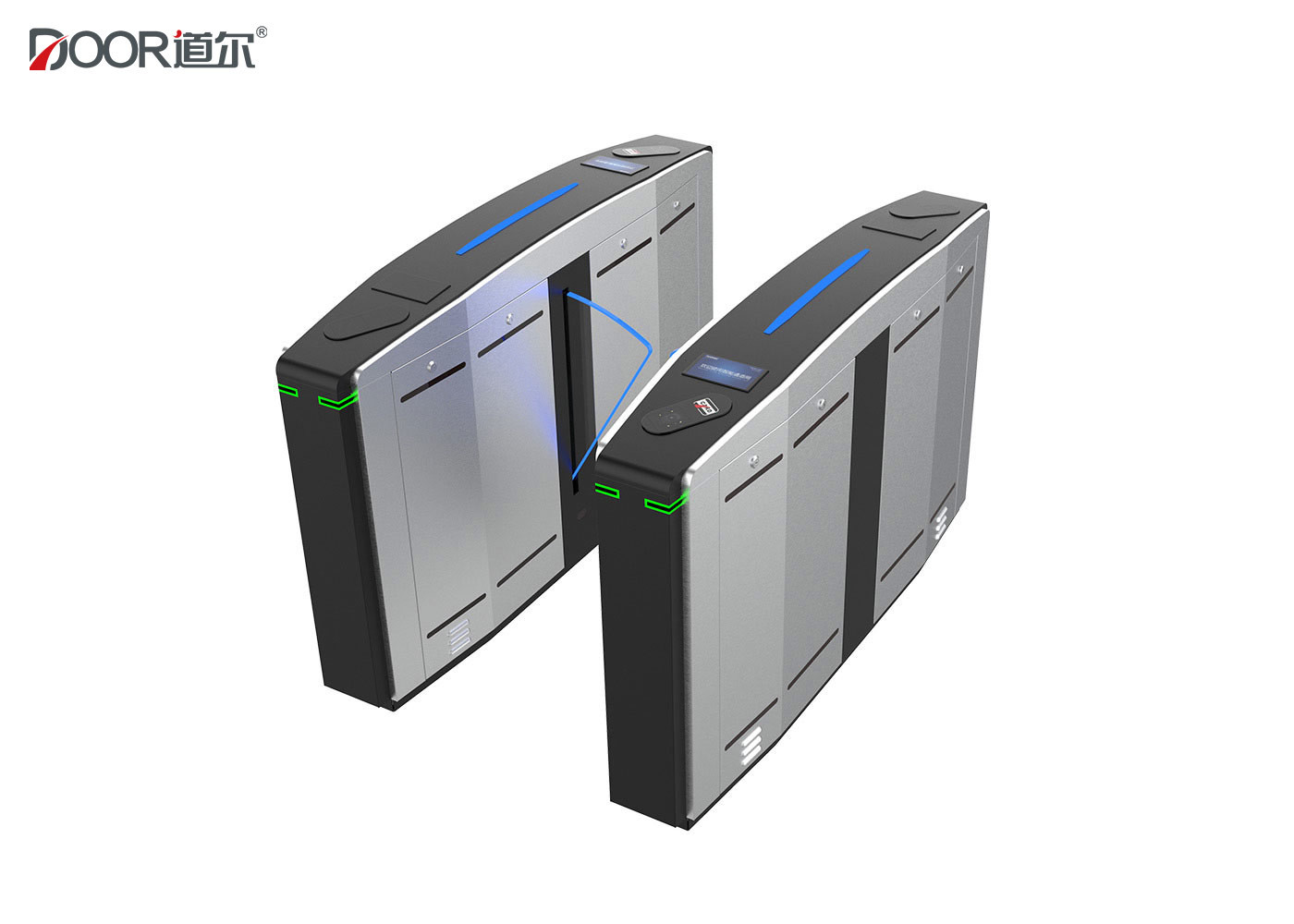

Water Proof Outdoor/Indoor Use Flap Barrier Turnstile With Display Screen
Product parameter
| Structure Parameter | |
| Material | SUS304 Brushless stainless steel top cover 2.0mm, whole body 1.5mm |
| Technical Parameter | |
| Passing Width | ≤550mm |
| Passing Speed | 30-45 person/min |
| Opening Speed | Adjustable, fastest 0.5S |
| Working Temperature | -20℃~+60℃ |
| Mean Cycles Between Failure | 5 million times |
| IP Rating | IP24 |
| Electric Parameters | |
| Voltage | AC110/AC220±10% 50-60HZ |
| Operating Power | single core 30w; Dual core 60w |
| Input Signal | Dry contact |
| Dimensions | 1600*280*1000 |
Dimension
Accessories featured by QC department
Appearance with display screen
Why choose us
Shenzhen DOOR specializes in manufacturing pedestrian turnstile gates in 2005, our factory has production capacity of 25000 sets of parking lot system and 30000 sets of turnstile gates every year. ODM&OEM service can also be offered. We have CE&ISO and more than 100 strategic partners.
Exhibitions
Factory Photo
To enable you to get a good understanding of our quality and service, welcome to visit our factory.
Term of payment and shipping service
FAQ:
Q1: Do you have English version system?
A: Yes, we can provide English version system. Also you can use your own system as well.
Q2: Does the equipement include control board?
A: Yes, it is with control board. But if need our system to management, need to order extra channel management control board.
Q3: Can we connect your access control system with our system?
A: Yes, we provide SDK and Software development service with connection port.
Q4: How can we install the turnstiles/barrier gates? Is it easy?
A:Yes, it's easy to install, we have done most of the jobs before sending our products. You just need fix the gates with screws, and connect power supply cables and internet cables.Also we provide one sheet of specific manual specification in the package.
Q5: What is your company’s strength?
A: We are the top 3 manufacturer in turnstile field in China. And we are listed company with famous brand in China. We have more than 400 employees, a R&D group with 160 people, 15-person customized team, 18 offices, 9 agents and more than 20 distributors all around China.
Q6: How do you do after-sale service?
A: We provide life-time technology support on line, by emails, video, phone etc. We have engineer speaking English, convenient to communicate with you directly.
Q7. How about the lead time?
Normally we have raw material in stock for the hot sale models of standard products. Regular products need 5-7 working days. The customized products need 15-20 working days.
