Listed Pedestrian Turnstile and Parking Devices Manufacturer for over 15 Years!
Stock Code:832966
| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | DOOR |
| Certification: | CE / IS09001 |
| Model Number: | DRTD 6909X |
| Minimum Order Quantity: | 2 sets |
| Price: | negotiable |
| Packaging Details: | wooden carton |
| Delivery Time: | 5-7 working days |
| Payment Terms: | Western Union, T/T, MoneyGram, D/P, D/A, L/C |
| Supply Ability: | 2500sets per month |
| Name: | Flap Barrier | Size: | 1600mm*280mm*980mm |
|---|---|---|---|
| Motor: | DC Brushless Motor | Material: | SUS304 Stainless Steel |
| Channel Width: | ≤550mm | Voltage: | AC110V/AC220V±10% |
| Passing Speed: | 30-35 Personal/min | Output Power: | Single Core 30W, Dual Core 60W |
| Protection Level: | IP42 | Number Of Sensor: | 6 Pairs |
| Highlight: | SUS304 Turnstile Entry Systems,IP42 Turnstile Entry Systems,IP42 Train Station Turnstiles |
||

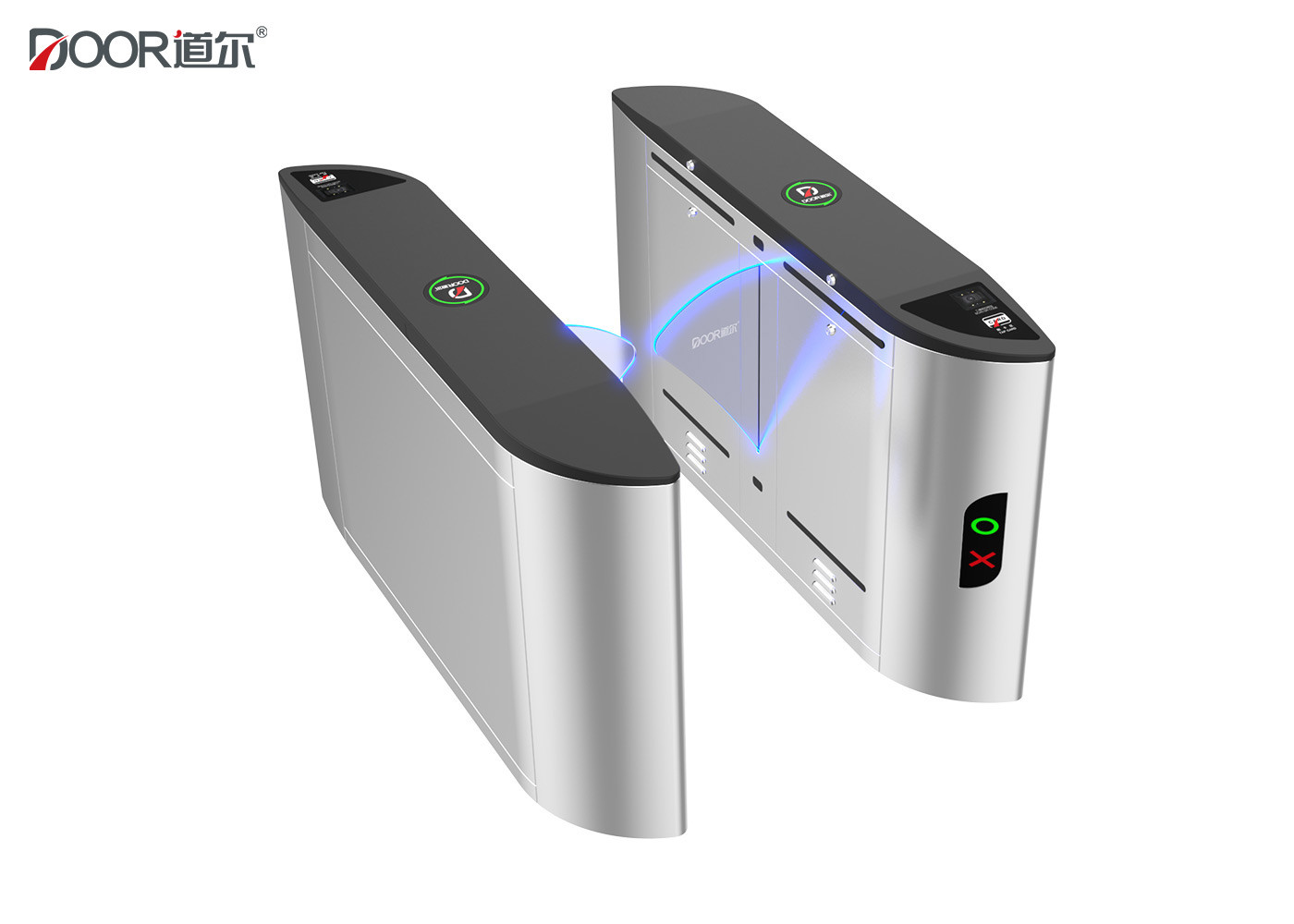

304Stainless Steel Automatic Door Flap Barrier Gate With Recognition Entrance Control Card Contact
Flap barrier turnstile Advantages
1. Control board
The gear rotation system is used to lock the gate in the zero position, the unlocking is more stable and reliable, the function is complete,
The door control and the consumption function are provided, and the gate can be controlled at the same time, no external consumption system is needed.
2. Card window
With a variety of working modes, you can both swipe in and out in both directions, and you can swipe the card while the other button is open.
3. Acrylic Wing Arm
The system will automatically reset the gate when the valve is not open within the specified time after opening the gate to ensure the safety of the channel.
Technical parameter:
|
Structure parameters |
|
|
Housing material |
304 brushed stainless steel |
|
Thickness |
cover2.0mm.body 1.5mm |
|
Arm material |
Acrylic |
|
Surface |
Laser cutting processing; precision welding |
|
Technical parameters |
|
|
Size |
1600*180*980mm |
|
Lane width |
550mm |
|
Arm Length |
260mm |
|
Passing speed |
35--50 people/min |
|
Open/close speed |
0.1sec |
|
Weight |
70KG |
|
infrared sensors |
6 pairs |
|
MCBF |
8 million times |
|
Application |
Indoor or outdoor |
|
Rotating directional |
Single way or Bi-directional adjustable |
|
Noise |
<55db |
|
Operating temperature |
-25 to 70℃ |
|
Relative humidity |
5% to 95% |
|
Package |
Carton box inside. Wooden case outside |
|
Electronic parameters |
|
|
Power supply |
110-220V/AC, 50/60HZ |
|
Rated power |
100W |
|
Input signal |
Dry contact |
|
Driving motor |
Brushless motor |
|
Mainboard |
Independent development patent mainboard |
Product Dimension:
Working Modes:
# Face recogniton
# IC/ID card
# Fingerprint
# OR code
# Bar code
# IR
FAQ
Q1: Do you have English version system?
A: Yes, we can provide English version system. Also you can use your own system as well.
Q2: Does the equipement include control board?
A: Yes, it is with control board. But if need our system to management, need to order extra channel management control board.
Q3: Can we connect your access control system with our system?
A: Yes, we provide SDK and Software development service with connection port.
Q4: How can we install the turnstiles/barrier gates? Is it easy?
A:Yes, it's easy to install, we have done most of the jobs before sending our products. You just need fix the gates with screws, and connect power supply cables and internet cables.Also we provide one sheet of specific manual specification in the package.
Q5: What is your company’s strength?
A: We are the top 3 manufacturer in turnstile field in China. And we are listed company with famous brand in China. We have more than 400 employees, a R&D group with 160 people, 15-person customized team, 18 offices, 9 agents and more than 20 distributors all around China.
Q6: How do you do after-sale service?
A: We provide life-time technology support on line, by emails, video, phone etc. We have engineer speaking English, convenient to communicate with you directly.
Q7:How about the lead time?
Normally we have raw material in stock for the hot sale models of standard products. Regular products need 5-7 working days. The customized products need 15-20 working days.
Q8: How many years of warranty?
A: We provide 2 years warranty for our products.
