Place of Origin: | China |
---|---|
Brand Name: | DOOR |
Certification: | CE / IS09001 |
Model Number: | WD.TD.6980B-EN |
Minimum Order Quantity: | 1 lane |
Price: | Negotiable |
Packaging Details: | plywood case |
Delivery Time: | 5-7 working days |
Payment Terms: | T/T, Western Union, MoneyGram, L/C, D/A, D/P |
Supply Ability: | 2000 sets per month |
Product Name: | Sliding Turnstile Gate | Dimension: | 1400*320*1000mm |
---|---|---|---|
Motor: | DC Blushless Motor | Material: | Sus304 Stainless Steel |
Passage Width: | 600mm | Power Supply: | AC110/AC220+/-10% |
Communication Interface: | RS485,dry Contact | Warranty: | 1 Year |
High Light: | 1400mm Height Sliding Turnstile,SUS304 Sliding Turnstile,1400mm Height Supermarket Turnstiles |

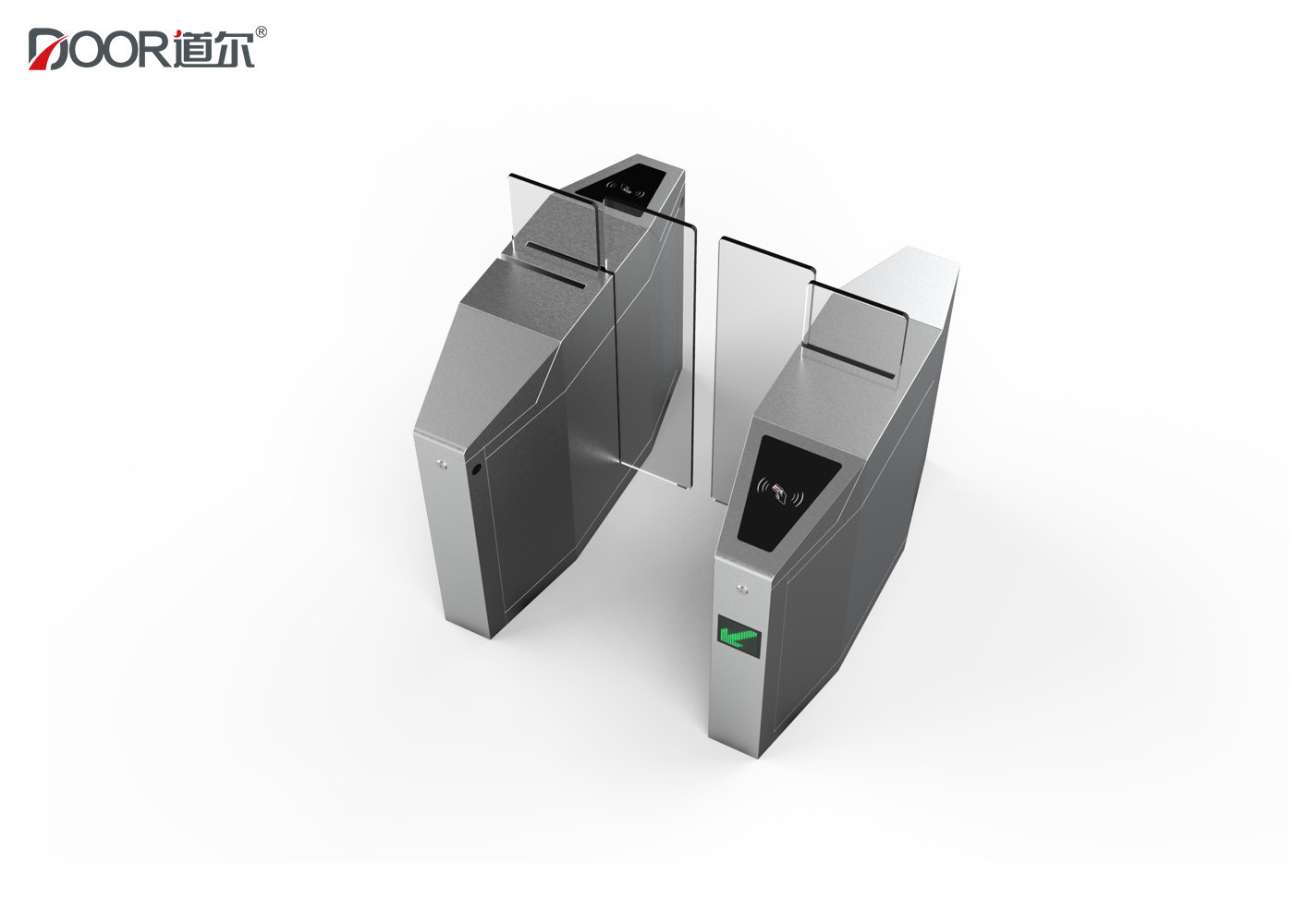

Anti-climb 1400MM height Supermarket Mall Gate Stainless Steel Pedestrian Sliding Gates
Sliding speed gate Turnstile Parameter:
Power Supply
|
AC220V±10V,50/60HZ;
|
Operating Temperature
|
-15℃-60℃
|
Passage direction | one-direction or bi-direction |
Working Humidity
|
≤95%, No Condensation
|
Passage Width
|
600mm one passage
|
Passing Speed
|
Normally 30-40person/min
|
Motor type
|
DC Brushless motor
|
Infrared Sensors
|
6 Pairs
|
Working Environment
|
indoor
|
Communication Distance
|
≤1200M
|
Input Connection
|
+12V Level Signal or Pulse Wide>100ms Pulse Signal,Current>100ms
|
Barrier Material
|
Acrylic, soft
|
Case Material
|
Stainless steel 304,thickness is no less than 1.5mm
|
Life Span
|
5 Million(Continuous Opening and Closing Operation)
|
IP protection level
|
IP42
|
Size
|
1400*320*1000mm or customized
|
Application
Sliding Gate Features:
1. Rapid identification technique, available to identify accurately and efficiently the magnetic card, bar code card, ID card and IC card.
2. DC Brushless Motor, Maintenance Free
3. On-line or off –line mode(optional)
4. Real time trouble self-detect and alarm indication, ensuring system safe operation and facilitating maintenance and operation
5. With direction indication, guiding passenger to entry and exit.
6. Self automatic locking to prevent force passing without the card
7. Automatic counting and displaying number of passenger, facilitating observation
8. Light and sound alarm indication function, preventing illegal entry or irregular passing
9. Blushless motor with long-life span
10. Wide lane for baby carriage and handicap
11. Flap turnstile barrier gate can be hooked with all kinds of access control systems,upon receiving the relay switch signal.
12. Gate auto open when power is off to meet the fire protection requirements.
Turnstile Flap Barrier Access control Mode:
