Listed Pedestrian Turnstile and Parking Devices Manufacturer for over 15 Years!
Stock Code:832966
| Place of Origin: | shenzhen China |
|---|---|
| Brand Name: | DOOR |
| Certification: | CE / IS09001 |
| Model Number: | WD.TD.6980X |
| Minimum Order Quantity: | 2 sets |
| Price: | negotiable |
| Packaging Details: | wooden carton |
| Delivery Time: | 5-7 working days |
| Payment Terms: | T/T, D/P, D/A, L/C, Western Union, MoneyGram |
| Supply Ability: | 2500 sets per month |
| Product Name: | Flap Barrier | Dimension: | 1400*300*1000mm |
|---|---|---|---|
| Communication Interface: | RS485 | Material: | 304 Stainless Steel |
| Working Voltage: | 24V/30W | Certification: | ISO,CE,RoHS |
| Direction: | Single/bi-directional | Warranty: | 1 Year |
| Color: | Stainless Steel Color | ||
| High Light: | 1400*300*1000mm Automatic Turnstiles,SS304 Automatic Turnstiles,1400*300*1000mm Security Turnstiles |
||

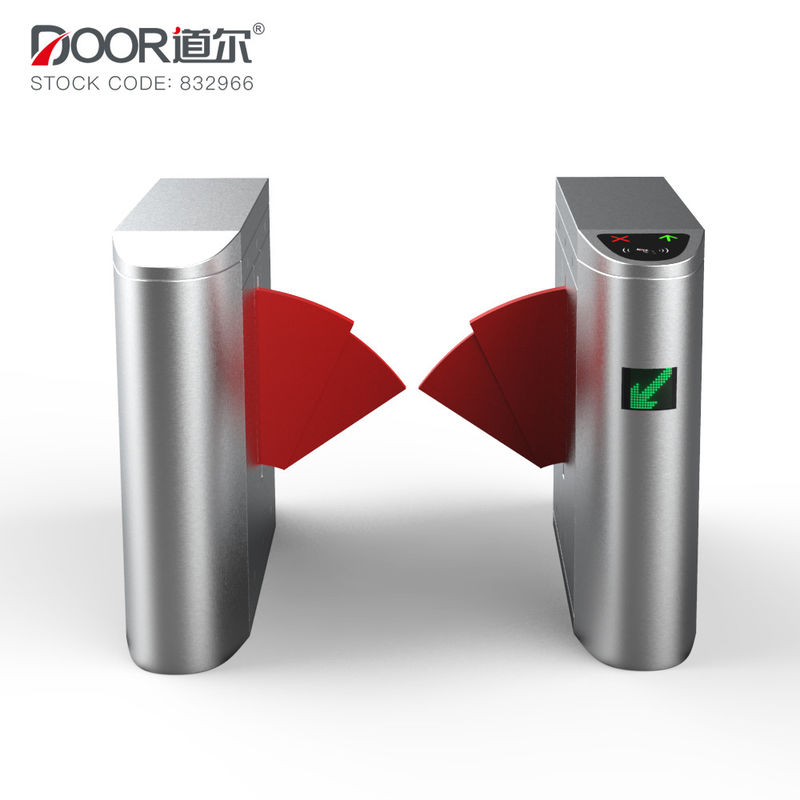

304 Stainless Steel Automatic Security Turnstile Flap Barrier Gate Access Control Electronic Turnstile
Specifications:
| 1) Power supply voltage: AC220±10% V, 50HZ |
| 2) Drive motor: DC brushless motor 24V/40W |
| 3) Working temperature: -15℃-60℃ |
| 4) Relative humidity: ≤90%, no condensation |
| 5) Input interface: 12V level signal or 12V pulse signal with pulse width> 100ms, driving current> 10mA |
| 6) Communication interface: RS485 electrical standard, |
| 7) Communication distance: ≤1200 meters |
| 8) Maximum channel width: 900mm |
| 9) Gate opening and closing time: 1.5 seconds |
| 10) The whole machine adopts 304 stainless steel, thickness is 1.2mm |
| 11) 5 pairs of infrared |
Features:
1)Rapid identification technique, available to identify accurately and efficiently the magnetic card, bar code card, ID card and IC card.
2)DC Brushless Motor, Maintenance Free
3)On-line or off –line mode(optional)
4)Real time trouble self-detect and alarm indication, ensuring system safe operation and facilitating maintenance and operation
5)With direction indication, guiding passenger to entry and exit.
6)Self automatic locking to prevent force passing without the card
7)Automatic counting and displaying number of passenger, facilitating observation and with a displaying total amount as high as 90,000
8)Light and sound alarm indication function, preventing illegal entry
