900mm Passing Width Security Access Control Speed Gate Automatic Flap Barrier Gate

900mm Passing Width Security Access Control Speed Gate Automatic Flap Barrier Gate
900mm Passing Width Security Access Control Speed Gate Automatic Flap Barrier Gate 900mm Passing Width Security Access Control Speed Gate Automatic Flap Barrier Gate 900mm Passing Width Security Access Control Speed Gate Automatic Flap Barrier Gate 900mm Passing Width Security Access Control Speed Gate Automatic Flap Barrier Gate 900mm Passing Width Security Access Control Speed Gate Automatic Flap Barrier Gate 900mm Passing Width Security Access Control Speed Gate Automatic Flap Barrier Gate 900mm Passing Width Security Access Control Speed Gate Automatic Flap Barrier Gate 900mm Passing Width Security Access Control Speed Gate Automatic Flap Barrier Gate 900mm Passing Width Security Access Control Speed Gate Automatic Flap Barrier Gate
Basic Information
Place of Origin: shenzhen China
Brand Name: DOOR
Certification: CE / IS09001
Model Number: WD.TD.6980X
Minimum Order Quantity: 2 sets
Price: negotiable
Packaging Details: wooden carton
Delivery Time: 5-7 working days
Payment Terms: T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability: 2500 sets per month
Get Best Price Contact Now
Product Name: Flap Barrier Dimension: 1400*300*1000 Mm
Communication Interface: RS485 Material: 304 Stainless Steel
Working Voltage: 24V/30W Certification: ISO,CE,RoHS
Direction: Single/bi-directional Warranty: 1 Year
Color: Stainless Steel Color
High Light:

Height 1000mm Flap Barrier Gate

,

RoHs Flap Barrier Gate

,

900mm Passing Width Security Speed Gate

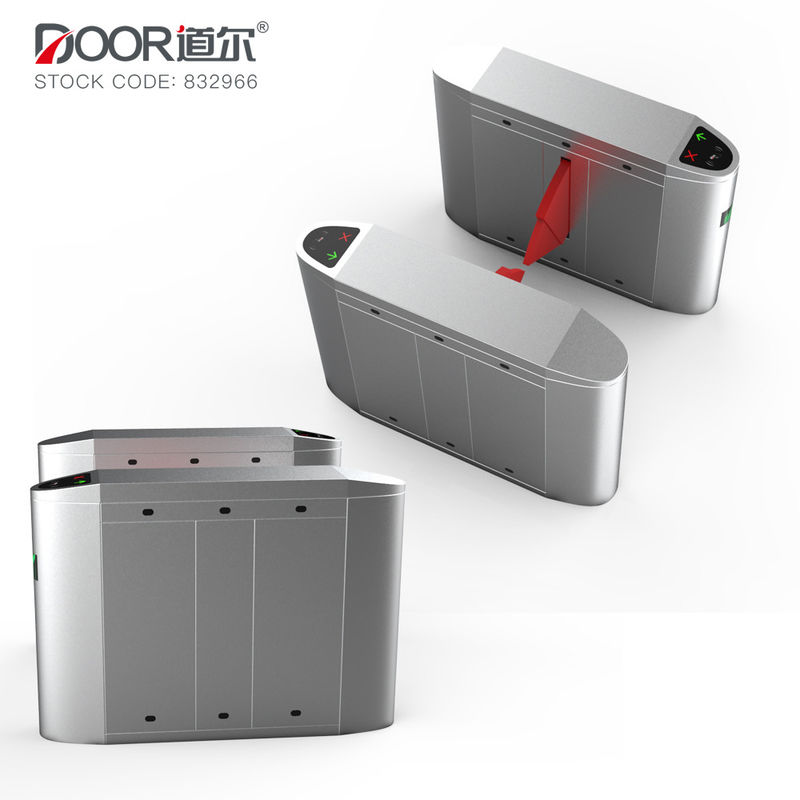

900mm Passing Width Security Access Control Speed Gate Automatic Flap Barrier Gate



flap barrier has features of precise craftsmanship, comprehensive functions and high reliability, which can be applied in high class communities, intelligent buildings, hotels, subway stations and other high level venues and then achieve a more intelligent management and control of pedestrian access. The most typical intelligent application is high speed railway station, subway station, BRT station, scenic ticket system and so on.



Specifications:

1) Power supply voltage: AC220±10% V, 50HZ
2) Drive motor: DC brushless motor 24V/40W
3) Working temperature: -15℃-60℃
4) Relative humidity: ≤90%, no condensation
5) Input interface: 12V level signal or 12V pulse signal with pulse width> 100ms, driving current> 10mA
6) Communication interface: RS485 electrical standard,
7) Communication distance: ≤1200 meters
8) Maximum channel width: 900mm
9) Gate opening and closing time: 1.5 seconds
10) The whole machine adopts 304 stainless steel, thickness is 1.2mm
11) 5 pairs of infrared

900mm Passing Width Security Access Control Speed Gate Automatic Flap Barrier Gate 0

900mm Passing Width Security Access Control Speed Gate Automatic Flap Barrier Gate 1

900mm Passing Width Security Access Control Speed Gate Automatic Flap Barrier Gate 2
