Listed Pedestrian Turnstile and Parking Devices Manufacturer for over 15 Years!
Stock Code:832966
| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | Shenzhen Door |
| Certification: | CE / IS09001 |
| Model Number: | WD.TD.6780-EN |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Wooden packing |
| Delivery Time: | 5-7days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, |
| Supply Ability: | 2500 sets/months |
| Material: | SUS304 Brushed Stainless Steel 1.2mm | Size: | L1400×W200×H1000mm |
|---|---|---|---|
| Passage Width: | ≤600mm | Passing Speed: | 30 Personal/min |
| Working Temperature: | -15℃~60℃ | IP Rating: | IP65 |
| Voltage: | AC110V/AC220V±10% 50-60Hz | Method Of Position: | Motor Driving |
| High Light: | Thick 1.2mm Half Height Turnstile,IC Card Half Height Turnstile,IP65 Waist Height Turnstile |
||
Features:
l IC cards,ID cards as automatic identification system and achieve access attendance function.
l A direction indicator showed that the pedestrian access to the current status and guide pedestrian correctly.
l Semi-auto mode:After reading card the passenger pushes the arm by hand until he goes through the barriers and the arm arrives in home position.
l Pure mechanical mode:The passenger pushes the arm by hand until he goes through the barriers.
l Single or bi-directional function
l Automatic reset of barrier arms after each passage.
l Cable or wireless remote control panel key override control for emergency situations.Automatically arm drop down when power off or emergency.
l Adjustable time out delay
Technical Parameter
| Passage Width | ≤600mm |
| Passing Speed30 | 30 personal/min IC Card |
| Working Temperature | -15℃~ 60℃ |
| Size | L1400×W200×H1000mm |
| IP Rating | IP 65 |

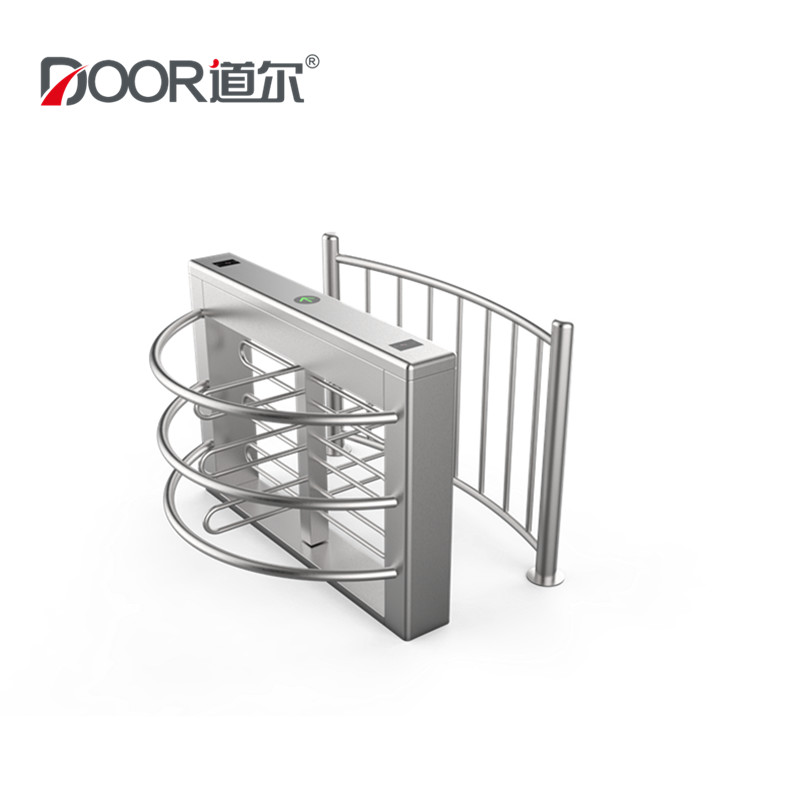

Product :
