Listed Pedestrian Turnstile and Parking Devices Manufacturer for over 15 Years!
Stock Code:832966
| Place of Origin: | shenzhen China |
|---|---|
| Brand Name: | DOOR |
| Certification: | CE / IS09001 |
| Model Number: | DR.TD.6971X |
| Minimum Order Quantity: | 2 sets |
| Price: | negotiable |
| Packaging Details: | wooden carton |
| Delivery Time: | 5-7 working days |
| Payment Terms: | T/T, D/P, D/A, L/C, Western Union, MoneyGram |
| Supply Ability: | 2500 sets per month |
| Product Name: | Flap Barrier | Dimension: | 1200x280x1000mm |
|---|---|---|---|
| Driving Motor: | DC Brush Motor | Operating Time: | 1.5 Seconds |
| Arm Material: | Acrylic Arm | Certification: | ISO,CE,RoHS |
| Direction: | Single Directional/Bi-directional | Pass Rate: | 30-35 Persons/minute |
| Color: | Stainless Steel Color | Working Environment: | -30℃ To +55℃; With A Humidity Less Than 95%,indoor |
| High Light: | RS485 Flap Barrier Gate,Bidirectional Flap Barrier Turnstile,RoHS Access Control Flap Barrier |
||

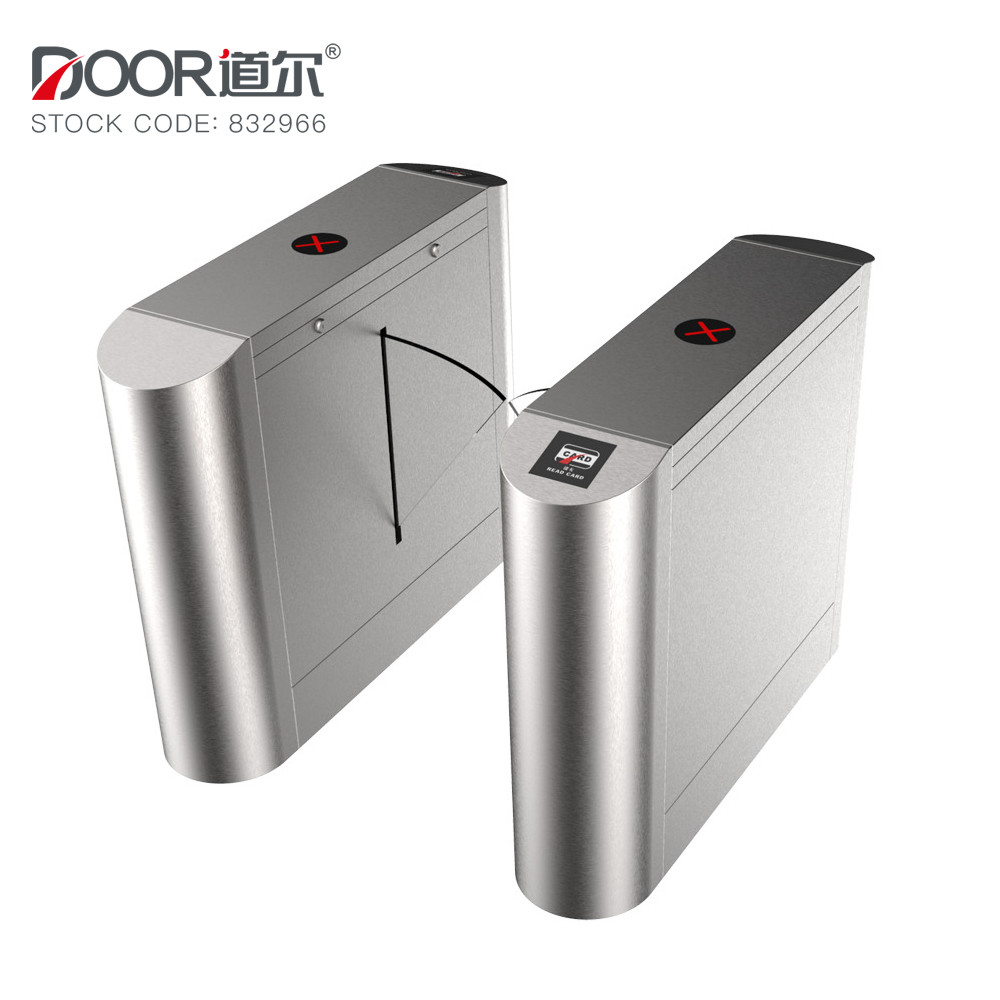

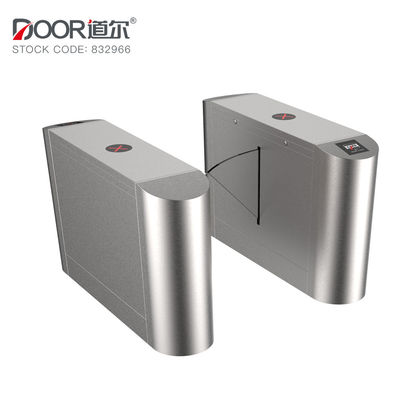

Acrylic Arm Single Bidirectional RS485 Flap Barrier Gate Access Control
Single/Bi-Directional Security Access Control Flap Barrier
| Size | 1200x280x1000mm |
| Material | SUS304 Stainless Steel |
| Arm material | Acrylic Arm |
| Pass Width | 550mm |
| Passage direction | Single directional/Bi-directional |
| Pass rate | 30-35 persons/minute |
| Operating time | 1.5 seconds |
| Power input | AC100-240V,50/60HZ |
| Working voltage | 24V |
| Working humidity | ≤90%, no condensation |
| Working temperature | -15℃~+60℃ |
| Working environment | Indoor |
| Communication interface | RS485, Dry contact |
| Mechanism | DC Brush motor |
| Infrared sensor | 4 pairs |
| MCBF | 1,500,000 Cycles |
| Communication interface: | RS485 |
Features
1) With zero self-check function, it is convenient for users to maintain and use;
2) Illegal entry has an alarm prompt function;
3) Anti-shock function, when the opening signal is not received, the telescopic baffle (swing arm) is automatically locked;
4) Infrared/mechanical dual anti-pinch function, when the telescopic baffle (swing arm) encounters resistance during the reset process, the motor will automatically stop working within the specified time, and the strength is very small, and an alarm signal will be issued at the same time;
5) With automatic reset function, after the pedestrian reads the valid card, if the pedestrian does not pass within the specified time, the system will automatically cancel the pedestrian's permission to pass this time;
6) A unified standard external electrical interface, which can be connected to a variety of card readers, and can be remotely controlled and managed through the management computer;
7) The entire system runs smoothly with low noise.
