| Place of Origin: | shenzhen China |
|---|---|
| Brand Name: | DOOR |
| Certification: | CE / IS09001 |
| Model Number: | DRTD6971X |
| Minimum Order Quantity: | 2 sets |
| Price: | negotiable |
| Packaging Details: | wooden carton |
| Delivery Time: | 5-7 working days |
| Payment Terms: | T/T, D/P, D/A, L/C, Western Union, MoneyGram |
| Supply Ability: | 2500 sets per month |
| Product Name: | Flap Barrier Turnstile | Dimension: | 1200x280x1000mm |
|---|---|---|---|
| Driving Motor: | DC Brush Motor | Material: | 304 Stainless Steel |
| Voltage: | AC220V/110V | Certification: | ISO,CE,RoHS |
| Direction: | Bi-direction Adjustable | Warranty: | 1 Year |
| Color: | Stainless Steel Color | Working Environment: | -30℃ To +55℃; With A Humidity Less Than 95%,indoor |
| High Light: | Acrylic Arm Steel Barrier Gate,SUS304 Flap Barrier Mechanism |
||

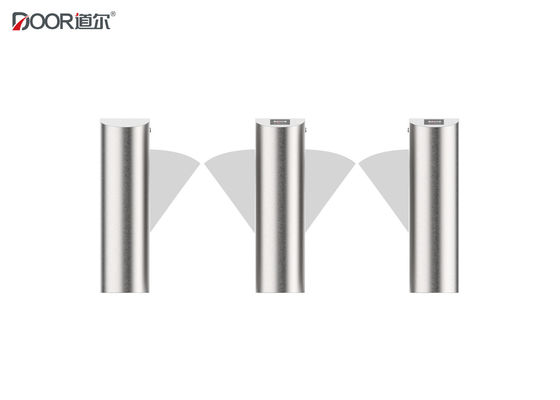

304 Stainless Steel Turnstile Flap Barrier Gate For access Control
Product Description:
All flap barrier are space efficient security barriers, with a compact design, yet offer sufficient space to integrate any access control system. They can be mounted with display, passage counter, card reader, token operation, traffic lights, command console, alarm system against unauthorised entries, interfaced with a PC through a RS232(RS485,TCP-IP) line.
Product Parameter:
| Structure Parameter | |
| Material | SUS304 brushed stainless steel |
| Swing gate material | Acylic |
| Channel Width | 550mm |
| Technical Parameter | |
| Passing Speed | 30-35 personal/min |
| Opening Speed | Adjustable <1S |
| Working Temperature | -25℃-+70℃ |
| Mean Cycles Between Failure | 5 million times |
| IP Rating | IP24(if used outdoor, recommend to build a canopy) |
| Electric Parameter | |
| Voltage | AC110/AC220 50-60Hz |
| Power | Single Core 35w, dual core 60W |
| Driving Motor | DC brush motor |
| Method of position | Motor drive |
| Communication interface | RS485 |
Product Key Features:
Application:
Widely used in commercial and management office buildings, ministries, government service halls, public buildings, banks and financial institutions, airports, hotels, clubs, high-end residential areas, schools, colleges and universities, industrial facilities, etc.
FAQ:
Q1: Do you have English version system?
A: Yes, we can provide English version system. Also you can use your own system as well.
Q2: Does the equipement include control board?
A: Yes, it is with control board. But if need our system to management, need to order extra channel management control board.
Q3: Can we connect your access control system with our system?
A: Yes, we provide SDK and Software development service with connection port.
Q4: How can we install the turnstiles/barrier gates? Is it easy?
A:Yes, it's easy to install, we have done most of the jobs before sending our products. You just need fix the gates with screws, and connect power supply cables and internet cables.Also we provide one sheet of specific manual specification in the package.
Q5: What is your company’s strength?
A: We are the top 3 manufacturer in turnstile field in China. And we are listed company with famous brand in China. We have more than 400 employees, a R&D group with 160 people, 15-person customized team, 18 offices, 9 agents and more than 20 distributors all around China.
Q6: How do you do after-sale service?
A: We provide life-time technology support on line, by emails, video, phone etc. We have engineer speaking English, convenient to communicate with you directly.
Q7. How about the lead time?
Normally we have raw material in stock for the hot sale models of standard products. Regular products need 5-7 working days. The customized products need 15-20 working days.
