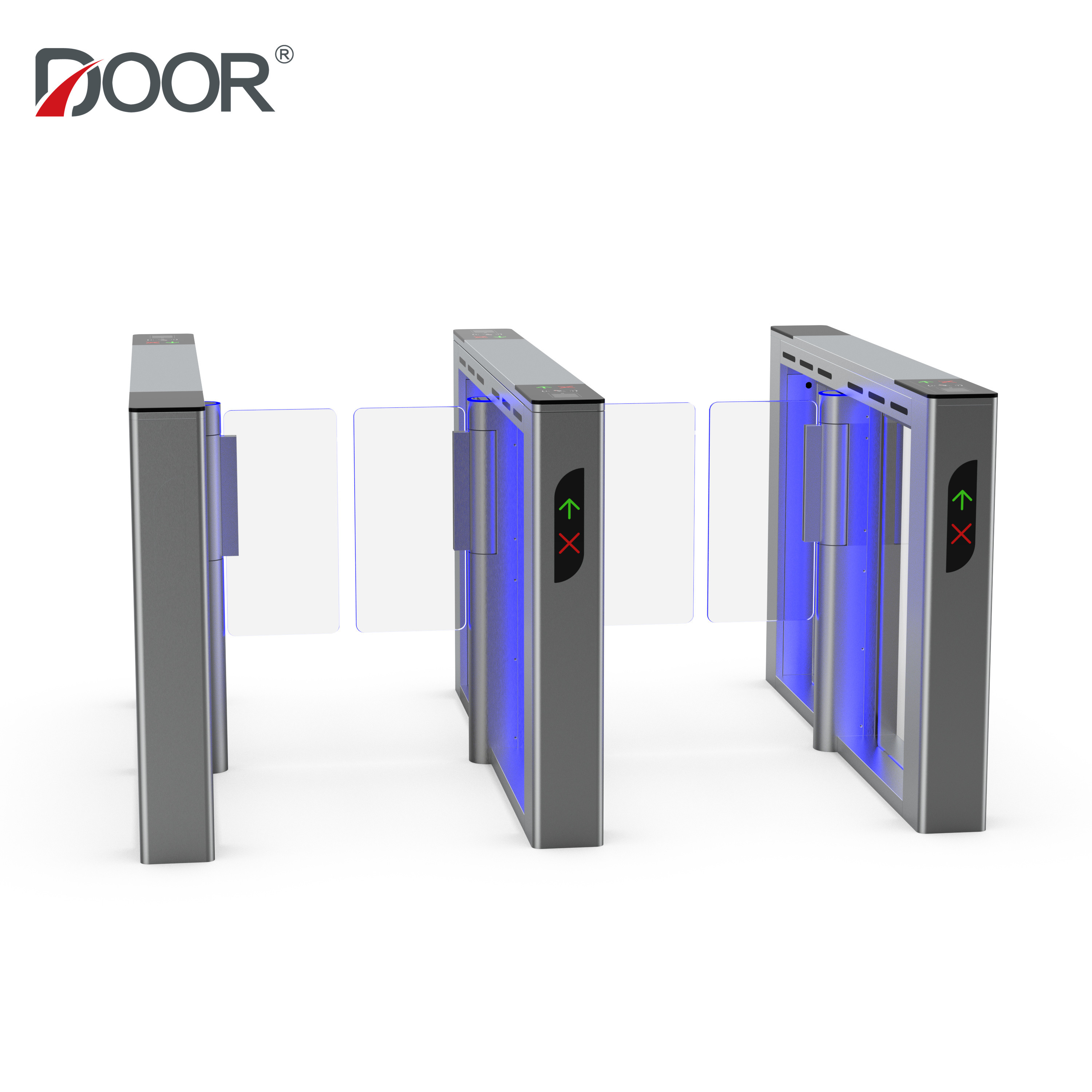

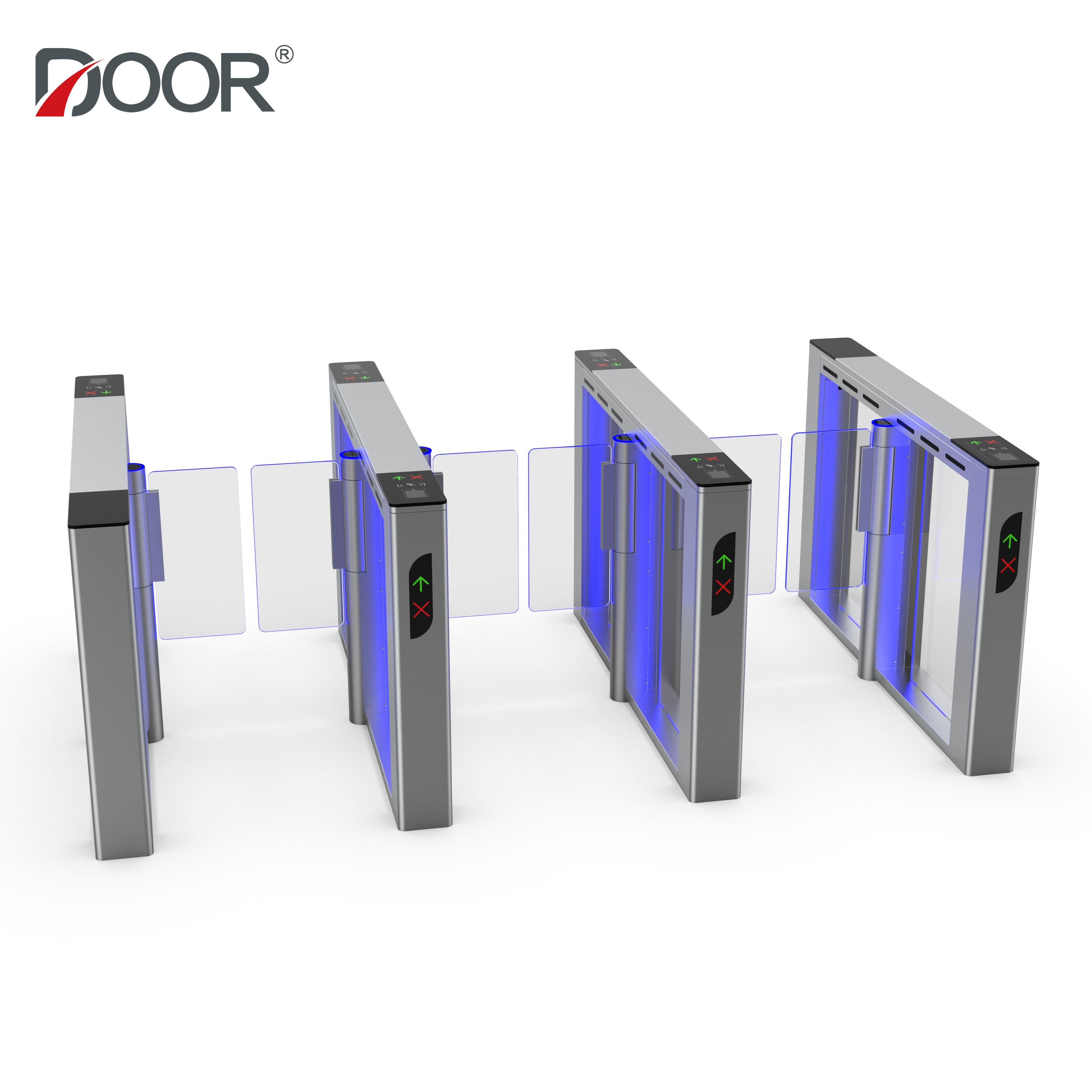

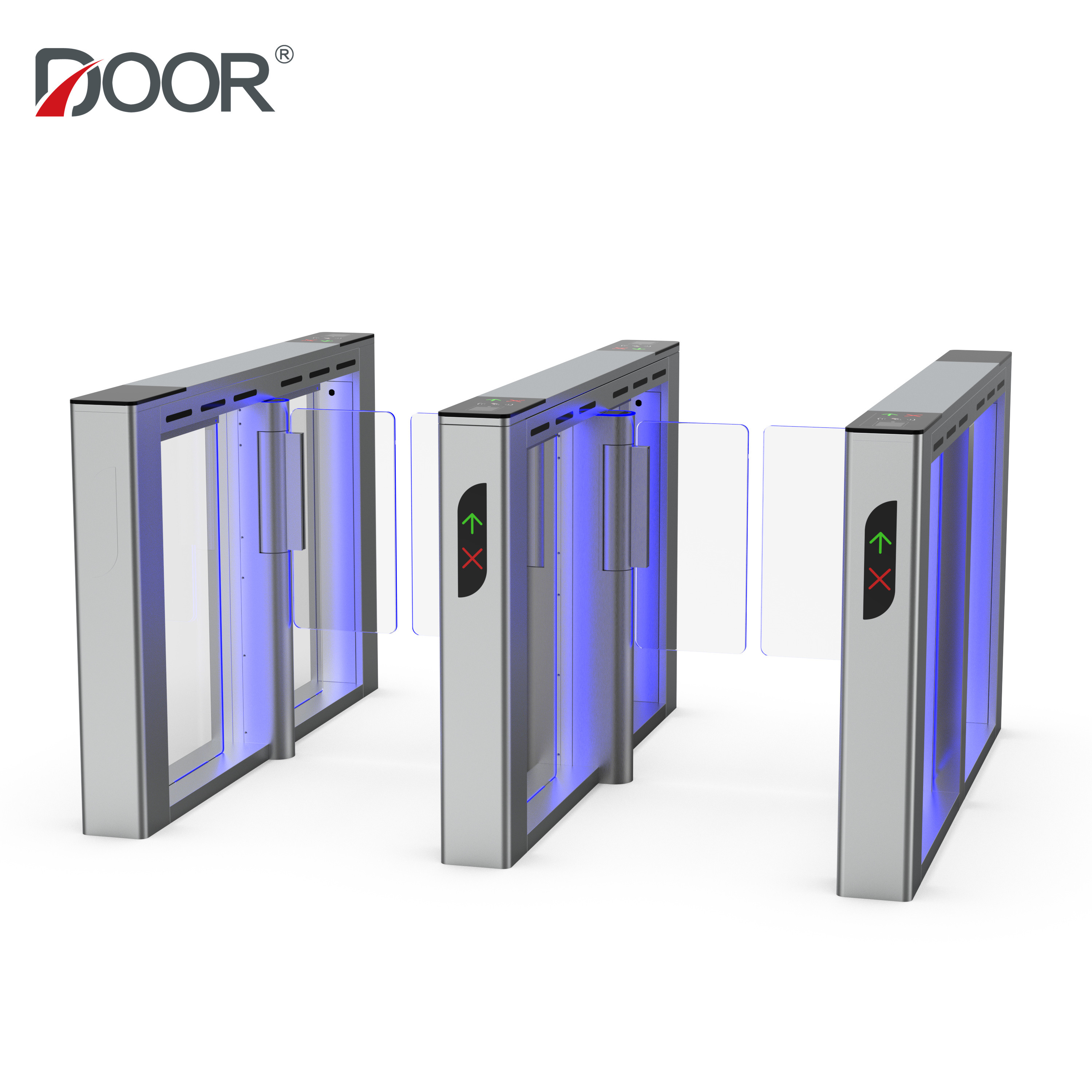

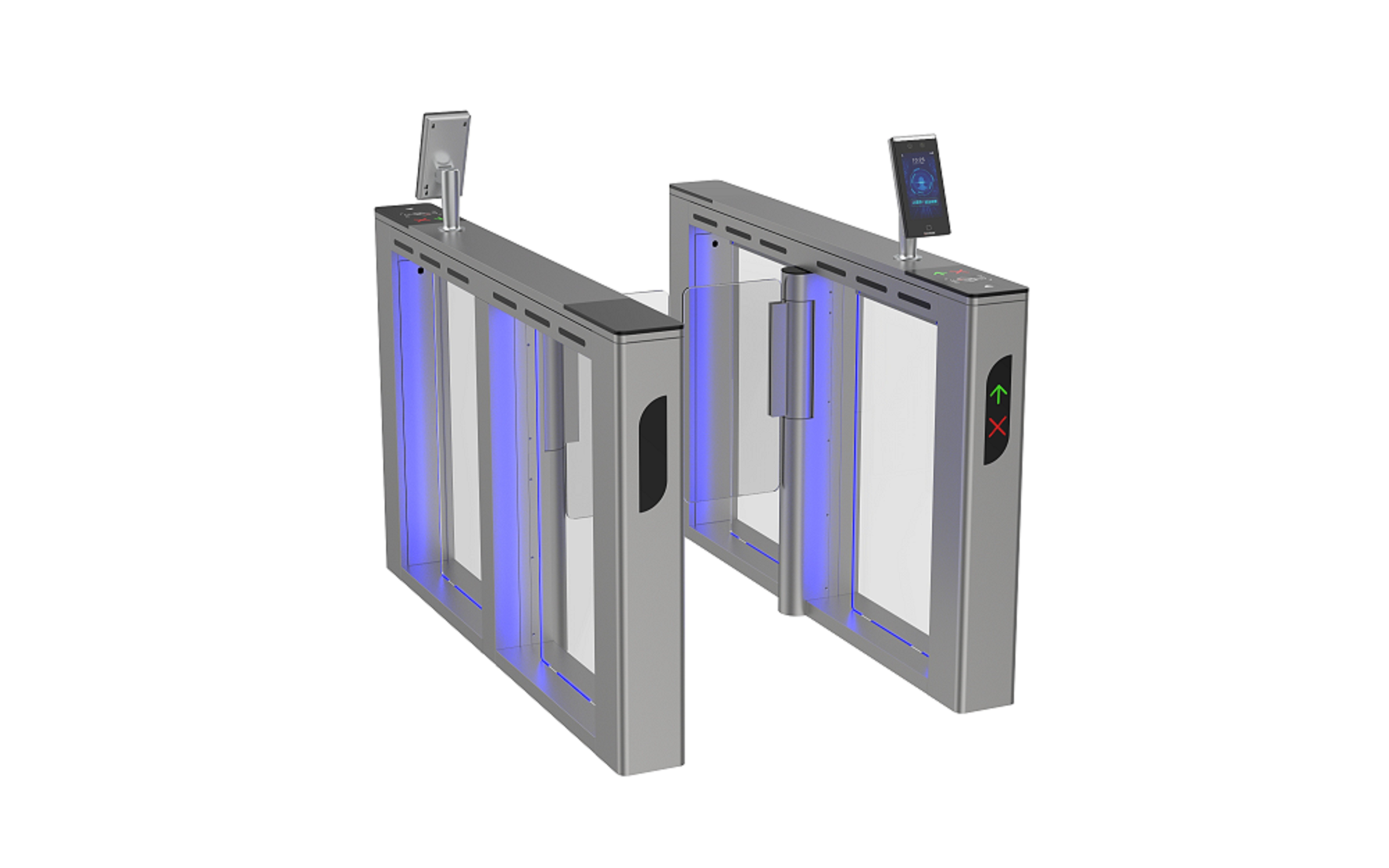

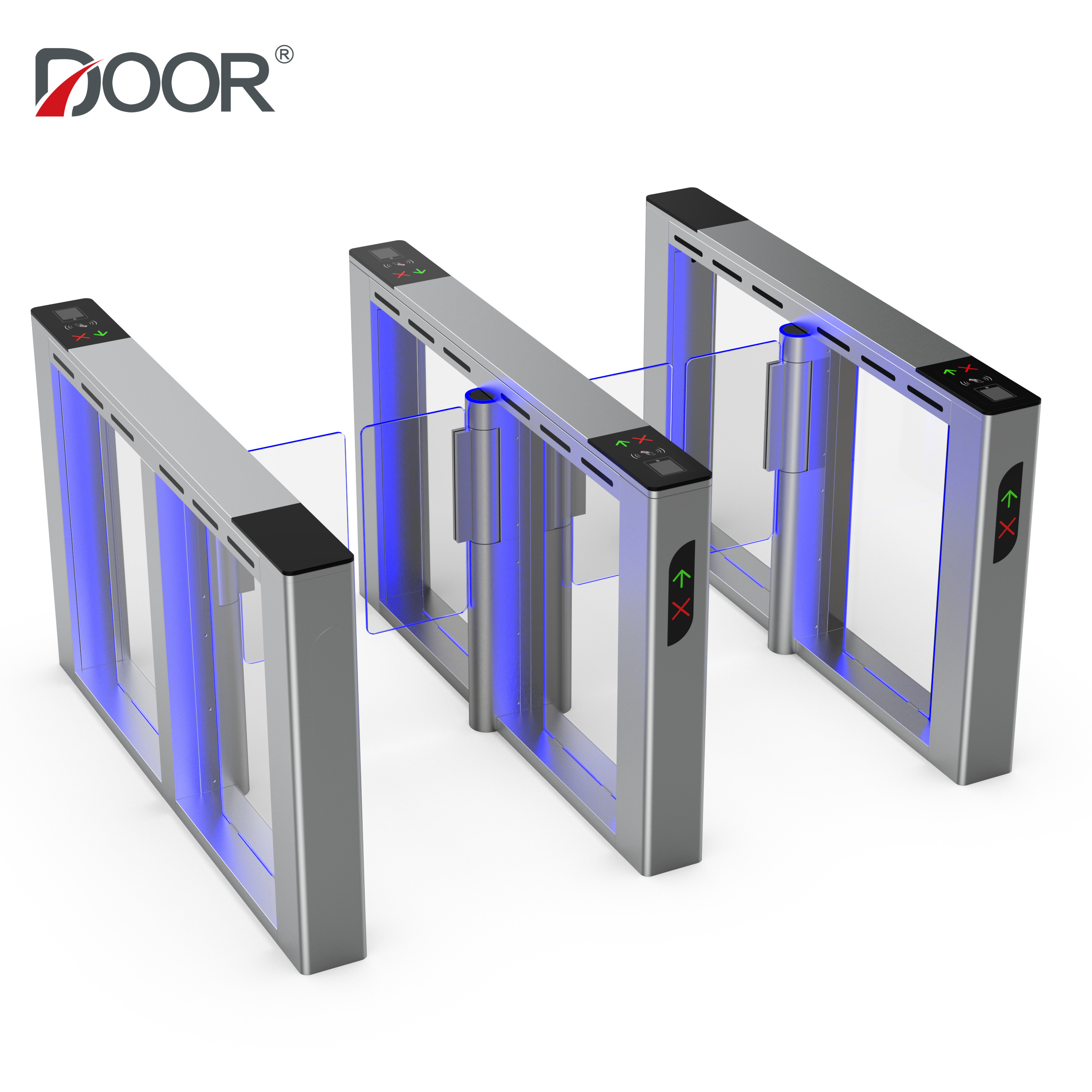

SUS304 Stainless Steel Speed Gate Turnstile with Servo Motor

Basic Information

Place of Origin:	China
Brand Name:	DOOR or OEM
Certification:	CE / IS09001
Model Number:	DR.TD6621L

Minimum Order Quantity:	1 lane
Price:	Negotiable
Packaging Details:	Plywood box
Delivery Time:	5-7 working days
Payment Terms:	T/T
Supply Ability:	2500 sets per month

Get Best Price Contact Now

Material:	SUS304 Brushed Stainless Steel	Suitable For:	Access Control, Entrance And Exit Control
Turnstile Material:	SUS304 Stainless	Top Cover Material:	SUS304 Stainless
Communication Interface:	RS485, Dry Contact, Relay	Power Input:	AC100-240V; 50/60HZ
Swing Arm Available:	Acrylics Or Tempered Glass	Driving Motor:	Servo Motor
Opening Signal Input::	Dry Contact	Working Environment:	-25℃-+70℃
Pass Speed:	30-50p/m	Support System:	Face Recognition,ic/id Card,fingerprint
Motor:	Servo Motor	IR Sensor:	8 Pairs
IP Rating:	IP42	Mean Cycles Between Failure:	20 Million Times
Voltage:	AC110V/AC220V±10% 50-60Hz	Operating Power:	Single Core 100w, Dual Core 200w
Method Of Position:	Motor + Clutch + Encoder	Mtbf:	10 Million Times
Size:	L1600W160H990mm
Highlight:	SUS304 stainless steel speed gate , servo motor turnstile gate , speed gate turnstile with warranty

Silver Speed Gate Turnstile Fastlane Turnstile

Product Specifications

Attribute	Value
Material	SUS304 brushed stainless steel
Suitable For	Access Control, Entrance And Exit Control
Turnstile Material	SUS304 Stainless
Top Cover Material	SUS304 Stainless
Communication Interface	RS485, dry contact, relay
Power Input	AC100-240V; 50/60HZ
Swing arm available	Acrylics Or Tempered Glass
Driving Motor	Servo Motor
Opening Signal Input	Dry Contact
Working environment	-25℃-+70℃
Pass speed	30-50p/m
Support System	Face Recognition, IC/ID Card, Fingerprint
Motor	Servo motor
IR Sensor	8 pairs
IP Rating	IP42
Mean Cycles Between Failure	20 million times
Voltage	AC110V/AC220V±10% 50-60Hz
Operating Power	Single Core 100w, dual core 200w
Method of position	Motor + clutch + encoder
MTBF	10 Million Times
Size	L1600W160H990mm

Product Overview

Supermarket Turnstiles Speed Gate with optional face recognition and servo motor person control. Crafted from stainless steel via laser cutting and CNC bending, this speed gate combines sleek aesthetics with precision engineering. Advanced manufacturing and rigorous quality control ensure a durable, minimalist design.

Key Features

Seamless Third-Party Integration: Compatible with industry-standard access control devices (IC/ID card readers, QR code scanners, facial recognition terminals, etc.). (Note: Recognition systems not included; product provides standardized connection interfaces only)
Emergency Safety: Dedicated fire button interfaces with the system for automatic gate release during emergencies.
High-Speed Detection: 8 military-grade infrared sensors with advanced algorithms prevent tailgating, reverse passage, and clamping.
Enhanced Safety: Multi-layer anti-pinch design and optional widened lane for luggage/wheelchair access.
Seamless Integration: Compatible with RS485, TCP/IP (optional), and dry contact interfaces, works with all major access control systems.

Applications

Ideal for office buildings, government facilities, banks, airports, hotels, campuses, and high-end residential areas.

Customization Options

Customized logo (Min. order: 2 pieces)
Customized packaging (Min. order: 2 pieces)
Graphic customization (Min. order: 2 pieces)

Supplier's Customization Ability

Minor customization
Drawing-based customization
Sample-based customization
Full customization

Shipping Information

Shipping fee and delivery date to be negotiated. Contact supplier for more details.
