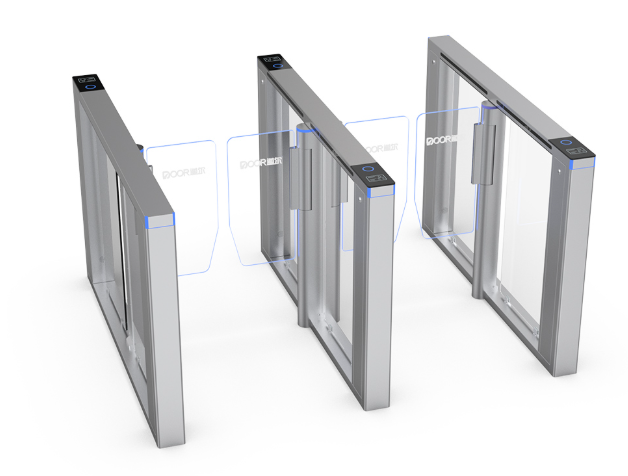

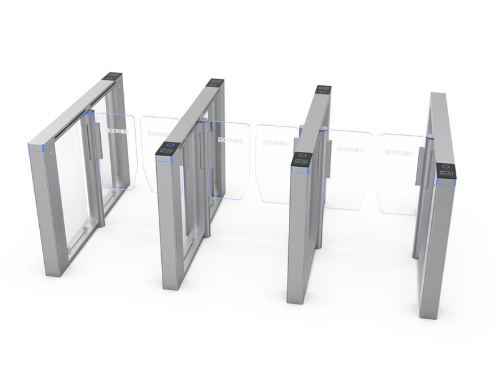

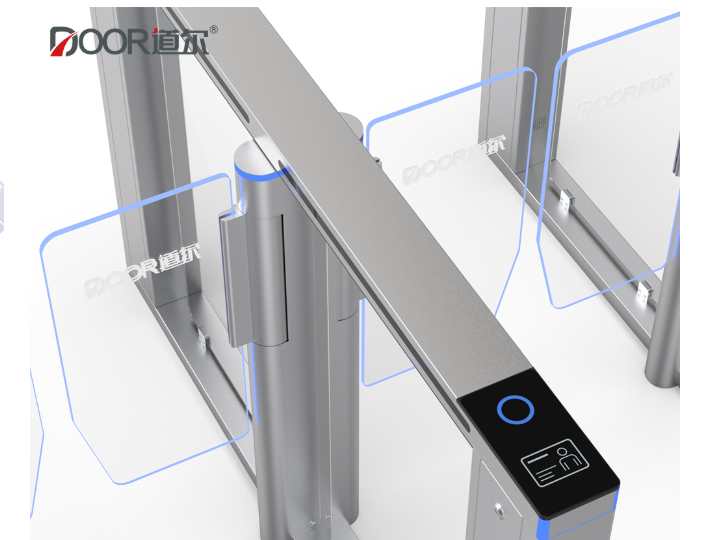

SUS304 Stainless Steel Speed Gate Turnstile with Servo Motor

Basic Information

Place of Origin:	China
Brand Name:	DOOR or OEM
Certification:	CE / IS09001
Model Number:	DR.TD6621B

Minimum Order Quantity:	1 lane
Price:	Negotiable
Packaging Details:	Plywood box
Delivery Time:	5-7 working days
Payment Terms:	T/T
Supply Ability:	2500 sets per month

Get Best Price Contact Now

Material:	SUS304 Brushed Stainless Steel	Suitable For:	Access Control, Entrance And Exit Control
Turnstile Material:	SUS304 Stainless	Top Cover Material:	SUS304 Stainless
Communication Interface:	RS485, Dry Contact, Relay	Power Input:	AC100-240V; 50/60HZ
Swing Arm Available:	Acrylics Or Tempered Glass	Driving Motor:	Servo Motor
Opening Signal Input::	Dry Contact	Working Environment:	-25℃-+70℃
Pass Speed:	30-50p/m	Support System:	Face Recognition,ic/id Card,fingerprint
Motor:	Servo Motor	IR Sensor:	8 Pairs
Passage Width:	Standard 600mm, Max 900mm	IP Rating:	IP42
Mean Cycles Between Failure:	20 Million Times	Voltage:	AC110V/AC220V±10% 50-60Hz
Operating Power:	Single Core 100w, Dual Core 200w	Method Of Position:	Motor + Clutch + Encoder
Mtbf:	10 Million Times	Size:	1500110988mm
Color:	Can Be Customized	Operating Time:	Adjustable, Fastest 0.3S
Highlight:	SUS304 stainless steel speed gate , servo motor turnstile gate , speed gate turnstile with warranty

Premium Business Entrance Speed Gates - Sleek & Grand Design

Product Specifications

Attribute	Value
Material	SUS304 brushed stainless steel
Suitable For	Access Control, Entrance And Exit Control
Turnstile Material	SUS304 Stainless
Top Cover Material	SUS304 Stainless
Communication Interface	RS485, dry contact, relay
Power Input	AC100-240V; 50/60HZ
Swing arm available	Acrylics Or Tempered Glass
Driving Motor	Servo Motor
Opening Signal Input	Dry Contact
Working environment	-25℃-+70℃
Pass speed	30-50p/m
Support System	Face Recognition, ic/id Card, fingerprint
Motor	Servo motor
IR Sensor	8 pairs
Passage Width	Standard 600mm, max 900mm
IP Rating	IP42
Mean Cycles Between Failure	20 million times
Voltage	AC110V/AC220V±10% 50-60Hz
Operating Power	Single Core 100w, dual core 200w
Method of position	Motor + clutch + encoder
MTBF	10 Million Times
Size	1500110988mm
Color	Can Be Customized
Operating Time	Adjustable, Fastest 0.3S

Key Features

Dual-color lighting system (red/green) for clear traffic indication and channel control
Integrated chassis lighting for collision prevention and enhanced aesthetics
Advanced anti-trailing and anti-reverse passage functions
Sound and light alarms for unauthorized access attempts
8-pair infrared anti-pinch protection with fire alarm linkage
Triple pedestrian protection system: infrared sensors, pass logic, and return-when-blocked
Multiple operation modes: normally closed (locking/non-locking) and peak traffic
Memory opening, delay closing, and overtime closing functions
Bidirectional traffic capability with ≤180° swing arc
Integrated card/QR code reader with face recognition compatibility
Fire-safe free passage during power outages
Ultra-fast 0.5 second opening/closing speed
Servo motor driven for reliable, quiet operation with extended lifespan

Applications

Widely used for official or corporate buildings, sectioning off certain areas in hotels (gyms, spas), industrial buildings or offices.

Customization Options

Customized logo (Min. order: 2 pieces)
Customized packaging (Min. order: 2 pieces)
Graphic customization (Min. order: 2 pieces)

Supplier's Customization Ability

Minor customization
Drawing-based customization
Sample-based customization
Full customization

Shipping Information

Shipping fee and delivery date to be negotiated. Contact supplier for more details.
