Listed Pedestrian Turnstile and Parking Devices Manufacturer for over 15 Years!
Stock Code:832966
| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | Door |
| Certification: | CE / IS09001 |
| Model Number: | 6971 |
| Minimum Order Quantity: | 1 |
| Price: | negotiable |
| Packaging Details: | plywood wooden/carton |
| Delivery Time: | 5-7 working days |
| Payment Terms: | D/A, D/P, L/C, Western Union, MoneyGram |
| Supply Ability: | 2500 sets per month |
| Dimensions: | 1200 × 280 × 1000 (mm) | Power Supply Voltage: | AC220±10% V, 50HZ |
|---|---|---|---|
| Drive Motor: | DC Motor 24V/30W | Working Environment Temperature: | -15℃～60 ℃ |
| Relative Humidity: | Relative Humidity ≤90%, Non-condensing | Opening And Closing Time: | 1.5 Seconds |
| Use Environment: | Indoor | ||
| High Light: | 1.5s Flap Barrier Gate,DC24V Flap Barrier Gate,1.5s Flap Turnstile |
||

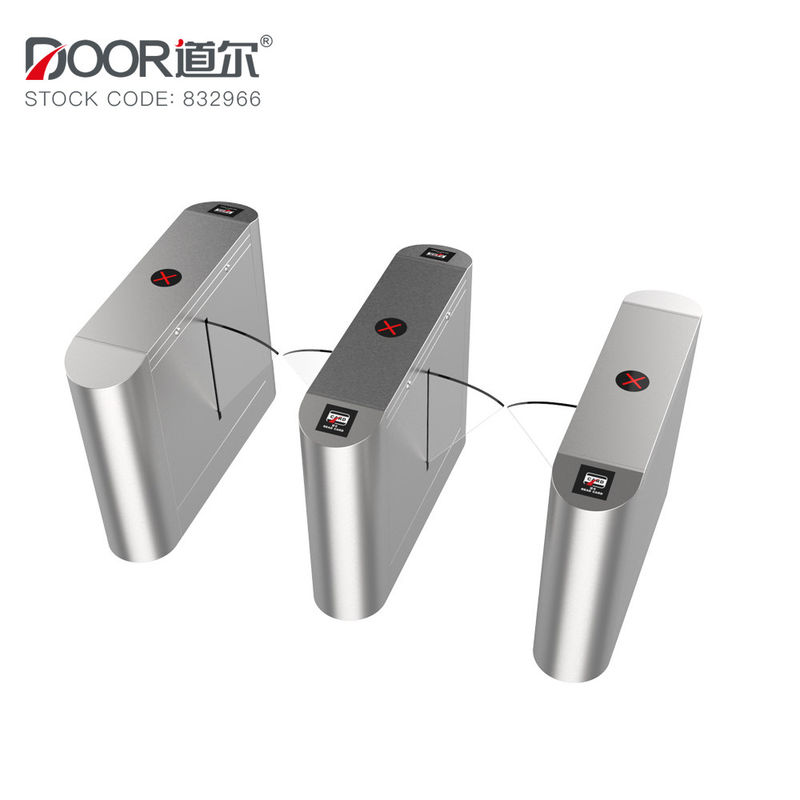

DOOR Pedestrian Glass Turnstile Suppliers Entrance Automatic Systems Flap Barrier Gate
Specification:
| Product Size | 1200*280*1000mm |
| Material | SUS 304 stainless steel |
| Pass Width | 550mm |
| Power Input | AC220V,50Hz |
| Driving Voltage | DC24V 5A |
| Driving Mode | brushless DC motor |
| Reacting time | 0.2S |
|
Power supply voltage: |
DC power supply 24V/3A |
Application Of Flap Barrier Gate:
Flap Barrier Gate Widely used in commercial and management office buildings, ministries, government service halls, public buildings, banks and financial institutions, airports, hotels, clubs, high-end residential areas, schools, colleges and universities, industrial facilities, etc.
WHY US:
Company Exhibitions:
Accessories:
1) With zero self-check function, it is convenient for users to maintain and use;
2) Illegal entry has an alarm prompt function;
3) Anti-shock function, when the opening signal is not received, the telescopic baffle (swing arm) is automatically locked;
4) Infrared/mechanical dual anti-pinch function, when the telescopic baffle (swing arm) encounters resistance during the reset process, the motor will automatically stop working within the specified time, and the strength is very small, and an alarm signal will be issued at the same time;
5) With automatic reset function, after the pedestrian reads the valid card, if the pedestrian does not pass within the specified time, the system will automatically cancel the pedestrian's permission to pass this time;
6) A unified standard external electrical interface, which can be connected to a variety of card readers, and can be remotely controlled and managed through the management computer;
7) The entire system runs smoothly with low noise.
