4 Independant Door People entrance TCP/ IP RFID Door Access Control System
Description and features:
|English Software supportable database:||SQL|
|Power Supply||12VDC; 4-7A|
|Power Consumption of Circuit Board||Less than 100mA|
|Input Format of Reader||Wiegand 26/34 bit (All card reader with compatible protocol, such as Motorola , HID, EM , Mifare one etc)|
|Quantity of Readers||4 Pcs|
|Description||Control 2 door, get in and out door by swiping card, or get in by swiping card and get out door by button|
|Door opening time extending setting||1-600 Seconds(adjustable)|
|Max q ' ty of controller||Unlimited|
|Operation Humidity||10-90 % RH ,No Condensation|
|Q ' ty of users||20,000 Users|
|Q ' ty of Event Buffers(offline)||100,000 Event Buffers|
|Power interruption protection measure||High Speed Memory, Records never lose|
|Max Distance from Reader to Controller||100M (suggestion distance 80m)|
|Max Distance between Controllers||Depand on network range|
|Collocations||PCB board, case, power, power line, serial port communication line, software, manual, certificate, key(2pcs), carton|
|Alarm for long time door open, ilegal break in, intimidate||Yes|
|Fire and alarm linkage||If no connection with the expansion board, only has software interface alarm, and drive the computer speaker. If connected with expansion board, is able to alarm by hardware If connected with strengthened expansion board, then is able to Security alarm.|
.4 Four door Ethernet network access controller
• Wiegand 26bits ~ 40 bits input
• 20,000 users; 100,000 event buffers
• Time & Attendance reporting
• Database: Access and SQL
Control 4 doors, readers in and exit button for out
Diagram Picture for reference:
Features and Advantage:
l Hair-finished housing surface, dustproof and rainproof design for outdoor use.
l Durable DC brushed motor, highly integrated mechanism, 100% heavy duty operation.
l Sufficient infrared sensors for protection, anti-intrusion, and anti-tailgating.
l Able to integrate with other access control system, support ID/IC,barcode ticket,fingerprint,face recoginition etc to open or close
l Convenient installation and maintenance.
1. Reply your inquiry in 12 hour
2. Professional staff answer your questions .
3. Distributors or agents in special policies supports.
4. Customized design is available, OEM & ODM acceptable
5. Unique Technical Assistance can be solutioned by our professional engineer
Established in 2003, Shenzhen SEWO is dedicated in developing and producing car parking system, pedestrian gate system and door access control system for more than 12years, products including barrier gates, turnstiles, flap barriers, swing gates and so on..

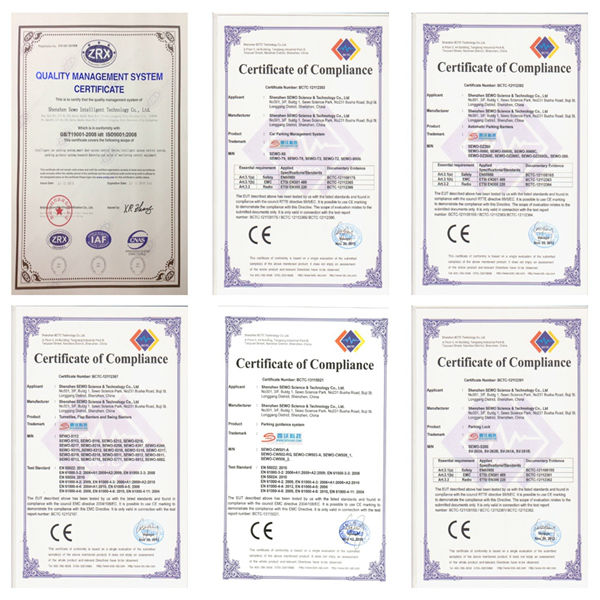

Our products are competitive in design, craftsmanship, quality and cost performance. After a decade of efforts in intelligent system applications, we have made great achievement on the basis of the traditional rules, Our company is ISO 9001 approved and products are CE certified. We are exporting products to all over the world, like Russia, USA,Pakistan, Chile, Colombia etc... and attending at some famous security shows, such as Intersec, HK Secuirty Fair etc..
