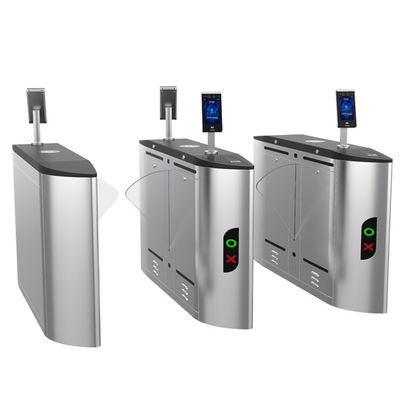

Automatic Retractable Turnstiles Pedestrian Flap Barrier Gate Systems
SUS304 brushed stainless steel, top cover 2.0mm, whole body 1.5mm
Swing gate material
12mm thickness PC
Mean Cycles Between Failure
5 million times
IP24(if used outdoor, recommend to build a canopy)
Single Core 35w, dual core 60W
DC brushless motor
Method of position
Input / Output signal
dry contact signal input, 6-pair infrared sensor
Product Key Features:
The lanes can be configured for entry, exit or bi-directional access.
The acrylic will retract upon receiving valid signal and close immediately after the pedestrian crosses.
The side hinge door provides an easy avenue for maintenance .
Customization to include card reader, biometric finger print, ticket collection etc., is possible.
Each lanes comes with Infrared (IR) beam sensor to ensure safe access. It can be extended to detect 3 levels of heights, including height of children, which are lower.
The motor will disengage when an object tires to block the flap from closing, providing an additional safety mechanism for the pedestrian.
Product Dimension: Application:
Widely used in commercial and management office buildings, ministries, government service halls, public buildings, banks and financial institutions, airports, hotels, clubs, high-end residential areas, schools, colleges and universities, industrial facilities, etc.
Automatic reset function:The turnstile will open swing gate after receiving the valid opening signal when standby. The swing gate will return to the hindered zero position automatically under the following situation:
Within the allowed time, pedestrians have been detected to pass through the passageway in specified direction;
Over the allowed time, there is no people passing through the passageway
Self-recovery function: The swing gates do not return to the hindered zero position because of human intervention. After revoking human intervention, the gate automatically return to the hindered zero position.
Automatic adjustment function: When the turnstiles need to re-adjust because of mechanical wear, the main control board can adjust automatically, accurately and conveniently
Memory function: Can count the number of person and passing times
Passing indication function:
Direction indicator: The direction indicator is installed on the top of the housing cabinet to indicate the valid passing direction.
Passing status indicator: It is installed inside the housing cabinet side, indicating whether the swing gates can open after receiving valid open signal.
Compatibility: Equipped with the dry contact signal input interface, RS485 interface.
Security Design Function
Self-check function when power on: The system will self-check routinely and alarm when the power is on, and intelligently detect the key hardware and function. Find the hidden danger within the shortest time!
Emergency EXIT: Adopt the leading mechanical structure by original creation; the system will open swing gate automatically when power off or manually push the gate to be open so as to evacuate people conveniently, which meets the firefighting requirement.
Anti-collision function: When the gate is locked, it can support the impulse force within the safety range. The gate can be manually pushed slowly when the impulse force is over the safety range, so as to protect the mechanism. After revoking human intervention, swing gate automatically return to the hindered zero position.
Intelligent linkage alarm: Illegal traffic events can be linked with other alarm monitoring equipment: such as access control systems, video management systems. Also the following situations will be alarmed: tailgating, reverse passing, invalid entering, etc.
