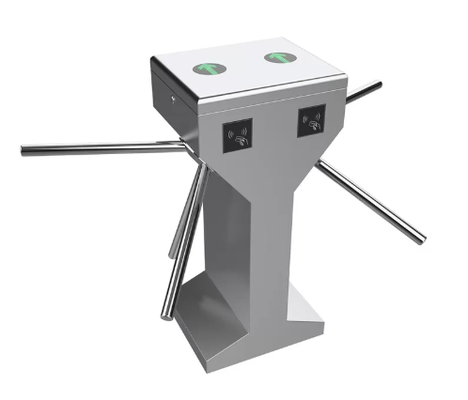

Good quality Tripod Turnstile Gate for sales
Good quality Tripod Turnstile Gate for sales
Customer Reviews
We have collaborated with Sewo for many years. They finished our products in high quality. Very technical and experienced team.

—— Ponce Lefebvre

Sewo is a good partner. Very good product and good service, very fast delivery.

—— Sumitra Rathi

We are a big wholesaler in Saudi Arabia. The products of Sewo are high quality with reasonable price. Good luck!

—— Ali Mohamed

I'm Online Chat Now

TCP and IP 4 Door Access Controller Multi Door RFID Gate Access Control System

China TCP and IP 4 Door  Access Controller  Multi Door RFID Gate Access Control System supplier

Large Image :  TCP and IP 4 Door Access Controller Multi Door RFID Gate Access Control System

Product Details:

Place of Origin: China
Brand Name: SEWO
Certification: CE,IS9000
Model Number: SEWO-M4000IPL

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: Standard Exporting Wooden Case
Delivery Time: 1-2working days for sample order, for bulk order it can be discussed
Payment Terms: T/T, Western Union, Paypal, L/C
Supply Ability: 500pcs per month
Contact Now
Detailed Product Description
Size: 160mm * 106mm Working Voltage:: AC10V/20W±10%(DC12V/1A±10%)
Working Temperature:: -30°C ~ +70°C Working Humidity:: ≤95% Non-condensing
Reading Distance:: 2-6cm Communication Interface:: RS485(can Be Extensible Connect With TCP/IP)
Data Transmission Rate:: 4800Bps





TCP and IP 4 Door Access Controller Multi Door RFID Gate Access Control System







Specifications :





Items Parameters
Model 1000IPL/2000IPL/4000IPL
Readers 2 / 4 / 8
Door Controlled 1 / 2 / 4
Card Type 125KHZ / 13.56MHZ
Communication Mode TCP/IP
Input Signal Wiegand 26/34
User Capacity 10.000
Card Storage Records 20.000
Offline Records 100.000
Working Voltage 12V/DC
Power Dissipation 160mA --200mA





Description and features:



  • Multi opening modes, advanced password opening, card +password opening, legal card opening , button , four opening modes, more safe and convenient.
  • It can run offline, when it’s offline, it can read card normally and record the card information. When it’s online, all the information can be collected by the manage computer.
  • It has protection measures when the power is cut off, over current, over voltage, short circuit, polarity reversed etc.
  • With ability of magnetic input, it can detect the state of the door
  • With write card and store the password information, it is detected the validity when card is read.
  • offline data storage time: more than ten years .
  • professional anti-static and anti-interference design
  • outstanding quality, and waterproof totally .
